Currie 1 Ton Ball Joint Set – CE-0005IKBJ

Currie

Shop Currie Axle Ball Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits iron 1 ton knuckles and Currie aluminum 1 ton knuckles
  • Part number CURCE-0005IKBJ, upper and lower ball joint kit
  • Upper joint has nut and cotter pin; lower joint has nut only
  • One set covers one knuckle, right or left
  • Universal fit tag; no vehicle year, make or model named

Description

Overview

The Currie 1 Ton Ball Joint Set, part number CURCE-0005IKBJ, is an upper and lower ball joint kit for one knuckle on Currie 1 ton front ends. It fits the iron 1 ton knuckle and the Currie aluminum 1 ton knuckle used in Currie 1 ton front-end applications.

The set works on either the right or left knuckle. The joints are not lubeable.

Key features

  • Upper and lower ball joints in one set for a single knuckle
  • Fits iron 1 ton knuckles and Currie aluminum 1 ton knuckles
  • Works on either the right or left knuckle
  • Upper ball joint supplied with nut and cotter pin
  • Lower ball joint supplied with nut, no cotter pin needed
  • Not lubeable

Replacing one knuckle’s joints

Ball joints connect the steering knuckle to the control arms and let the wheel pivot while the suspension moves. On a 1 ton front end they carry heavy loads, so wear appears as looseness at the steering wheel and uneven tire wear before a joint fails. Before pulling a knuckle, inspect the other joints on the same arm and the tie rod ends, since worn parts are often replaced in the same job.

Because this set covers one knuckle, plan the job one side at a time. If the opposite knuckle shows similar play, a second set keeps both sides matched. Clean the knuckle bore and seats before pressing in new joints, then check that each joint moves freely and that the dust boots are intact.

  • Play at the stud with the wheel lifted
  • Torn or cracked dust boots
  • Wear or scoring in the knuckle bore

Specifications

Brand Currie
Part number CURCE-0005IKBJ
Type Ball joint kit, upper and lower
Lubeable No
Knuckle compatibility Iron 1 ton and Currie aluminum 1 ton
Coverage One knuckle
Fitment tag Universal fit

Vehicle fitment

It is a universal fit set for Currie 1 ton front-end knuckles, either iron or Currie aluminum.

Match the knuckle type rather than a vehicle: confirm yours is an iron or Currie aluminum 1 ton unit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The upper joint uses a nut and cotter pin, while the lower joint uses only a nut, so have a cotter pin ready for the upper joint.

What’s included

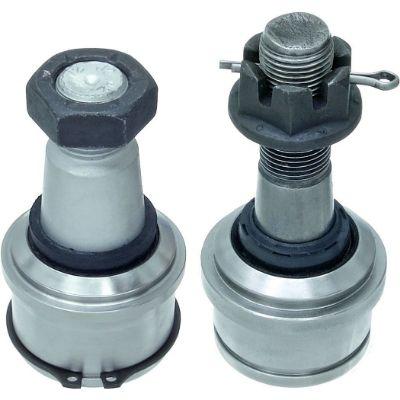

One upper ball joint with nut and cotter pin, and one lower ball joint with nut. The set covers one knuckle.

Questions & Answers

Does the Currie CURCE-0005IKBJ set fit Currie aluminum 1 ton knuckles?

Yes. It fits the iron 1 ton knuckle and the Currie aluminum 1 ton knuckle used in Currie 1 ton front-end applications. It is one set for one knuckle and works on either the right or left side.

What is included in the Currie 1 ton ball joint set?

One upper ball joint with nut and cotter pin, and one lower ball joint with nut. The lower joint does not need a cotter pin. The set covers one knuckle only.

Is the Currie CURCE-0005IKBJ lubeable?

No. The joints are not lubeable, so they should not be treated as joints with a grease service interval. Check the joints for play during routine front-end inspections instead.

Which vehicles does this ball joint set fit?

It is a universal fit set for Currie 1 ton front-end knuckles. Confirm your knuckle is an iron or Currie aluminum 1 ton unit, and confirm your vehicle's year, model and trim before ordering.

How can I tell if these ball joints need replacing?

Look for play at the stud, clunking over bumps, steering wander and uneven tire wear. Lift the front end on stands and check each joint for movement with a pry bar, or have a shop inspect it. Replace worn joints before they fail, since a failed joint can separate the knuckle from the control arm.
