Currie 1 Inch -14 Threaded Bung With Jam Nut – LH Thread – CE-9113BL

Currie

Shop Currie Tube Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9113BL 1 inch -14 left hand weld-in bung with jam nut
  • Minimum tube inside diameter 1-1/4 inch
  • Universal fit; jam nut included

Description

Overview

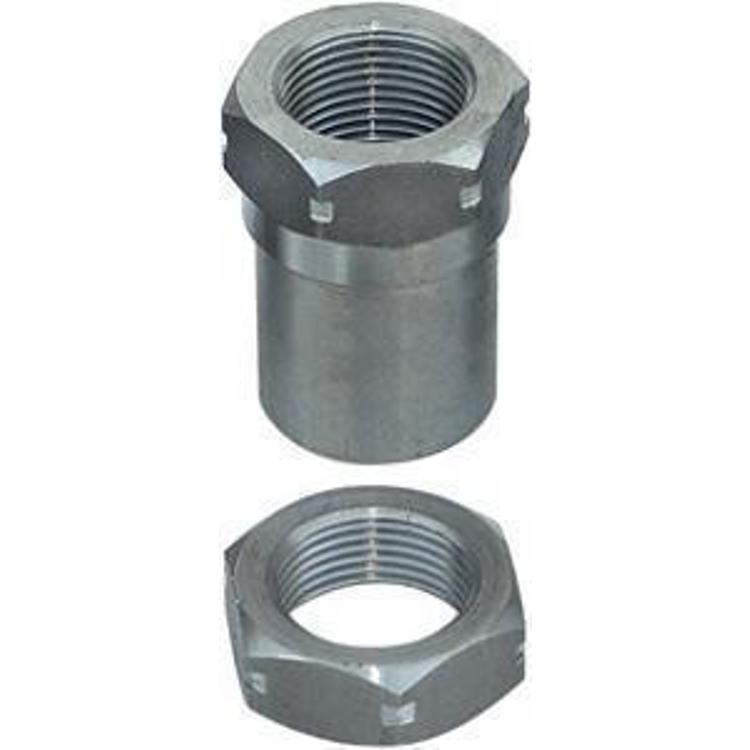

The Currie CE-9113BL threaded bung with jam nut is a 1 inch -14 left hand thread weld-in bung. It is made for forged Johnny Joint rod ends or any other 1 inch thread rod end, and it is sold each.

Left hand threads run opposite to right hand threads, so a left hand bung pairs with a right hand part when a link needs opposing ends. The hex shape helps with bar adjustment, and a custom machined jam nut of the same hex size is included. The bung is designed for a tube with a 1-1/4 inch inside diameter. No vehicle is named, since the bung is a custom build part.

Key features

  • Left hand 1 inch -14 thread
  • Weld-in design, not a bolt-in part
  • Hex shape that eases bar adjustment
  • Custom machined jam nut included
  • Minimum tube inside diameter 1-1/4 inch
  • Sold each

Matching opposing ends

Opposing rod ends let a link adjust in both directions as the bar is turned. Left hand and right hand parts are paired so that rotating the link shortens one end while lengthening the other. Before welding, mark which side of the link receives each thread so the ends are not reversed during assembly.

Weld-in parts need clean metal and steady heat. Remove paint and rust from the tube where the bung sits, and tack the bung in place before finishing the weld. Check that the threads still turn freely after the tube cools, and keep the jam nut on until final alignment is complete.

  • Mark each end before welding
  • Clean metal where the bung sits
  • Check thread movement after cooling

Specifications

Brand Currie
Part number CE-9113BL
UPC 70000410802
Thread size 1 inch -14
Thread direction Left hand
Minimum tube ID 1-1/4 inch
Jam nut Included
Sold Each
Fitment Universal fit

Vehicle fitment

It is universal fit, not a vehicle-specific part. Its use depends on the tube it is welded into and the left hand rod end threaded onto it.

Confirm the thread direction on the rod end is left hand before welding, since a right hand end will not match.

Installation notes

Check the thread direction and the tube size before welding, because the bung is not designed to be bolted in. Weld only into tubing at least 1-1/4 inch inside diameter.

What’s included

One left hand weld-in bung with its custom machined jam nut, sold each.

Not included: the tube and the matching rod end.

SKU: CURCE-9113BL Category:

Specification

Shipping weight 0.45 lbs
Package dimensions 3.50 × 1.50 × 1.50 in
brands

Questions & Answers

Is CE-9113BL a left hand thread?

Yes. Its thread direction is left hand and its size is 1 inch -14. Confirm the rod end you plan to use is also left hand before welding.

Does the CE-9113BL include a jam nut?

Yes. A custom machined jam nut of the same hex size as the bung comes with it. The bung itself is sold each.

What is the minimum tube size for this bung?

The minimum tube inside diameter is 1-1/4 inch. The bung is a weld-in part, so confirm the tubing is at least that size before welding it in.

How do I know which end of a link to weld the left hand bung into?

Use the end that needs to shorten when the link is adjusted in the direction you plan. Test-fit the rod end before welding, then confirm the rotation moves the link the way you expect.
