Mountain Off Road Enterprises Tube End Inserts – TE12L

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mountain Off Road Enterprises TE12L, 3/4 inch -16 left hand tube end insert
  • Minimum tube inside diameter 7/8 inch
  • Universal fit; jam nut not included

Description

Overview

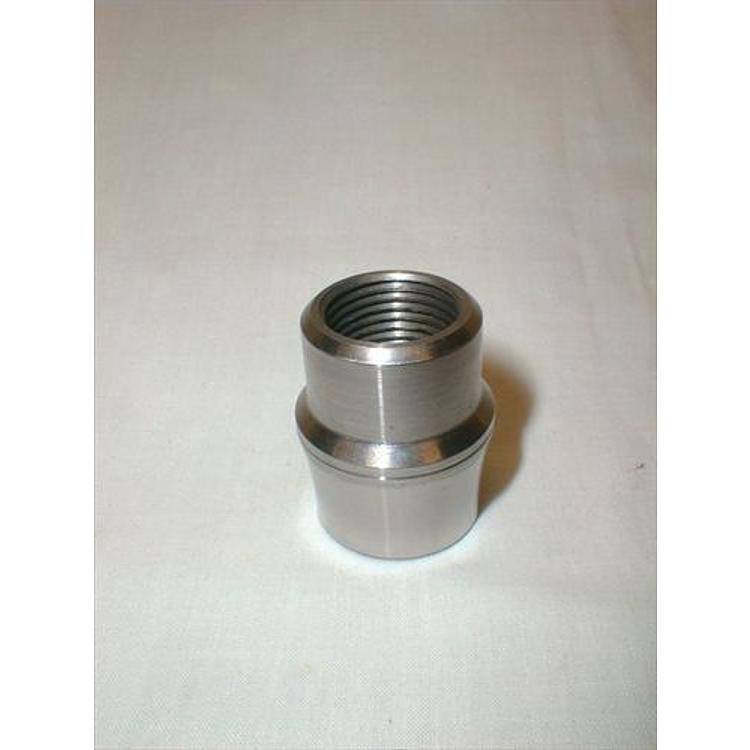

The Mountain Off Road Enterprises TE12L is a 3/4 inch -16 left hand tube end insert for steel tubing. Welded in, it gives a threaded end for custom work such as radius arms, link bars, tie rods or track bars. A left hand thread runs the opposite direction to a right hand thread, so check each end of a link before welding.

The brand describes its range as covering the most popular sizes. The minimum tube inside diameter is 7/8 inch, and no jam nut comes with it, so you will need one separately. Because the insert is a custom build part, no vehicle is named.

Key features

  • 3/4 inch -16 left hand thread
  • Weld-in tube end for steel tubing
  • Minimum tube inside diameter 7/8 inch
  • Jam nut not included
  • Designed for the most common tube end sizes

Left hand threads in custom links

Left hand threads are used where a link needs to adjust in the opposite direction from a right hand end. Pairing a left hand insert with a right hand part gives a link that can be shortened or lengthened by turning the bar. Label the ends during fabrication so the two sides are not mixed up.

The minimum tube inside diameter sets the smallest tubing that can take the insert. Choose tubing that is clean, round and free of dents at the weld point. Inspect the threads and the weld after the first trail runs, and check that the jam nut stays tight once the link is in service.

  • Label left and right ends during build
  • Use round, undamaged tubing
  • Inspect welds after early use

Specifications

Brand Mountain Off Road Enterprises
Part number TE12L
UPC 70000503389
Thread size 3/4 inch -16
Thread direction Left hand
Minimum tube ID 7/8 inch
Jam nut Not included
Attachment Weld to steel tubing
Fitment Universal fit

Vehicle fitment

It is universal fit and not vehicle-specific. Fit depends on the steel tubing and the left hand rod end used in your build.

Installation notes

Confirm the left hand thread matches the rod end, since a right hand end will not thread onto it. Weld only to tubing with an inside diameter of at least 7/8 inch.

What’s included

One left hand tube end insert, 3/4 inch -16 thread.

Not included: the jam nut, tubing and rod end.

SKU: MRETE12L Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 5.00 × 5.00 × 5.00 in
brands

Questions & Answers

What thread does the TE12L use?

It uses a 3/4 inch -16 left hand thread. It is universal fit, so the tubing and rod end you choose determine the final assembly.

Does the TE12L come with a jam nut?

No. A jam nut is not included, so one needs to be supplied separately to lock the rod end once it is threaded in.

What tubing size works with the TE12L?

The minimum tube inside diameter is 7/8 inch. The insert welds to steel tubing, so check the tube size before welding it in place.

Can a left hand insert be used with a right hand rod end?

No. A left hand insert needs a left hand rod end, since a right hand rod end will not thread onto it. Confirm the thread direction on the rod end before fitting or welding anything.
