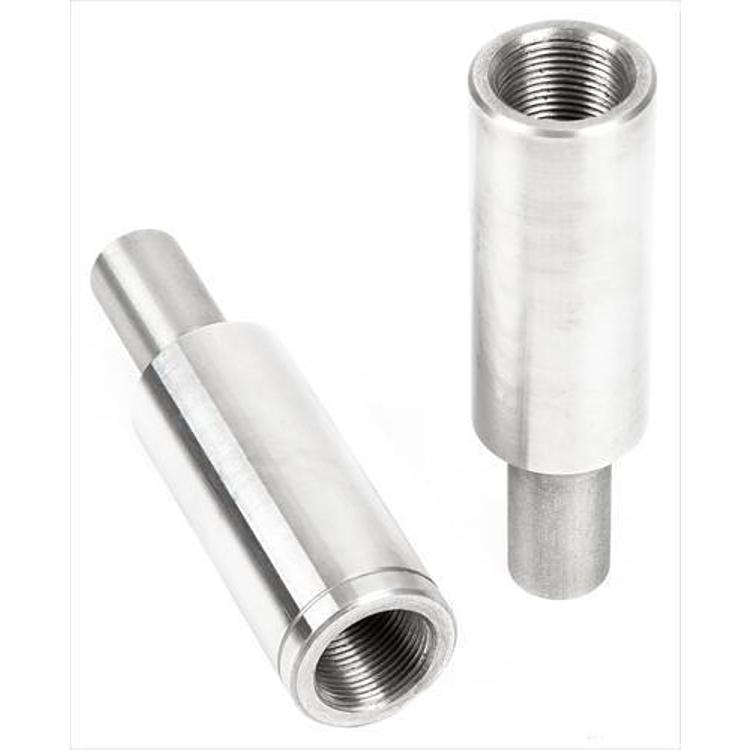

Trail Gear Steering Rod Bungs – 130320-KIT

Trail Gear

Shop Trail Gear Tube Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Weld-in steering rod bung for Heim and Johnny Joints
  • 3/4 inch-16 left hand thread
  • Requires tubing with a minimum 1-1/4 inch ID
  • Jam nut not included
  • Part number 130320-KIT

Description

Overview

The Trail Gear 130320-KIT is a weld-in bung for steering rods, designed to take Heim and Johnny Joints. It has a 3/4 inch-16 left hand thread and needs tubing with a minimum 1-1/4 inch inside diameter.

A bung is a threaded fitting welded into the end of a tube, so a joint can be threaded in and locked. Confirm the steel grade, wall thickness and overall dimensions against your build before welding.

Key features

  • Weld-in bung for a custom steering rod
  • Designed for Heim and Johnny Joints
  • Left hand thread direction, 3/4 inch-16
  • Requires tubing with a minimum 1-1/4 inch inside diameter

Setting up the joint

A steering rod end only works as well as the bung it threads into. The joint needs to seat fully and sit square to the tube, so the threads carry the load instead of the weld. Before cutting the tube, decide on the rod length and the joint angle, since a bung welded at the wrong angle can bind through the steering arc on the trail.

Steering rods take repeated load from every bump, so inspect the weld and the threads regularly. Look for hairline cracks around the bung, grit in the threads, and any play at the joint. Grease the joint if it has a fitting, and replace a worn rod end before it lets the axle wander. Recheck the jam nut after the first few trail runs.

Specifications

Brand Trail Gear
Part number 130320-KIT
UPC 70000621337
Thread size 3/4 Inches – 16
Thread direction Left hand
Minimum tube ID 1-1/4 Inches
Jam nut Not included
Fitment Universal fit

Vehicle fitment

No vehicle is named, and the bung is marked universal fit. Because it is welded into a custom steering link, suitability depends on the build rather than a specific model.

Confirm the joint thread matches the 3/4 inch-16 left hand bung before assembly. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use tubing with at least a 1-1/4 inch inside diameter, and check the joint thread against the bung before you weld.

What’s included

One weld-in bung, part number 130320-KIT, as sold under the KIT name.

Not included: Heim or Johnny Joints and a jam nut. Check the package contents against your installation before starting.

SKU: TGI130320-KIT Category:

Specification

Shipping weight 0.80 lbs
Package dimensions 7.50 × 7.50 × 3.50 in
brands

Questions & Answers

What is the Trail Gear 130320-KIT?

It is a steering rod bung from Trail Gear, a weld-in fitting with a 3/4 inch-16 left hand thread. It is designed for Heim and Johnny Joints, which thread into the bung once it is welded to tubing.

What tube size does the 130320-KIT need?

The minimum tube ID is 1-1/4 Inches. Use tubing at or above that inside diameter, and confirm the tube suits the build before welding the bung in place.

Is a jam nut included with the 130320-KIT?

No. A jam nut is not included, so plan to source one separately. Check the package contents against your installation before starting.

Is the 130320-KIT made for a specific vehicle?

No vehicle is named, and Trail Gear marks it universal fit. The bung is a custom build part, so confirm the joint and thread suit your steering layout instead of relying on a model name.

Should the bung be welded by a professional?

Not required, but the weld must be complete and even around the bung. A weld that is cracked or undersized will fail under steering load, so inspect it closely before driving.

Can a Heim joint be used with a bung that is already welded?

Yes, as long as the joint thread matches the 3/4 inch-16 left hand bung. Thread it in fully, set the length, and tighten the jam nut against the bung so the joint cannot back out.
