Overview

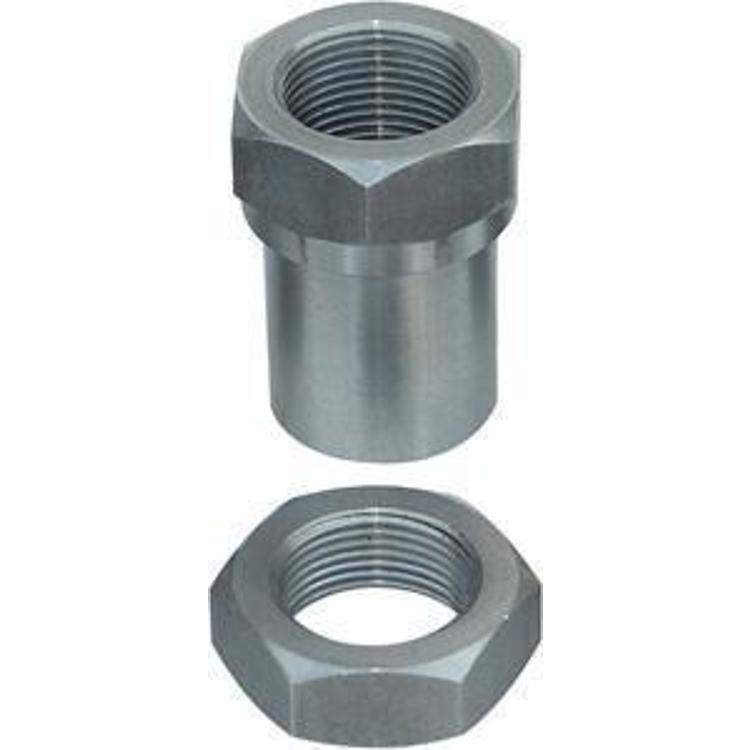

The Currie 1-1/4 inch -12 threaded bung with jam nut, part number CE-9114B, is a weld-in right hand thread bung for forged Johnny Joint rod ends or any other 1-1/4 inch thread rod end. It is custom machined from steel and sold each.
The bung has a hex shape, not a round one, which makes bar adjustment easier. A matching hex jam nut is included. It is designed to fit inside a tube with a 1-1/2 inch inside diameter, so it suits custom bar builds in that tube size. It is not vehicle-specific.
Key features
- Right hand 1-1/4 inch -12 thread
- 2-1/2 inch of threads
- Hex shape for ease of bar adjustment
- Custom jam nut with the same hex size is included
- Fits inside a tube with a 1-1/2 inch minimum inside diameter
- CNC machined steel construction
- Must be welded in place
Planning a weld-in bung build
A weld-in bung is a permanent part of a bar build, so the planning happens before the torch is lit. Set the tube and the bung position first, confirm the rod end will reach the mounting point, and check that there is room for the jam nut to tighten against the bung body. Mock up the assembly before welding so the thread lines up when the bar is adjusted.
Good weld prep matters for a bung that carries steering or suspension loads. Clean the tube and bung seat, fit the bung square to the tube, and weld evenly around the full seam. Let the joint cool before the rod end is threaded on. After a build, inspect the weld for cracks and check that the jam nut is snug before each trip.
- Dry fit before welding
- Clean the seat area of mill scale and paint
- Re-check the jam nut before each trip
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9114B |
| UPC | 70000411121 |
| Thread size | 1-1/4 inch -12 |
| Thread direction | Right hand |
| Thread length | 2-1/2 inch |
| Minimum tube ID | 1-1/2 inch |
| Jam nut | Included |
| Material | CNC machined steel |
| Installation | Must be welded |
| Sold | Each |
Vehicle fitment
The bung is not a vehicle-specific part. It is a weld-in component for custom builds, so suitability depends on the tube you weld it into and the rod end you thread onto it.
Confirm the tube inside diameter is at least 1-1/2 inch and the rod end is 1-1/4 inch -12 right hand before welding.
Installation notes
Confirm the thread and tube size first, since this bung must be welded in place rather than bolted.
What’s included
One right hand weld-in bung with a custom machined jam nut, sold each.
Not included: the tube and the rod end, which need separate parts.
