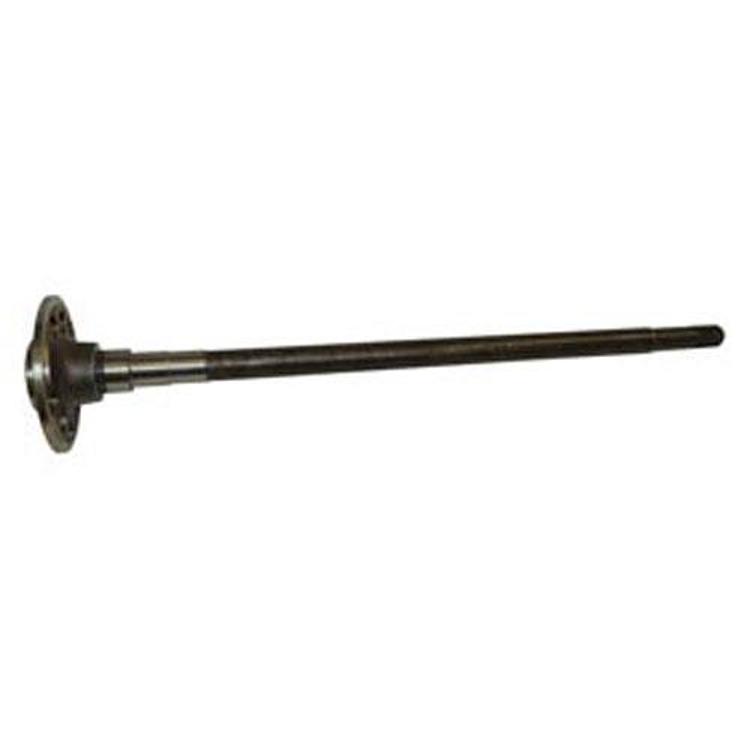

Crown Automotive Dana 35 YJ/XJ Rear Driver Side Axle Shaft – 53000403

Crown Automotive

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1984–1989 Jeep XJ, 1986–1989 Comanche and 1987–1989 YJ
  • Dana 35 flanged rear driver side shaft, 30.35 inches
  • 27 splines

Description

Overview

The Crown Automotive 53000403 is a flanged Dana 35 rear driver side axle shaft, 30.35 inches long with 27 splines. It fits the 1984–1989 Jeep Cherokee XJ, the 1986–1989 Comanche and the 1987–1989 Wrangler YJ, in the rear left position.

Coverage runs only through the 1989 model year, so owners of later XJ, Comanche or YJ models need a different shaft number. On a Dana 35 the driver side shaft is the longer of the two, so length and side must match. Check the spline count and flange style against your old shaft before ordering, since a non-flanged shaft will not bolt up the same way.

Key features

  • Driver side rear axle shaft
  • Flanged style, 30.35 inches long
  • Dana 35 rear axle, 27 splines
  • Position given as rear left
  • Classed by Crown Automotive as a direct fit

Matching a replacement axle shaft

An axle shaft transfers torque from the differential to the wheel hub, so it has to match the axle housing, the spline count and the flange pattern at the hub. On a Dana 35 rear axle, the shaft also runs through the bearing and seal at the housing end, so the seal surface and bearing condition matter as much as the shaft itself. A shaft that twists, has rounded splines or shows heat marks near the flange should be replaced before it fails on the trail.

Before buying a replacement, measure the old shaft and compare the length, the spline count and the flange style with the new one. Look at the axle housing for oil leaks and check the wheel bearing for play, since a worn bearing can damage a new shaft quickly. Replacing the seal at the same time is a sensible step, and clean the splines before fitting.

  • Measure overall length before ordering
  • Inspect the axle housing seal for leaks
  • Check the wheel bearing for play before fitting

Specifications

Brand Crown Automotive
Part number 53000403
UPC 848399016611
Axle manufacturer Dana
Shaft location Driver Or Passenger
Axle position Rear
Axle type Dana 35
Position Rear Left
Spline count 27 Splines
Length 30.35 inches
Style Flanged

Vehicle fitment

Crown Automotive lists three vehicles for the 53000403, all ending in 1989.

  • 1984–1989 Jeep Cherokee (XJ) (Base, Chief, Laredo, Limited, Pioneer, Sport)
  • 1986–1989 Jeep Comanche (Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS)
  • 1987–1989 Jeep Wrangler (YJ) (Base, Islander, Laredo, S, Sahara, Sport)

The XJ, Comanche and YJ are covered only through 1989, and the TJ is not covered. Later years of these models need a different shaft. Confirm your vehicle’s year, model and trim before ordering.

SKU: CRO53000403 Category:

Specification

Shipping weight 18.20 lbs
Package dimensions 30.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1989Base, Chief, Laredo, Limited, Pioneer, Sport
Jeep Comanche1986–1989Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS
Jeep Wrangler (YJ)1987–1989Base, Islander, Laredo, S, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What does the Crown 53000403 fit?

It fits the 1984–1989 Cherokee XJ, the 1986–1989 Comanche and the 1987–1989 Wrangler YJ, as a rear driver side Dana 35 shaft.

How long is the 53000403?

30.35 inches. It is a flanged shaft with 27 splines for the driver side of the Dana 35 rear axle.

Which side is the 53000403 for?

The driver side of the rear axle. Crown Automotive gives the position as rear left, and the passenger side shaft for the Dana 35 is a separate, shorter part.

Should the other axle shaft be replaced at the same time?

Not always. If only one shaft is damaged, the other can stay in service when it has no play, cracks or leaks. Check its bearing, seal and spline wear before deciding, and make sure the replacement matches the side you are fitting.
