Overview
The CSK-C3-17-1 is a 6 to 8-inch lift for the 2011-2015 Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD in the models shown. It uses the STL high clearance design, introduced for 2011 and newer 2500 HD trucks.
The kit includes front lift spindles, a subframe bracket, a steering center link, a heavy duty skid plate, front and rear sway bar links, rear lift blocks, a U-bolt kit and hardware. Shocks are not included.
Key features
- 6 to 8-inch lift
- STL high clearance design
- Front lift spindles
- Subframe bracket
- Heavy duty skid plate
- Front and rear sway bar links
- Steering center link
Front geometry after a lift
The front end carries most of the change from a lift. Lift spindles, the subframe bracket and the steering center link all set how the wheels track and how the steering feels, so they are worth inspecting as a group. After the work is finished, look for steering wander, uneven tire wear or a tire that rubs at full lock.
A heavy duty skid plate protects the underside but adds weight to the front, so it is best to check how it sits after the first rough trail. Sway bar links are a common wear point on lifted trucks, and a loose link often shows up as a rattle over bumps. Replacing links in pairs keeps the front balanced.
- Torque subframe and spindle fasteners after the first drives
- Check the skid plate for cracks and loose hardware
- Inspect sway bar link bushings for play
- Keep tire rub and steering wander in mind when setting alignment
Specifications
| Brand | California Super Trucks |
|---|---|
| Part number | CSK-C3-17-1 |
| UPC | 70000678283 |
| Lift height | 6 to 8 inches |
| Lift height range | 7 inches and up |
| Suspension type | Knuckle |
| Rear lift method | Rear lift blocks, U-bolt kit |
| Shocks | Not included |
Vehicle fitment
The manufacturer fitment list covers the 2011-2015 Chevrolet Silverado 2500 HD and the 2011-2015 GMC Sierra 2500 HD, in the models shown on the list.
It fits the 2011-2015 Silverado 2500 HD and Sierra 2500 HD listed. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The subframe bracket and the steering center link are part of the front geometry, so check the steering and the alignment once the lift is complete.
What’s included

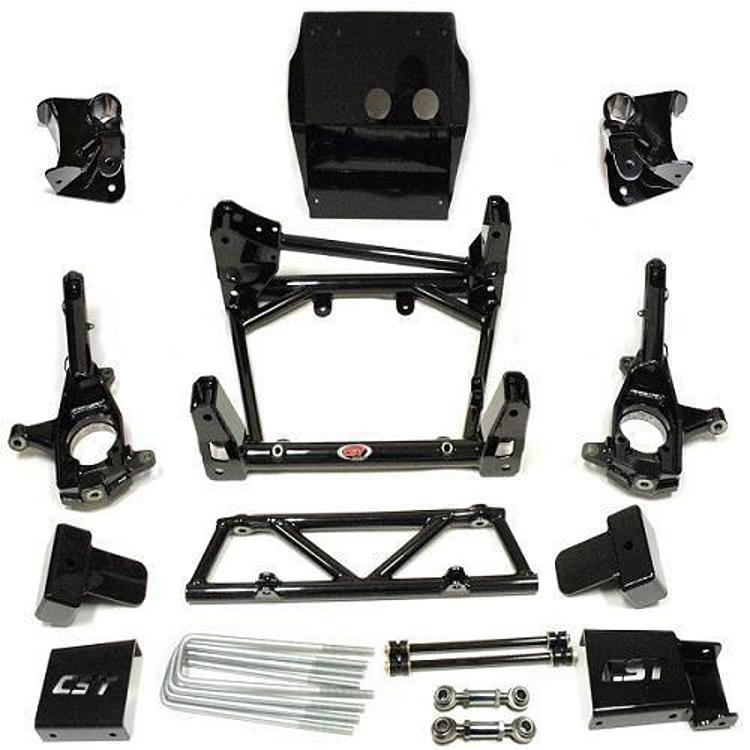

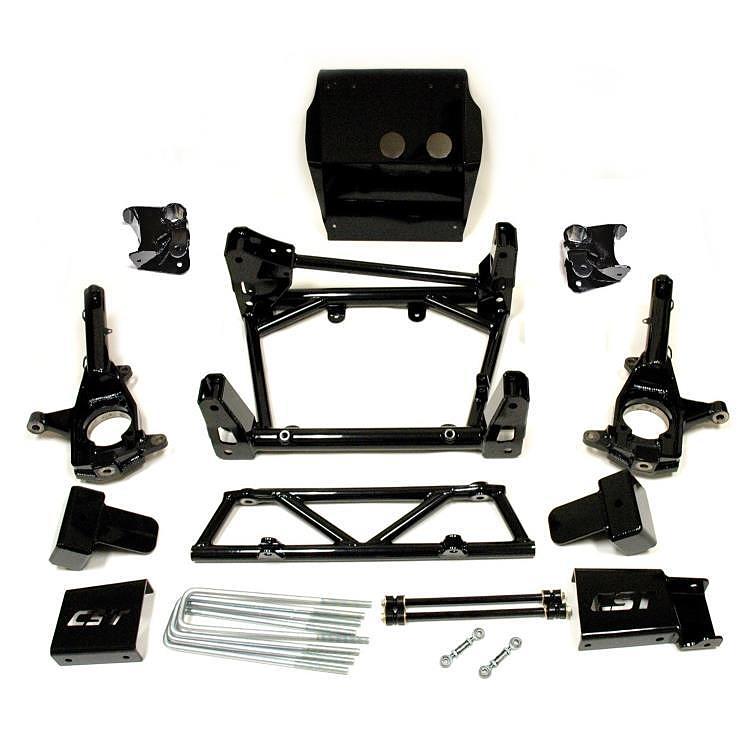

Subframe bracket, front lift spindles, steering center link, heavy duty skid plate, front and rear sway bar links, rear lift blocks, U-bolt kit and hardware kit.
Not included: shock absorbers.
