Overview

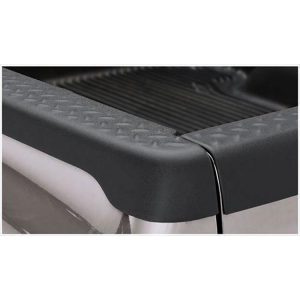

The Bushwacker Diamondback Ultimate BedRail Cap, part number 49501, is a Diamond Plate style bed rail protector for 1999–2007 Chevrolet Silverado and GMC Sierra pickups. It covers the top edge of the bed to help guard against dents, dings and scratches. It has an OEM matte black finish and a Diamond Back textured surface.
Bushwacker builds the cap from Dura-Flex 2000 TPO plastic that the company describes as 100% UV protected. The walls are thick, which helps absorb impact and resist warping. Each cap is engineered for the bed rail of the listed truck, so it sits with a close fit and smoothly finished edges.
Key features
- Diamond Plate style with a Diamond Back textured finish
- Dura-Flex 2000 TPO plastic that is 100% UV protected
- Thick walls to absorb impact and resist warping
- Doubly secure 3M adhesive with a screw-clip system
- No drilling required
- Made in the USA with a Limited Lifetime Warranty
Protecting the bed rail
A bed rail cap takes the wear where tools, coolers and tailgate edges rub the top of the bed. Most of the protection comes from a snug fit and a clean bond, so the mounting area matters as much as the part. Look at the rail for rust, flaking paint or old adhesive before fitting anything, because moisture trapped under the cap can cause problems later.
After installation, check the edges over time for lifting or gaps, especially after cold weather or rough drives. Wash the cap with mild soap and water and avoid strong solvents that can soften the plastic. If you later add a bed liner or tonneau cover, check that the edge clearance still lets the tailgate close and the cover seat correctly.
- Clean and dry the rail before setting the cap
- Recheck the edges after cold weather
- Use mild soap on the textured surface
Specifications
| Brand | Bushwacker |
|---|---|
| Part number | 49501 |
| UPC | 9068911331 |
| Product type | Ultimate BedRail Cap (bed rail protector) |
| Material | Plastic (Dura-Flex 2000 TPO) |
| Style | Diamond Plate |
| Finish | OEM matte black, Diamond Back textured |
| Mounting | 3M adhesive and screw-clip system, no drilling |
| Fitment type | Direct Fit |
| Made in | USA |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
It fits 1999–2006 Chevrolet Silverado 1500 (Base, LS, LT, WT and Z71), 2007 Silverado 1500 Classic (LS, LT and WT), 2001–2004 Silverado 2500 (Base, LS, LT and WT), 2001–2006 Silverado 2500 HD (Base, LS, LT and WT), 2007 Silverado 2500 HD Classic (LS, LT and WT), 2001–2006 Silverado 3500 (Base, LS, LT and WT) and 2007 Silverado 3500 Classic (LS, LT and WT). It also fits GMC Sierra 1500, 2500, 2500 HD and 3500 models from 1999–2007, each with its own trim set.
The list does not cover the 1988–2000 C and K pickups, which use part 49508, or any model year after 2007. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the cap is held by adhesive and screw clips, the bed rail is not drilled. Remove dust and wax from the rail before the cap is set, since the adhesive needs a clean surface to bond.
What’s included
The mounting hardware is the 3M adhesive and the screw-clip system. Check the package contents against your installation before starting.
