Bilstein B8 6112 Series Suspension Kit – 47-260153

Bilstein

Shop Toyota 4Runner Leveling Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front B8 6112 leveling kit for 2003–2009 Toyota 4Runner
  • Limited, SR5 and Sport trims
  • Two 60mm shocks with matched coil springs
  • Part number 47-260153

Description

Overview

The Bilstein 47-260153 is a B8 6112 front leveling kit for the 2003–2009 Toyota 4Runner in the Limited, SR5 and Sport trims. It is a front-position kit that provides 0 to 2.75 inches of front lift, depending on the application.

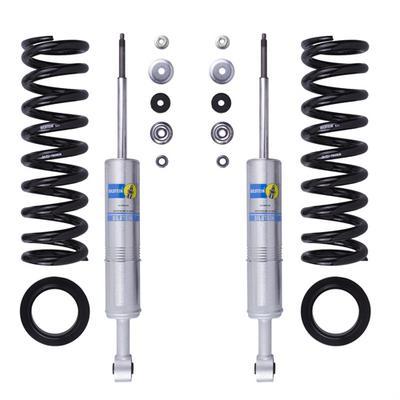

The kit has two 60mm shock absorbers, two custom matched cold wound coil springs and two billet aluminum spring seats. Snap-ring grooves in the shock body set the spring seat position, which controls the height.

Key features

  • Two 60mm shock absorbers
  • Custom matched cold wound coil springs
  • Billet aluminum spring seats
  • Snap-ring grooves for height adjustment
  • 60mm digressive piston for damping control

Setting the spring seat

The spring seat sets the front height, so it helps to plan the setting before the shocks are installed. Choose the groove that gives the lift and tire clearance you want, then confirm the seat sits square and fully seated in the groove. A seat that is not square can cause uneven height and rubbing, so check both sides before the vehicle is driven.

Because the coil springs are matched to the shocks, the seat position also changes spring preload, which affects steering and ride. Check the coil springs and spring seats for wear, and inspect the shock bodies for leaks at regular intervals. Realign the front end after any change to the seat position, and recheck after the first few drives.

  • Spring seat seated square in its groove
  • Front-end alignment after each change
  • Shock bodies for oil or leaks

Specifications

Brand Bilstein
Part number BIL47-260153
Series B8 6112
Front lift 0 to 2.75 inches, depending on application
Position Front
Fitment type Direct fit

Vehicle fitment

The kit fits the 2003–2009 Toyota 4Runner, including the Limited, SR5 and Sport trims.

The list does not cover the 4Runner from 2002 or from 2010 onward. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set the spring seat position to reach the height you want, then check the alignment after installation.

What’s included

Two 60mm shock absorbers, two coil springs and two billet aluminum spring seats.

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2009Limited, SR5, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 47-260153 fit a 2005 Toyota 4Runner SR5?

Yes. The kit fits the 2003–2009 Toyota 4Runner SR5, which includes 2005. The Limited and Sport trims are also covered for those years.

How is the height set?

The height is set by the spring seat position in the snap-ring grooves on the shock body. Moving the seat between grooves changes how much the front is raised, within the 0 to 2.75-inch range.

Does it come with shocks?

Yes. Two 60mm shock absorbers are included, along with two matched coil springs and two billet aluminum spring seats that complete the front leveling kit.

How often should the front shocks and springs be checked?

Check them at regular intervals, especially after off-road use or when the vehicle carries heavy loads. Look for oil on the shock bodies, sagging coil springs and loose spring seats. Tighten and recheck the seat position if the height changes over time.
