Overview

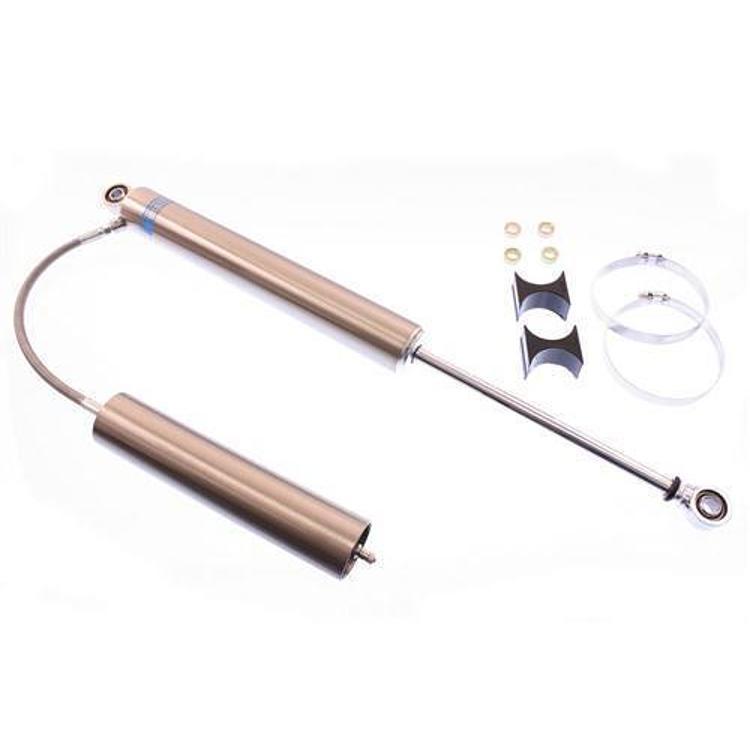

The Bilstein AK7114R06 is a 7100 Series reservoir shock absorber with gas charged construction and a 2-inch shock body. The reservoir version is the one stated in its title, and the 7100 line is offered with or without a remote reservoir.
The 7100 is designed for stock trucks, prerunners and off-road recreation. It is completely owner rebuildable and uses a high-flow piston that reduces harshness. No vehicle is attached to this part number.
Key features
- Reservoir shock in the 7100 Series
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Schrader valve with dividing piston
- Completely owner rebuildable
Reservoir shocks on working trucks
Reservoir shocks suit vehicles where heat and sustained damping demands are highest, because the separate reservoir gives the oil and gas more room. On a truck that climbs long grades or runs fast desert washes, that extra room helps the damper keep its feel through a full run.
The reservoir needs a clear mounting spot and a hose route that stays away from tires, brackets and moving suspension parts. Check mount clearance with the suspension at full compression and extension, and look for chafing where the hose passes near the frame.
Gas-charged bodies should be kept away from heat sources such as exhaust and handled with care when serviced. Routine inspection catches small leaks before they affect damping.
- Plan reservoir placement before drilling
- Protect the hose with clamps and guards
- Check reservoir mounts after rough runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | AK7114R06 |
| UPC | 790832511385 |
| Shock series | 7100 Series |
| Type | Reservoir shock absorber |
| Charge | Gas charged |
| Shock body diameter | 2 in |
| Valve | Schrader valve with dividing piston |
| Travel options (series) | 8, 10, 12 and 14 in |
Vehicle fitment
No vehicle is attached to AK7114R06. Universal fit is a general tag, and a shock is sized for a particular suspension, so confirm compatibility against your truck or Jeep before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Mounting hardware may be needed in addition to the shock, so gather it before starting.
