Overview

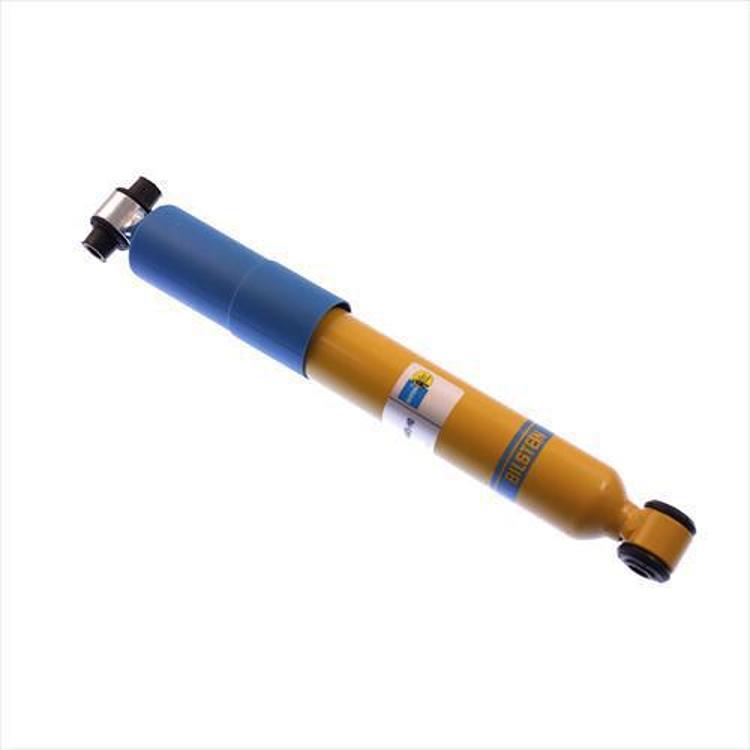

The Bilstein 4600 Series front shock absorber, part number 24-104050, is a gas charged monotube unit with a 2 inch body diameter and a yellow finish. Most of its listed applications are 1988 to 2000 Chevrolet and GMC K-series pickups and Suburbans, with the 1992 to 1994 Chevrolet Blazer, 1995 to 2000 Chevrolet Tahoe, 1992 to 2000 GMC Yukon and 1999 to 2000 Cadillac Escalade also on the list.
Bilstein’s monotube construction moves heat from the damping oil into the outer shock body, where it is released. The divider piston absorbs oil expansion as heat builds, which prevents aeration and keeps viscosity from falling off. Tube extrusion holds tight tolerances, and the piston valving lets compression and rebound be tuned separately for a controlled ride on the front axle.
Key features
- Gas charged monotube body that transfers heat from the oil to the outer shock tube.
- Dividing piston that accommodates oil expansion, reducing aeration and viscosity loss.
- Extruded tube with a tight peak-to-valley tolerance and consistent wall thickness.
- Piston head with independently tuned compression and rebound damping.
- Lift or drop is 0 in.
Choosing between front shocks
Front shocks do more than control bounce. They manage weight transfer during braking and steering, and they help keep the tires in contact with the ground over uneven terrain. On a lifted or heavier truck, the front damping works harder, so the condition of the shock affects steering feel as well as ride. Before replacing one, check whether the old unit has leaked, seized or lost its rebound control.
Front shocks on older trucks are often replaced in pairs, and their mounting studs and bushings should be checked at the same time. If the steering components or sway bar links show wear, replace those too, since loose parts change how the shock loads. Keep the boot clean and avoid driving with a leaking shock, because the damping can fade quickly once the oil is lost.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-104050 |
| UPC | 651860470108 |
| Shock series | 4600 Series |
| Position | Front |
| Shock type | Monotube, gas charged |
| Body diameter | 2 in |
| Reservoir | No |
| Lift or drop | 0 in. |
| Finish | Yellow |
| Boots included | Yes |
| Fitment type | Direct Fit |
Vehicle fitment
The manufacturer fitment list for part number 24-104050 includes these vehicles: 1999 to 2000 Cadillac Escalade (Base); 1992 to 1994 Chevrolet Blazer (Base, Cheyenne, Silverado, Silverado Sport); 1988 to 1999 Chevrolet K1500 (Base, Cheyenne, LS, Scottsdale, Silverado, Sport, WT); 1992 to 1999 Chevrolet K1500 Suburban (Base, LS, LT, Silverado); 1988 to 1999 Chevrolet K2500 (Base, Cheyenne, LS, Scottsdale, Silverado, WT); 1992 to 1999 Chevrolet K2500 Suburban (Base, LS, LT, Silverado); 1988 to 2000 Chevrolet K3500 (Base, Cheyenne, LS, Scottsdale, Silverado); 1995 to 2000 Chevrolet Tahoe (Base, LS, LT, Z71); 1988 to 1998 GMC K1500 (Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport); 1992 to 1999 GMC K1500 Suburban (Base, SLE, SLT); 1988 to 1999 GMC K2500 (Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX); 1992 to 1999 GMC K2500 Suburban (Base, SLE, SLT); 1988 to 2000 GMC K3500 (Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX); and 1992 to 2000 GMC Yukon (Base, Denali, GT, SL, SLE, SLT, Sport).
Tahoe, Yukon and Escalade years after 2000, and Blazer years from 1995 on, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included. Check the package contents against your installation before starting.
