Overview

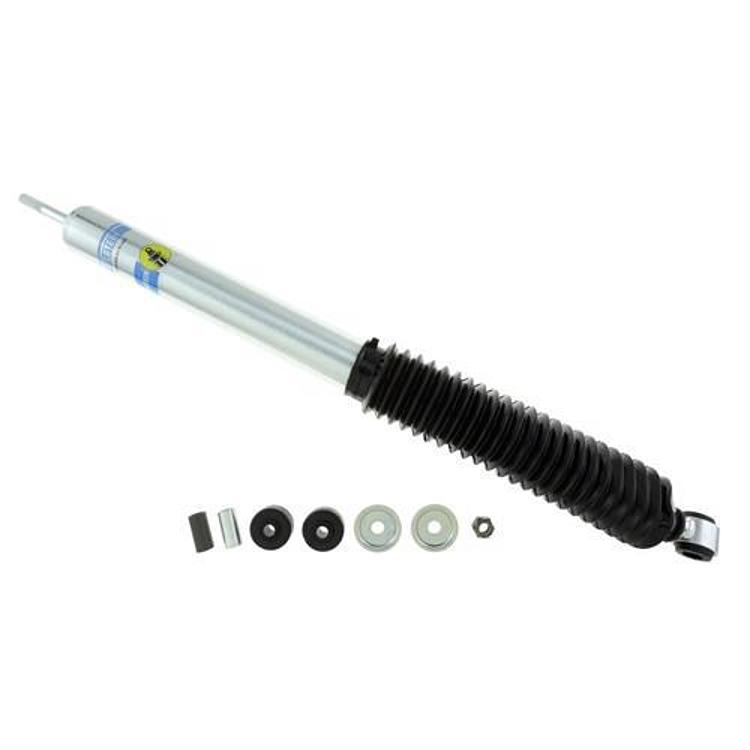

Bilstein 33-230351 is a gas charged, 46mm monotube shock from the 5125 Series, designed for custom suspension projects. It is made for vehicles without a direct Bilstein fitment rather than for any single application.
The 5125 Series offers several lengths and valve rates. Confirm the specific length and valve rate for this part number before settling on a setup.
Key features
- Gas charged monotube body
- 46mm piston
- Self-adjusting deflective disc valving
- 5/8 inch hourglass bushings
- Built for custom applications
Custom build checklist
Custom suspension projects work best when the shock is chosen after the mounting plan. Start with the bracket spacing and the travel the suspension must cover, then compare shock lengths against those figures. A shock that fits the mounts but lacks travel will bottom out, while one that is too long can bind at full compression.
Mount style and bushing size should be settled early. Check that the 5/8 inch bushings sit square in the brackets, and that washers and spacers keep the shock centered. Inspect for oil seepage around the shaft seal and for loose fasteners after rough use. Replacing worn bushings at the same time as the shock avoids repeat work. Keep a record of the measurements you used so the next rebuild starts from accurate numbers.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-230351 |
| UPC | 651860728049 |
| Shock series | 5125 Series |
| Charge | Gas charged |
| Body design | Monotube, high gas pressure |
| Piston | 46mm |
| Valving | Self-adjusting deflective disc |
| Bushings | 5/8 inch hourglass |
| Mount style | Eye/eye or stem/eye; confirm the mount style before ordering |
| Fitment label | Universal Fit |
Vehicle fitment
Universal Fit is the only fitment information attached to part 33-230351, and the manufacturer fitment list has no vehicle entries for it. No year, make, model or chassis code is named, so a vehicle match is not confirmed.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan around custom mounting: check the mount style and the 5/8 inch bushing size against your brackets, and measure the travel the shock must cover.
What’s included
A single shock absorber fitted with 5/8 inch hourglass bushings. Mounting hardware, brackets and spacers are not included.
