Overview

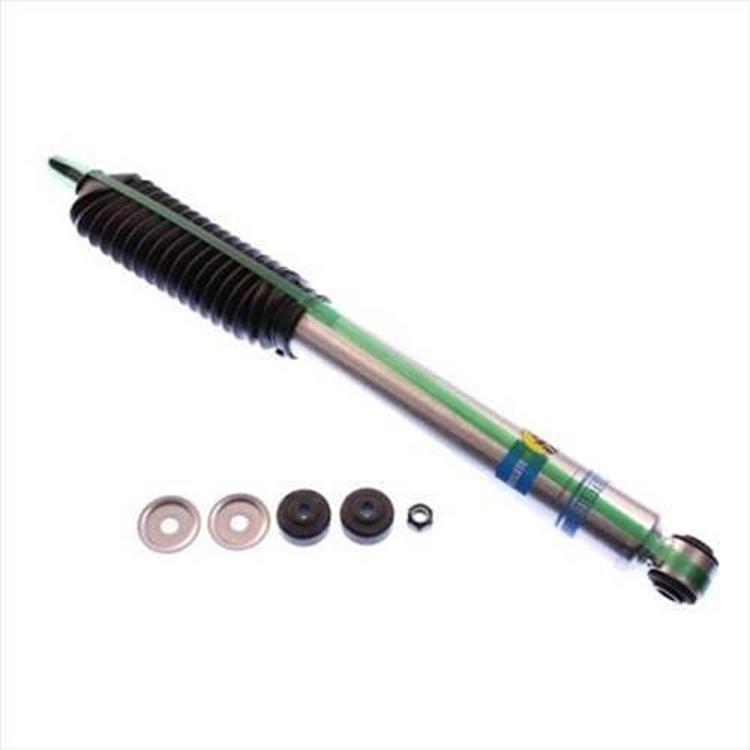

The Bilstein 5100 Series 24-251754 is a front shock absorber for the 2014–2018 Ram 2500 in a 2 to 2.5 inch lift application. It uses a single tube high gas pressure design for consistent, fade-free damping over a long service life.
It is built for specific lift kits that keep the stock O.E.M. mounting configuration. It belongs to the Hydro Series and fits as a direct-fit front position shock.
Key features
- Monotube gas pressure construction for consistent, fade-free damping
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Suited to large diameter tires
- Uses the stock O.E.M. mounting configuration for matched lift kits
Lift height and alignment
A two to two-and-a-half inch lift changes the angle of the control arms and the working length of the shock, so the damping is no longer set for stock height. A shock built for that range keeps the piston and rod at a useful stroke, but the front end still needs to be measured and adjusted for caster and toe after the lift goes in.
Shocks for lifted trucks often work alongside larger tires, which put more weight on the steering and suspension joints. Check the boot and rod for damage at each service, since dirt in the seal shortens shock life. If you change tire size again later, recheck the lift range and alignment before driving on rough terrain.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-251754 |
| UPC | 651860767420 |
| Position | Front |
| Fitment type | Direct fit |
| Shock series | Hydro Series |
| Lift height | 2 to 2.5 in. lift |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
It fits the 2014–2018 Ram 2500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims. Other Ram models and model years are not covered.
Other Ram models and model years are not on this list.
Installation notes
Check your lift height against the 2 to 2.5 inch range before installing. The shock uses the stock O.E.M. mounting configuration, but a lift changes suspension geometry, so have alignment checked after the work is done.
What’s included
The shock is listed with its boot included.
