B8 5160 Series Remote Reservoir Shock Absorber

Bilstein

Shop Ram 3500 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein B8 5160 rear remote reservoir shock absorber, part 25-240412
  • Listed fitment: 2013 to 2018 Ram 3500
  • Extended length 30 in, collapsed 18.33 in, travel 11.67 in
  • Reservoir, 46mm ID smooth body, mono tube design
  • Boot not included

Description

Overview

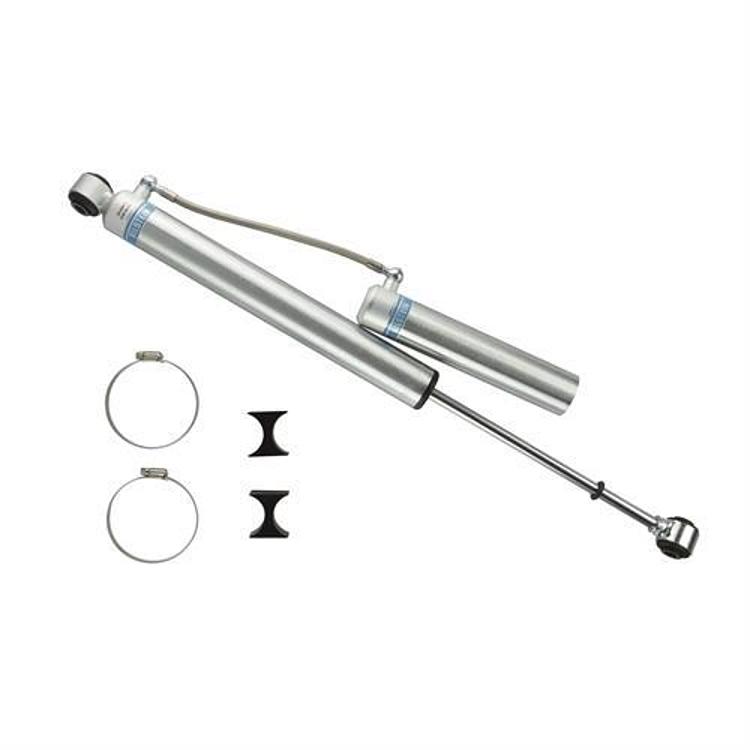

The Bilstein B8 5160 Series Remote Reservoir Shock Absorber, part number 25-240412, is a rear shock with a remote reservoir, a 46mm ID smooth body and a mono tube design. It is a direct fit for the 2013 to 2018 Ram 3500 with a w/0 in. Lift/Drop setting.

The remote reservoir adds cooling capacity and wheel travel compared with a traditional shock absorber. The mono tube body aims for consistent, fade free performance, and the digressive valve settings are tuned for each application.

Each unit has a unique 360 degree swivel banjo hose fitting, which Bilstein describes as a clean, low profile installation. Bilstein positions the shock for owners who want durability in harsh off-road conditions.

Key features

  • Remote reservoir for increased cooling capacity and wheel travel
  • Mono tube design for consistent, fade free performance
  • Velocity sensitive digressive valve settings tuned per application
  • 360 degree swivel banjo hose fitting
  • Zinc plated finish

Hose routing and clearance

The banjo fittings and the reservoir hose are the parts most likely to need attention during a rear shock swap. Plan the hose path before the shock goes in, keeping it away from the exhaust, the driveshaft and the tire path. The hose should keep slack through full suspension travel so it is never pulled tight at the top or bottom of the stroke.

Rear shocks on a heavy-duty truck are exposed to road debris, so inspect the hose sheathing and clamps after rough use. Support the axle or the frame securely while the old shocks come off, and keep the new unit clean until the fittings are seated. A tidy routing makes later inspection easier.

  • Hose path clear of exhaust and driveshaft
  • Slack through full suspension travel
  • Clamps and fittings checked after rough use
  • Protective sheathing free of abrasion

Specifications

Brand Bilstein
Part number 25-240412
UPC 651860752174
Shock series 5160 Series
Position Rear
Fitment type Direct fit
Lift height w/0 in. Lift/Drop
Collapsed length 18.33 in
Extended length 30 in
Travel length 11.67 in
Finish Zinc plated
Reservoir Yes
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Boot included No

Vehicle fitment

Fits the 2013 to 2018 Ram 3500 with Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman trims.

The 2003 to 2013 Ram 3500 range only partly overlaps the 2013 to 2018 fit. Confirm the model year before installing.

Other Ram models are not covered by either range. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The swivel banjo hose fittings allow a clean, low profile hose routing. Compare the package contents with your installation before starting. Support the vehicle securely while the rear shocks are removed.

What’s included

One rear B8 5160 remote reservoir shock absorber.

Not included: Boot. Check the box for mounting hardware before starting the work.

SKU: BIL25-240412 Category:

Specification

Shipping weight 8.45 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is part 25-240412 the rear shock for the Ram 3500?

Yes, it is a rear shock and a direct fit for the 2013 to 2018 Ram 3500. Confirm the model year before installing, since the 2003 to 2013 range only partly overlaps.

What are the extended and collapsed lengths?

Collapsed length is 18.33 in, extended length is 30 in and travel length is 11.67 in. The body is a 46mm ID smooth body that is non-coilover, with a mono tube design.

Does the kit include a boot?

No, a boot is not included. Check the package contents against the mounting requirements for your truck before starting the installation.

What should I check before installing the reservoir hose?

Route the hose clear of the exhaust, driveshaft and tire path, and make sure it keeps slack through full suspension travel. Check the fittings for clean seating and confirm the clamps are secure before the truck is driven.
