Overview
The Bilstein 5160 Series rear reservoir shock absorber, part number 25-187649, is a gas-charged mono tube shock for the 2007–2018 Jeep Wrangler JK. It fits the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, along with the Unlimited versions of those trims.
The reservoir sits remote from the damper body, which increases shock oil capacity and helps heat dissipation and damping sensitivity. Digressive valving gives full damping capability immediately. A floating dividing piston in the reservoir allows more shaft movement and wheel travel. The reservoir mounting is set for each vehicle application.
Key features
- Remote reservoir that increases shock oil capacity
- Digressive valving with immediate full damping capability
- Floating dividing piston located in the reservoir
- Reservoir mounting configuration designed for the specific application
- Zinc plated Triple-C Technology finish with easy care
- Lower eye mount 12.1mm and upper stem mount
Rear reservoir shock care
A rear reservoir shock on a Wrangler JK handles bumps and rebound through the axle, so its mounts and reservoir hose see steady movement off-road. Oil that stays cool keeps the damping predictable over long trail days. Because the reservoir hangs away from the body, it can catch on rocks or brush, so a quick look after rough runs is worthwhile.
Rear shocks wear with the bushings and the mounts, and a worn eye can make the rear end feel loose or noisy over bumps. Replacing the reservoir mount hardware at the same time is practical when the kit is being fitted. Keep the shock body and reservoir fittings clean so leaks are easy to spot.
- Check the reservoir for dents after rocky trails
- Inspect rear eye mounts for play
- Watch for oil around the reservoir fitting
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187649 |
| UPC | 651860655536 |
| Shock series | 5160 Series |
| Position | Rear |
| Collapsed length | 15.91 in. |
| Extended length | 27.46 in. |
| Travel length | 11.55 in. |
| Lower mount | Eye 12.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Finish | Zinc plated |
| Hydraulic / gas charged | Gas charged |
| Lift height | 0 in. lift/drop |
| Boot included | No |
| Included | Upper mount kit and reservoir mount kit |
| Sold as | Each |
Vehicle fitment
For the rear position, Bilstein’s entry for this shock names the 2007–2018 Jeep Wrangler (JK), including the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims and the Unlimited versions of each.
Rear-position fitment is limited to the JK years shown. Wrangler TJ, LJ and JL models, and JK years outside 2007–2018, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper mount kit and reservoir mount kit are supplied. Because the reservoir mounting configuration depends on the application, use the detailed instructions with the kit rather than assuming a generic layout.
What’s included

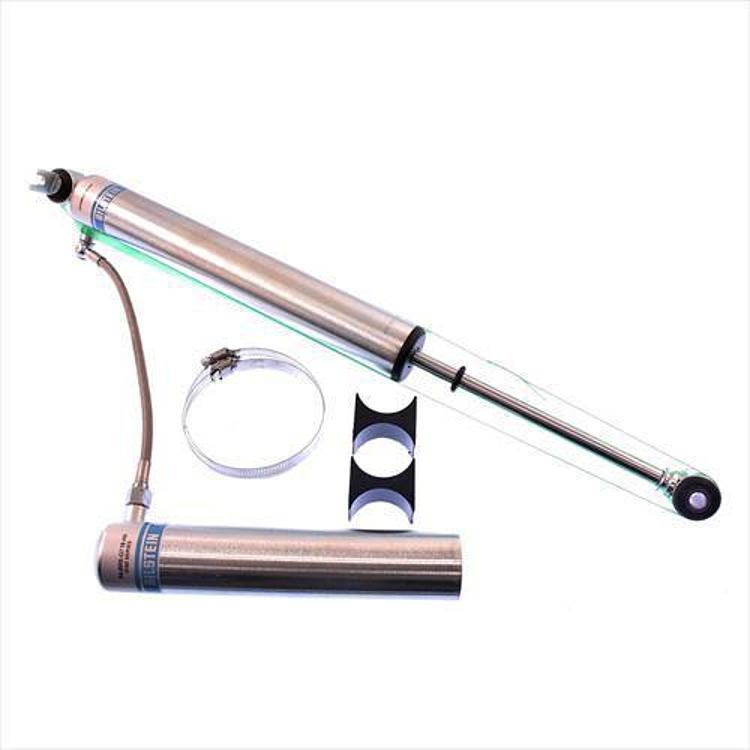

One Bilstein 5160 Series rear reservoir shock absorber, with an upper mount kit and a reservoir mount kit.
Not included: a protective boot, which this rear shock does not have.
