Overview

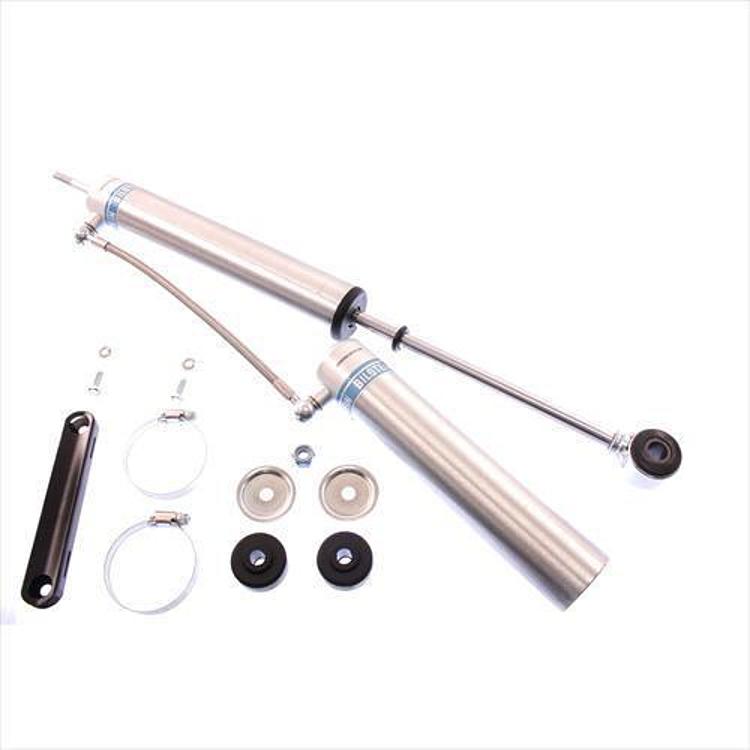

The Bilstein 5160 Series front reservoir shock absorber, part number 25-187687, is a gas charged mono tube shock built for Chevrolet Silverado and GMC Sierra trucks. The manufacturer fitment list places it on 1999–2010 models, including 2007 Classic versions, in the 1500 HD, 2500, 2500 HD, 3500 and 3500 HD lines.
The shock fits the stock front shock location with no cutting or welding. A remote reservoir adds oil capacity, and the 46mm ID smooth body with its 14mm shaft gives 9 in. of travel. The lift range for this part is 4 to 6 in.
Key features
- Remote reservoir for extra shock oil capacity and heat control
- Digressive valving system that produces full damping at once
- Floating dividing piston located in the reservoir for more shaft movement
- Mono tube internal design from Bilstein
- Reservoir mounting configuration designed for each application
- Zinc plated Triple-C finish
Choosing a front lift setup
A front shock for a lifted Silverado or Sierra has to match the suspension height, not just the truck’s model year. Lift height changes shock length, steering geometry and the angle of the lower mount, so a shock sized for a smaller lift can bind or travel poorly. Taking accurate measurements of your current shock before ordering is a sound step.
Reservoir designs add a separate hose and mounting bracket that have to clear the frame, brake lines and steering components through full travel. Check for rubbing after installation and again after a few miles of driving. Worn upper stems, bushings and tie rod ends are often replaced alongside the shock on heavier trucks.
- Measure current shock length before ordering
- Check brake line and steering clearance
- Replace worn bushings during the same job
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187687 |
| UPC | 651860649634 |
| Series | 5160 Series |
| Position | Front |
| Collapsed length | 13.48 in. |
| Extended length | 22.48 in. |
| Travel length | 9 in. |
| Lower mount | Eye, 14.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Gas charged | Yes |
| Finish | Zinc plated |
| Boot included | No |
| Mounting parts included | Upper mount kit and reservoir frame mount kit |
| Lift height listed | w/4 – 6 in. lift |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers Chevrolet Silverado and GMC Sierra 1500 HD models for 2001–2003 and 2005–2006, 2007 Classic 1500 HD (LT), 1999–2004 2500 models, 2001–2010 2500 HD models, 2007 2500 HD Classic models, 2001–2006 3500 models, 2007 3500 Classic models and 2007–2010 3500 HD models. Trims include Base, LS, LT, LTZ, WT, SL, SLE, SLT and SLE.
The list does not include 2004 1500 HD models, 2011 and newer trucks, or the Silverado and Sierra 1500 models without HD in the name. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper mount kit and reservoir frame mount kit are included. Because the listed lift is 4 to 6 in., check shock length and reservoir clearance once installed, including steering and brake line movement.
What’s included
The package includes the upper mount kit, the reservoir frame mount kit and detailed instructions.
Not included: A dust boot, since the shock is listed with no boot.
