Overview

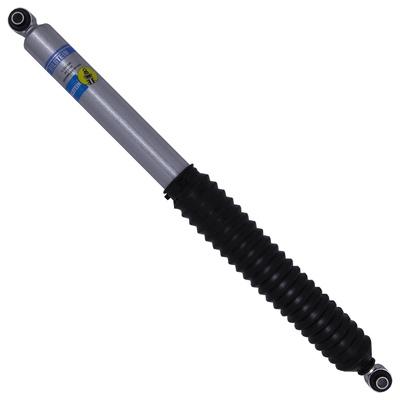

The Bilstein 5100 Series 33-305288 is a rear shock absorber for the 2020–2026 Jeep Gladiator (JT). It is built for a rear lifted height of 1.5 to 2.5 inches and is sold individually.
The shock is a monotube design with a 46mm zinc-plated smooth body and eyelet mounts at both ends. Its collapsed length is 17.91 inches and its extended length is 28.41 inches. The piston is digressive, and the monotube design is intended to hold consistent damping over long use.
The rear lift for this unit is 1.5 to 2.5 inches, so match the rear lift you actually run to this figure before ordering. Measure the rear ride height on the truck before buying, because the shock is only suited to lifts inside that range.
Key features
- Rear lifted height of 1.5 to 2.5 in
- Eyelet top and bottom mounts
- 46mm zinc-plated smooth body
- Collapsed length 17.91 in and extended length 28.41 in
- Monotube design with a digressive piston
Rear lift and damping
On a Gladiator, the rear shock sets how the rear axle settles after a bump and how the truck handles a load in the bed. A damper that suits the rear lift keeps the rear tires in contact with the road, while a worn one lets the rear bounce or wander at highway speed. The lift range drives the shock’s length, so fit should be checked before buying.
Before installing, measure the rear ride height and compare the collapsed and extended lengths with the shock you are removing. Inspect the eyelet bushings at both ends, the bump stops and the rear springs, because worn parts there can make a new shock feel less effective. Replace shocks in pairs so both rear wheels respond the same way, and watch for oil on the body or uneven tire wear as signs of wear.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-305288 |
| Shock series | 5100 Series |
| Position | Rear |
| Rear lifted height | 1.5 to 2.5 in |
| Body diameter | 46mm |
| Collapsed length | 17.91 in |
| Extended length | 28.41 in |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Shock type | Monotube |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2020 through 2026 Jeep Gladiator (JT).
Gladiators from before 2020 and Wrangler (JL) models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Part 33-305288: one rear shock absorber, sold individually.
