Overview

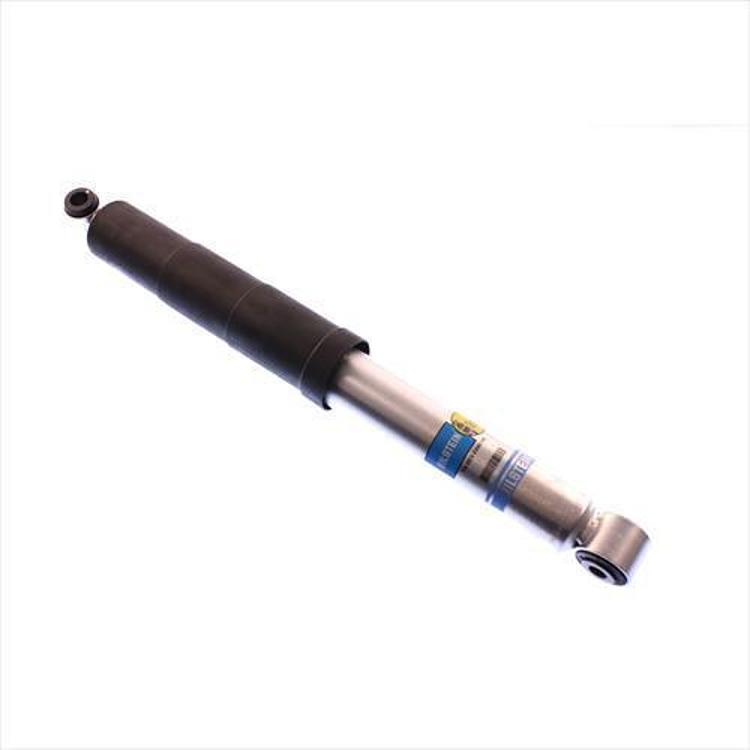

The Bilstein 24-187169 is a 5100 Series rear shock absorber. It fits 2005–2015 Nissan Xterra Off-Road and PRO-4X trims. It has a 14.1mm eye lower mount and a 16mm eye upper mount, with a 14mm shaft.
This smooth-body, non-coilover shock has a 46mm ID body and a monotube design with high gas pressure. At 13.54 in collapsed and 20.87 in extended, it provides 7.33 in of travel.
Key features
- Single tube monotube design with high gas pressure
- Self-adjusting deflecting disc valving
- High-flow piston intended to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for exact damping
- Boot included
Choosing a replacement rear shock
A rear shock controls how the axle moves over bumps and under braking, so its workload changes with load and terrain. On a truck that sees trail use, the rear shocks take repeated impacts from ruts and rocks, and that stress shows up first at the eye bushings and the shock body. Before buying, measure the mounts on the existing unit and compare them with the dimensions given here.
Rear shocks are often replaced alongside bump stops and worn eye bushings. Those parts take the same abuse, and fresh bushings help a new shock hold its position in the mount. If the old shock has leaked, the rebound feel will have changed well before the leak is visible, so a firm or bouncy rear end is a useful sign to check.
- Oil residue on the shock body
- Cracked or flattened eye bushings
- Clunking when the axle changes direction
- Uneven ride height from side to side
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187169 |
| UPC | 651860599120 |
| Shock series | 5100 Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift range | 0 to 1 in |
| Collapsed length | 13.54 in |
| Extended length | 20.87 in |
| Travel length | 7.33 in |
| Lower mount | Eye 14.1mm |
| Upper mount | Eye 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Gas charge | Gas charged |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
It fits 2005–2015 Nissan Xterra Off-Road and PRO-4X trims.
Other Xterra trims and model years outside 2005 through 2015 are not in this list, and Frontier models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 14.1mm lower and 16mm upper eye sizes against your existing rear shock before installing, since mount size is the main thing to confirm for this shock.
What’s included
One Bilstein 5100 Series rear shock absorber, part 24-187169, with the boot included. Not included: no mounting hardware is listed with this shock.
