Overview

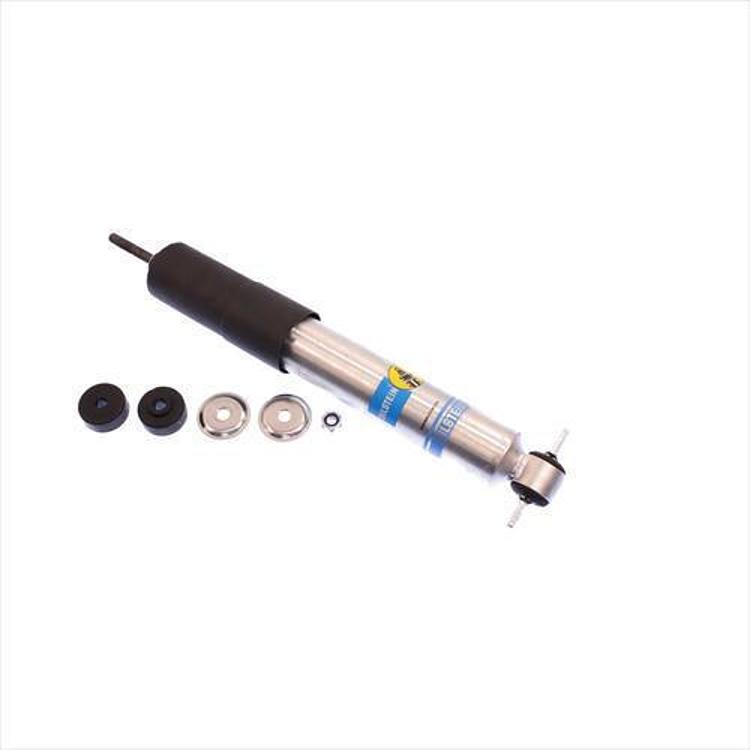

The Bilstein 5100 Series front shock absorber, part number 24-187107, is a gas charged monotube design for lifted trucks and Jeeps with a 3 to 6 in. lift. It has a 10.15 in collapsed length and a 15.43 in extended length. It is a direct fit for the front position.
This is a 46mm ID smooth body shock with no reservoir and no coilover spring seat. It uses a bar pin lower mount, a stem upper mount and a 14mm shaft. The line is designed for certain lift kits that keep the stock O.E.M. mounting configuration. Confirm fit for your vehicle before ordering.
Key features
- Monotube gas pressure body, described by Bilstein as a single tube design
- Deflecting disc valving that adjusts itself during use
- High-flow piston intended to soften harshness
- Separate rebound and compression tuning
- Large working piston area for damping
- Boot included
Front shock upkeep
Front shocks handle steering stability, braking dive and the bounce that follows bumps. On a lifted front end, the shock and its mounts carry more of the work, so wear shows up as wandering on the highway or a loose feeling over washboard. Keep the boot clean and free of grit, since debris working past the seal is a common cause of early failure.
Bar pin mounts rely on a snug fit in the bracket, so look for wear or elongation at the pin and bracket before tightening. Front shocks are often replaced in pairs, and an alignment after the swap keeps tire wear even. When a front shock is worn, the tires frequently show cupping across the tread.
- Check the bar pin and bracket for play
- Look for oil on the shaft or body
- Inspect the boot for tears
- Look for cupped tire tread wear
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187107 |
| UPC | 651860598482 |
| Series | 5100 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | 3 to 6 in. lift |
| Collapsed length | 10.15 in. |
| Extended length | 15.43 in. |
| Travel length | 5.28 in. |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Hydraulic / gas charged | Gas charged |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
Fit depends on your truck’s year, make, model and suspension height. Confirm fit for your vehicle’s year, model and trim before ordering, and compare your lift height with the 3 to 6 in. range.
This part number covers the front position only, so rear shocks are a different part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bar pin lower mounts attach differently from eye mounts, so compare the attachment point on your axle or frame bracket with the shock before fitting. Keep the boot in place during installation. Gas charged shocks are pressurized, so keep the body away from heat and do not puncture it.
What’s included
A boot is included. Check the package contents against your installation before starting.
