Overview

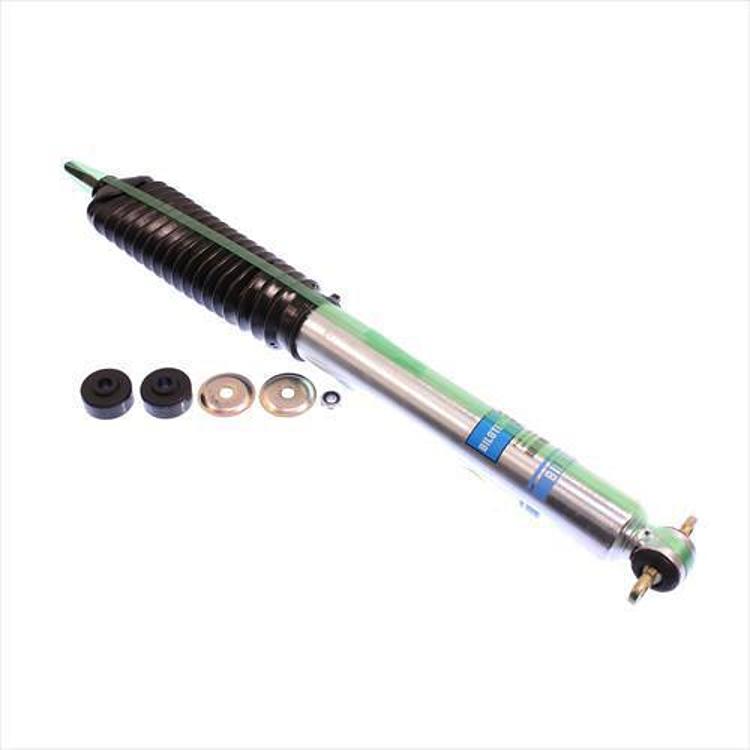

The Bilstein 24-186216 is a front-position 5100 Series monotube gas-charged shock absorber with a 46mm smooth body, zinc plated finish, no reservoir and boots included. Bilstein offers the 5100 Series for lifted trucks, Jeeps and prerunners. The manufacturer fitment list places it on the 1993 to 1998 Jeep Grand Cherokee (ZJ) and the 1993 Jeep Grand Wagoneer (SJ), with the trims named in the list.
The 5100 Series is traditional Bilstein technology with a single tube, high gas pressure design, built for consistent damping and long service life. The body is non-coilover and is built for specific lift kits that keep the stock OEM mounting configuration.
Several features are called out for control on larger tires: a self-adjusting deflecting disc valving, a high-flow piston meant to reduce harshness, independent rebound and compression tuning, and a larger working piston area for exact damping.
Key features
- Monotube gas pressure construction for consistent damping.
- Self-adjusting deflecting disc valving.
- High-flow piston reduces harshness on the road.
- Independent rebound and compression tuning.
- Larger working piston area for exact damping.
- Superior control for large diameter tires.
- Designed for specific manufacturer lift kits with stock OEM mounting.
Lift kit compatibility
Shocks built for lift kits must match the mounting layout the kit uses. A stock OEM mounting setup with a bar pin lower mount and stem upper mount needs to line up with the new ride height. Confirm the lift is the right size before buying, since the shock’s collapsed and extended lengths depend on it.
Larger tires place more load on the damping, so a shock with a high-flow piston and independent tuning can help keep the ride controlled. Check that the wheel and tire size does not reduce travel. Gas-charged units should be serviced by a qualified shop.
- Confirm bar pin lower mount fitment
- Check clearance with the new tires
- Replace worn bushings at the same time
- Match front shocks to the same lift setup
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186216 |
| UPC | 651860585130 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 14.88 in. |
| Extended length | 23.7 in. |
| Travel length | 8.82 in. |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Finish | Zinc plated |
| Reservoir | No |
| Boot included | Yes |
| Hydraulic / gas charged | Gas charged |
| Lift height | w/3 in. Lift |
Vehicle fitment
The manufacturer fitment list for 24-186216 includes the 1993 to 1998 Jeep Grand Cherokee (ZJ) (5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi) and the 1993 Jeep Grand Wagoneer (SJ) (Base).
The list does not cover other Grand Cherokee generations, such as the WJ or XJ, or Grand Cherokee years outside 1993 to 1998. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shock is designed for specific manufacturer lift kits that use the stock OEM mounting configuration, with a bar pin lower mount and stem upper mount. Confirm that your lift kit matches this mounting setup before installing. Have a shop with suitable equipment handle any gas-charged shock service.
What’s included
Boot is included with the shock absorber. Check whether your installation needs other hardware before starting.
