Bilstein 5100 Series Shock Absorber – 24-100144

Bilstein

$95.59In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5100 Series rear shock absorber, part number 24-100144
  • Collapsed length 13.84 in., extended length 22.4 in., travel 8.56 in.
  • Eye lower mount (12mm), stem upper mount, 14mm shaft
  • Lift rating w/0 – 1 in. lift; boot included
  • Vehicle applications to be confirmed before ordering

Description

Overview

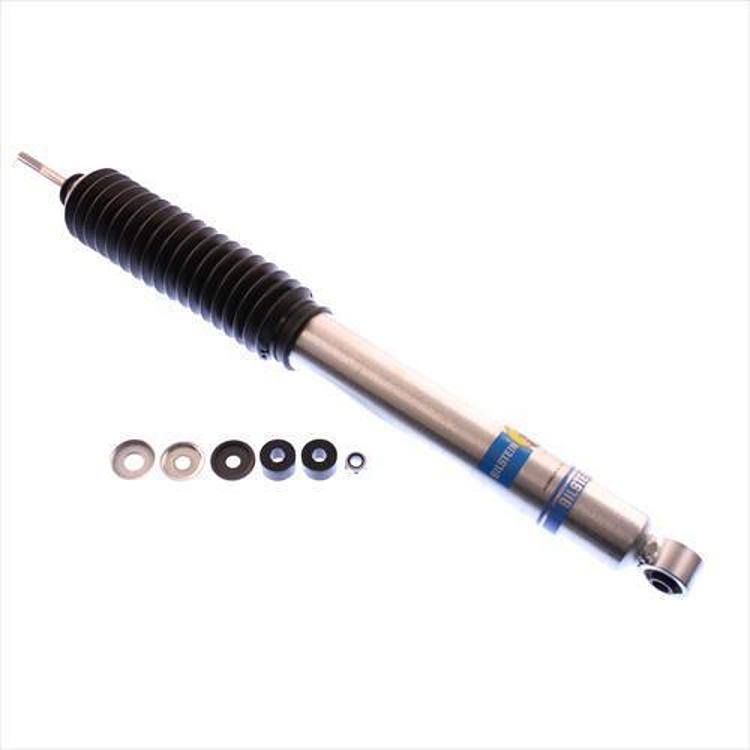

The Bilstein 5100 Series rear shock absorber, part number 24-100144, is a mono tube, gas-charged shock with an eye lower mount and a stem upper mount. It has a 46mm smooth body, a 14mm shaft and a boot.

The 5100 Series is a traditional single-tube design built around high gas pressure. It aims for steady, fade-free damping and long service life, and it suits applications with little or no lift.

The shock is a rear unit, so compare its collapsed and extended lengths with the shock you are replacing before choosing it.

Key features

  • Monotube gas pressure construction.
  • Self-adjusting deflecting disc valving.
  • High-flow piston that Bilstein says reduces harshness.
  • Independent rebound and compression tuning.
  • Boot included.

Choosing a rear shock length

Rear shock length matters more than most buyers expect. A shock that is too long can bind at full droop, and one that is too short can bottom out or pull on its mounts. Before buying, measure the installed length of the unit coming off and compare it with the collapsed and extended lengths of the replacement, then check that the eye and stem mounts line up with the existing brackets.

Lift affects suspension geometry, so a shock rated for little lift may not suit a suspension raised further. If the truck has been lifted, inspect the bump stops and brake line routing before fitting a shock with a different travel range. Gas-charged monotube shocks should not be opened or heated, so a failed unit is replaced rather than repaired.

  • Measure installed length before ordering
  • Check eye and stem mount spacing against existing brackets
  • Inspect bump stops after changing ride height
  • Look for oil seepage or a loose boot as wear signs

Specifications

Brand Bilstein
Part number 24-100144
UPC 651860619026
Series 5100 Series
Position Rear
Collapsed length 13.84 in.
Extended length 22.4 in.
Travel length 8.56 in.
Lower mount Eye, 12mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir No
Gas charged Yes
Finish Zinc plated
Boot Included
Lift height w/0 – 1 in. lift

Vehicle fitment

Vehicle applications are not confirmed for this part number. Confirm fit for your vehicle’s year, model and trim before ordering, and compare the length and mount type with the shock being replaced.

Compare the 13.84 in. collapsed and 22.4 in. extended lengths with the shock being replaced. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Only a 0 – 1 in. lift rating is stated, so check with the manufacturer before using this shock with a taller lift. The 12mm eye lower mount and stem upper mount need matching brackets at both ends. Because the body is gas charged, avoid cutting it open or applying heat.

What’s included

Shock absorber with boot included. Check the package contents against your installation before starting.

SKU: BIL24-100144 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Questions & Answers

What is Bilstein part number 24-100144?

It is a Bilstein 5100 Series rear shock absorber with a 13.84 in. collapsed length, 22.4 in. extended length, 8.56 in. travel, a 12mm eye lower mount, a stem upper mount and a boot.

Will this rear shock fit my truck?

Not confirmed. Confirm fit for your vehicle's year, model and trim before ordering. Compare the 13.84 in. collapsed and 22.4 in. extended lengths with the shock you are replacing.

What lift height is it rated for?

It is rated w/0 - 1 in. lift, so the specifications point to 0 to 1 inch of lift. Check this rating against your suspension height before choosing the shock.

Does it have a reservoir?

No. The specifications list Reservoir: No. The internal design is mono tube with a 46mm smooth body that is non-coilover.

How can I tell if a rear shock needs replacing?

Look for oil leaking down the body, a dented or cracked tube, or a boot that is torn or missing. A bouncy ride that keeps going after a bump, or uneven tire wear, can also point to a worn shock that needs replacing.
