Overview

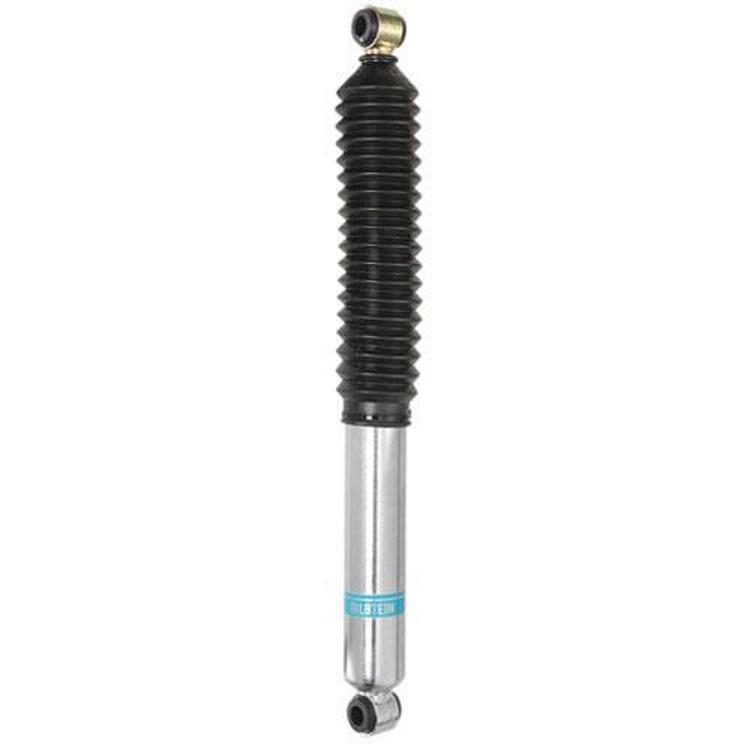

The Bilstein 5100 Series shock absorber, part number 24-186995, is a front zinc plated monotube shock with a 46mm smooth, non-coilover body. It is intended for lifted trucks, Jeeps and prerunners. Confirm fit for your vehicle’s year, model and chassis before ordering.
The 5100 Series uses a high gas pressure monotube design with self-adjusting deflecting disc valving and a high-flow piston that reduces harshness. Rebound and compression can be tuned independently, and the larger working piston area supports damping control. The unit is designed for specific lift kits that use the stock OEM mounting configuration.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Designed for specific manufacturer lift kits using stock OEM mounting
- Boot included
Matching a lift kit
A lift changes the geometry of the front end, so the shock has to suit the kit and the stock mounting points. A shock built for a specific kit usually matches the spring rate and travel better than a generic unit. Before ordering, measure the stock eye-to-eye length and compare it with the kit instructions.
Once installed, check that the shock reaches full droop without binding and has room at full compression. Look at the brake lines, driveline angles and sway bar links after a lift of this size. Hoses that look stretched or joints that bind are signs the setup needs adjusting before you drive far.
- Stock eye-to-eye length
- Full droop clearance
- Brake line length
- Driveline angles after lifting
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186995 |
| UPC | 651860597669 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 16.41 in. |
| Extended length | 27.56 in. |
| Travel length | 11.15 in. |
| Lower mount | Eye, 12.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | None |
| Boot | Included |
| Finish | Zinc plated |
| Lift height | 3.5 to 5 in. |
| Sold as | Each |
Vehicle fitment
Confirm fit for your vehicle’s year, model and chassis before installation, and match the shock to the lift kit it is designed for.
Confirm your vehicle’s year, model and trim before ordering, and confirm the lift kit it is meant for.
Installation notes
Because the unit is designed for specific manufacturer lift kits, match it to the kit and keep the stock OEM mounting configuration in mind. Check alignment and driveline angles after a lift of this size.
What’s included
Sold as each, with a boot included. Check the package contents against your installation before starting.
