Overview

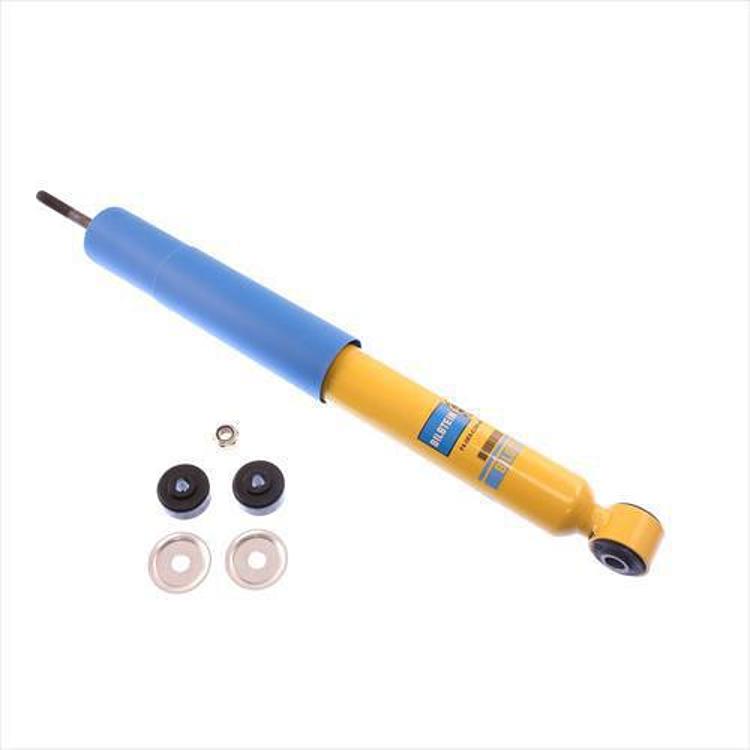

The Bilstein 24-186674 is a front monotube gas charged shock absorber from the 4600 series, fitted to the 2005-2016 Ford F-250 Super Duty and F-350 Super Duty. It has a 2 inch body, a yellow finish, boots and no reservoir.
Bilstein uses a patented gas charged monotube design. Heat from the oil moves outward to the shock body, and a dividing piston lets the oil expand as it warms. This helps the shock resist foaming and viscosity loss, so it keeps its full damping as temperatures rise.
The tube is made by a special extrusion process that gives tight peak-to-valley tolerance and even wall thickness. The piston head tunes compression and rebound separately, and the digressive design uses fewer parts than conventional twin tube or road sensing shocks.
Key features
- Patented monotube gas charged design that moves heat from the oil to the shock body
- Dividing piston that lets oil expand as heat builds
- Seamless extruded tube with tight peak-to-valley tolerance and consistent wall thickness
- Piston head allows independent tuning of compression and rebound damping
- Digressive design with fewer parts than most twin tube shock designs
- Boots included
- Yellow finish
Front shock replacement basics
Front shocks on heavy-duty pickups handle steering-related movement and bump control, and they work with the front springs to keep the tires planted. A worn front shock can make the front end wander, bounce after bumps or feel loose during braking. Monotube gas charged designs like this one help keep damping steady, but the mounts and bushings still need checking at each service.
Replacing a front shock is simplest when the old unit is compared closely with the new one. Check the mounting position, the body diameter and the mount type before ordering. Keep the boots intact, because a torn boot lets grit reach the shaft and seals. If one front shock is replaced, inspect the other side for leaks and mount wear at the same time.
- Check the front mounts and bushings at service
- Inspect boots for tears
- Compare body diameter and mount type before ordering
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186674 |
| UPC | 651860492964 |
| Shock series | B6 Series (4600 series) |
| Position | Front |
| Body diameter | 2 inch |
| Type | Monotube |
| Gas charge | Gas charged |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift height | 0 in. lift/drop |
| Fitment type | Direct fit |
Vehicle fitment
The part fits the 2005-2016 Ford F-250 Super Duty and F-350 Super Duty in Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims.
Ford F-150, F-450 and other Ford models are outside this fitment. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package includes boots. The shock has no reservoir.
Not included: Mounting hardware and a second shock are not part of the package, so check the installation needs before starting.
