Bilstein 5100 Series Shock Absorber – 24-186742

Bilstein

$105.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

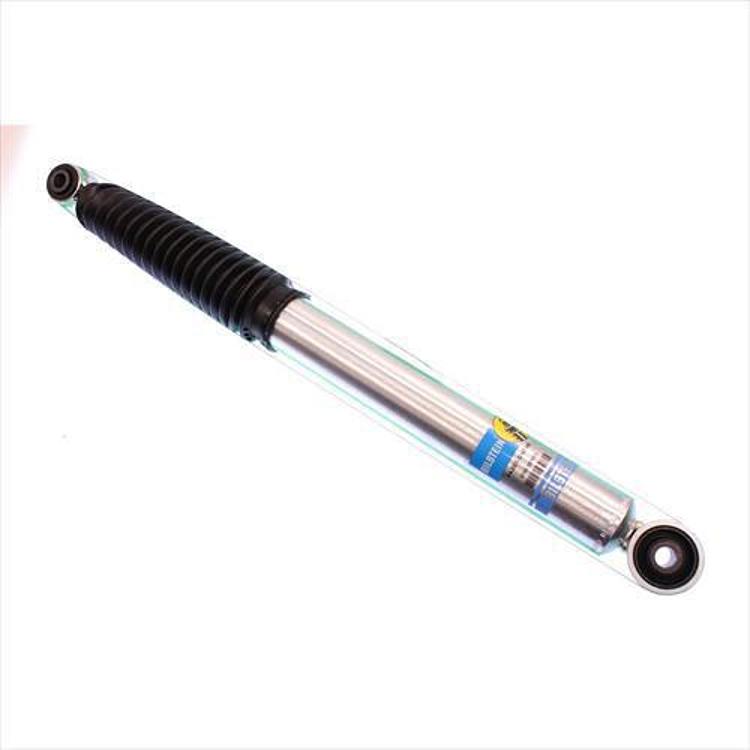

  • Bilstein 5100 Series 24-186742 monotube gas pressure shock absorber
  • Manufacturer list covers 1999–2010 Chevrolet Silverado and GMC Sierra trucks
  • Collapsed length 16.14 in, extended length 26.15 in, travel 10.01 in
  • 14.12mm eye mounts, 14mm shaft, zinc plated finish, boot included

Description

Overview

The Bilstein 5100 Series Shock Absorber, part number 24-186742, is a monotube gas pressure shock absorber with a 46mm smooth body and 14mm eye mounts at both ends. Bilstein markets the 5100 Series for lifted trucks, Jeeps and prerunners, and the manufacturer fitment list names Chevrolet Silverado and GMC Sierra models from 1999 to 2010.

Bilstein describes single tube high gas pressure construction as the basis for consistent, fade-free performance and long life. The shock uses self-adjusting deflecting disc valving and a high-flow piston that Bilstein says reduces harshness, along with a larger working piston area for damping control.

Bilstein also presents the 5100 Series as offering control for large diameter tires and as designed for specific manufacturer lift kits that keep the stock O.E.M. mounting configuration. Collapsed length is 16.14 in, extended length is 26.15 in and travel length is 10.01 in, so the travel can be compared with your lift height before ordering.

Key features

  • Monotube gas pressure construction in a single tube body
  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for exact damping
  • Built for specific manufacturer lift kits that use the stock O.E.M. mounting layout
  • Boot included

Lift kit compatibility

A shock designed for a specific lift kit depends on that kit’s geometry. The stock O.E.M. mounting layout means the upper and lower mount positions match the kit’s brackets, so a mismatch can leave the shock bottoming out or binding. Before buying, compare the collapsed and extended lengths with the height your truck runs, and confirm the spring and bump stop setup is compatible.

Trucks that run larger tires or heavier bumpers add load to the shock mounts, so inspect the eye bushings and bolts before installing. Lift kits often change the angles of the control arms and driveshaft, which can change how the shock moves through its travel. If the ride feels harsh or the front end hops after the install, recheck the mounting and angle before assuming the shock is faulty.

  • Verify the mounting layout matches your kit
  • Measure installed length against your ride height
  • Check bushings and bolts for wear
  • Re-check bolts after the first few drives

Specifications

Brand Bilstein
Part number 24-186742
UPC 651860565484
Series 5100 Series
Internal design Mono tube
Charge Gas charged
Body design 46mm ID smooth body (non-coilover)
Collapsed length 16.14 in
Extended length 26.15 in
Travel length 10.01 in
Lower mount Eye 14.12mm
Upper mount Eye 14.12mm
Shaft diameter 14mm
Finish Zinc plated
Reservoir No
Boot included Yes

Vehicle fitment

The manufacturer fitment list covers 1999–2010 Chevrolet Silverado and GMC Sierra trucks in 1500, 1500 HD, 2500, 2500 HD, 3500 and 3500 HD configurations, plus 2007 Classic models in those lines. Several entries name only certain trims, such as LT or SLE, so each year and trim pairing matters.

Models from 2011 onward, other makes and Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bilstein designs this shock for specific manufacturer lift kits, so confirm that your lift kit uses the stock O.E.M. mounting layout before installing. Both eye mounts are listed at 14.12mm, so check the mounting hardware on your truck against those dimensions.

What’s included

A Bilstein 5100 Series shock absorber with boot.

Not included: Check mounting hardware and lift kit parts against your truck before starting the installation.

SKU: BIL24-186742 Category:

Specification

Shipping weight 5.75 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15001999–2006Base, Hybrid, LS, LT, WT, Z71
Chevrolet Silverado 1500 Classic2007Hybrid, LS, LT, WT
Chevrolet Silverado 1500 HD2001–2003, 2005–2006Base, LS, LT
Chevrolet Silverado 1500 HD Classic2007LT
Chevrolet Silverado 25001999–2004Base, LS, LT, WT
Chevrolet Silverado 2500 HD2001–2010Base, LS, LT, LTZ, WT
Chevrolet Silverado 2500 HD Classic2007LS, LT, WT
Chevrolet Silverado 35002001–2006Base, LS, LT, WT
Chevrolet Silverado 3500 Classic2007LS, LT, WT
Chevrolet Silverado 3500 HD2007–2010LT, LTZ, WT
GMC Sierra 15001999–2006Base, HT, Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 Classic2007Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 HD2001–2003, 2005–2006SLE, SLT
GMC Sierra 1500 HD Classic2007SLE, SLT
GMC Sierra 25001999–2004Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD2001–2010Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD Classic2007SL, SLE, SLT, WT
GMC Sierra 35002001–2006Base, SL, SLE, SLT, WT
GMC Sierra 3500 Classic2007SL, SLE, SLT, WT
GMC Sierra 3500 HD2007–2010SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is Bilstein 5100 Series part number 24-186742?

It is a Bilstein 5100 Series shock absorber with monotube gas pressure construction, a 46mm smooth body, 14mm eye mounts at both ends and a zinc plated finish. Collapsed length is 16.14 in and extended length is 26.15 in.

Which trucks does the Bilstein 24-186742 fit?

The manufacturer fitment list names Chevrolet Silverado and GMC Sierra trucks from 1999 to 2010, including 1500, 1500 HD, 2500, 2500 HD, 3500 and 3500 HD models. Confirm your vehicle's year, model and trim before ordering, because trims differ between entries.

Does the 5100 Series work with a lift kit?

Yes, the shock is designed for specific lift kits that use the stock O.E.M. mounting configuration. Confirm that your lift kit matches that mounting before installing the shock.

Are mounting hardware and other parts included with the 24-186742?

The shock comes with a boot, but mounting hardware and lift kit parts are not included. Check what your lift kit or truck requires before ordering.

Do I need new bushings when installing a shock?

Replacing worn bushings at the same time is a good habit, since a new shock cannot control movement that worn mounts allow. Inspect them for cracks and play, and replace any that are damaged. Fresh bushings also help keep the new shock aligned.
