Overview

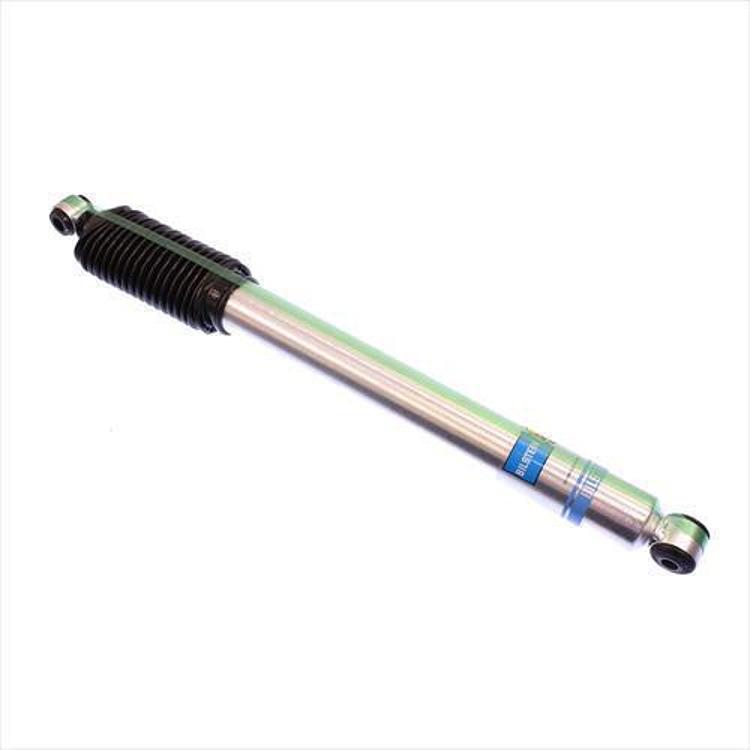

The Bilstein 5100 Series shock absorber, part number 24-186025, fits the 1999–2016 Ford F-250 and F-350 Super Duty in King Ranch, Lariat, Platinum, XL and XLT trims. It is a gas-charged monotube damper with eye mounts at both ends, a 12mm lower eye and a 16mm upper eye, rather than pins or a stem.
The 5100 Series is a traditional single high-gas-pressure tube design aimed at lifted trucks and prerunners. This shock measures 18.04 in collapsed and 29.7 in extended, with 11.66 in of travel. Its 14mm shaft runs through a 46mm ID smooth body that is non-coilover, with a zinc plated finish and an internal mono tube design.
Key features
- Monotube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston that Bilstein says reduces harshness.
- Independent rebound and compression tuning.
- Larger working piston area for damping control.
- Boot included.
Before fitting eye mount shocks
Eye mount shocks bolt through a round eye at each end, so the bushings and mounting bolts carry the load directly. Before fitting, clean the mounting points and inspect the bushings for cracks or hardening. A worn bushing can let the shock rock side to side and wear the eye over time.
Gas-charged monotube shocks keep pressure inside the body, which helps them resist fade on long descents and repeated bumps. Because the tube is pressurized, leave service to a shop with the right equipment. On trucks used for heavy towing or lifted-suspension driving, check the body and boot regularly for leaks and damage.
- Clean eye mounts and bushings before installing
- Recheck mounting bolts after the first few drives
- Inspect boots for splits that let in grit
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186025 |
| UPC | 651860493206 |
| Shock series | 5100 Series |
| Fitment | Direct Fit |
| Collapsed length | 18.04 in |
| Extended length | 29.7 in |
| Travel length | 11.66 in |
| Lower mount | Eye 12mm |
| Upper mount | Eye 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | Yes |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
It fits the 1999–2016 Ford F-250 and F-350 Super Duty in King Ranch, Lariat, Platinum, XL and XLT trims. Cabela’s, FX4 and Harley-Davidson Edition trims fall outside this fit. For other Ford models or trims, confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm that the 12mm lower eye and 16mm upper eye match the mounting points on your truck before choosing this shock. Gas-charged units are pressurized, so have them serviced by a shop with the right equipment.
What’s included
One shock absorber with a boot. Check the package contents against your installation before starting, since mounting hardware is not part of the package.
