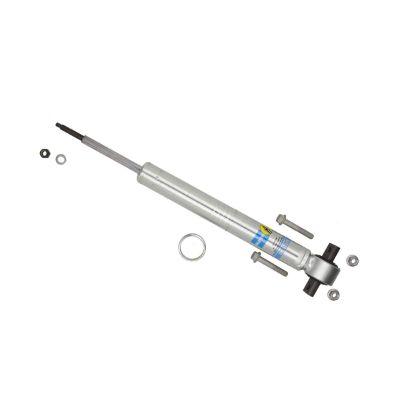

Bilstein 5100 Series Ride Height Adjustable Shock Absorber – 24-286503

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front ride height adjustable shock for 2014 Ford F-150, 2WD models only
  • Up to 2.1 in of front lift
  • Collapsed length 16.05 in, extended length 21.4 in, travel 5.35 in
  • Zinc-plated 46mm snap-ring grooved body

Description

Overview

The Bilstein 5100 Series 24-286503 is a front shock absorber for the 2014 Ford F-150 in 2WD form. It is ride height adjustable, with up to 2.1 inches of front lift, and it is built for trucks with a front OE coilover-style suspension.

The zinc-plated body has snap-ring grooves that set the spring seat height, so the lift is chosen by picking the groove rather than by fitting a spacer. The unit is a monotube design with a digressive piston and a self-adjusting deflective disc valve. Its collapsed length is 16.05 inches, its extended length is 21.4 inches and its travel is 5.35 inches.

The shock is limited to 2WD models, so do not fit it to a four-wheel-drive F-150 without checking the drive type first.

Key features

  • Front lift of up to 2.1 in
  • Limited to 2WD models
  • Snap-ring grooved 46mm body with a zinc-plated finish
  • Collapsed length 16.05 in and extended length 21.4 in
  • Monotube design with a digressive piston

Choosing the right setup

On a 2WD F-150, the front shock works as one part of a system that includes the springs, bump stops and steering geometry. Selecting the spring seat groove sets the height, but the result also depends on how the truck is loaded and driven. Heavier loads and towing put more demand on the shock body and mounts, so the setup should suit the way the truck is used.

Front ride height changes affect caster, camber and toe, so alignment should be checked after any height change. Bump stops and upper mounts are often replaced at the same time because they wear with the shock and affect how the new unit reaches its travel. Keep a note of the groove used so the front end can be set the same way on both sides.

  • Compare the old shock’s length with the new one at both mounts
  • Inspect bump stops for cracks or flattening
  • Recheck alignment and headlight aim after the first drive

Specifications

Brand Bilstein
Part number 24-286503
Shock series 5100 Series (ride height adjustable)
Position Front
Drive type 2WD only
Body diameter 46mm
Front lift Up to 2.1 in
Collapsed length 16.05 in
Extended length 21.4 in
Travel 5.35 in
Reservoir No
Finish Zinc plated
Fitment type Direct fit

Vehicle fitment

It is made for the 2014 Ford F-150 in 2WD form and covers no other F-150 model years.

F-150 models from 2013 and from 2015 onward, and four-wheel-drive F-150 trucks, are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Part 24-286503: one front shock absorber, sold individually.

Installation notes

Confirm the truck is a 2WD model before ordering, then set the spring seat to the groove that matches the lift you want. Recheck the front alignment after the ride height is set.

Fitment

VehicleYearsTrims
Ford F-1502014FX2, King Ranch, Lariat, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-286503 fit a 2014 Ford F-150 4x4?

No. The shock is limited to 2WD models, so four-wheel-drive F-150 trucks are not covered. Confirm the drive type on your F-150 before ordering.

How much front lift does the 24-286503 provide?

Up to 2.1 inches with OE springs. The exact lift depends on the spring seat groove you select and the application.

Does the 24-286503 fit any F-150 year besides 2014?

No. It is for the 2014 Ford F-150 only, so other F-150 model years are not covered by this part. Confirm your truck's year before ordering.

Are upper mounts worth replacing with a new front shock?

Often, yes. Worn upper mounts can allow the shock to move under load and make the front end feel loose. Inspect them when the shock is out and replace any that are cracked, collapsed or noisy so the new shock sits and works as intended.
