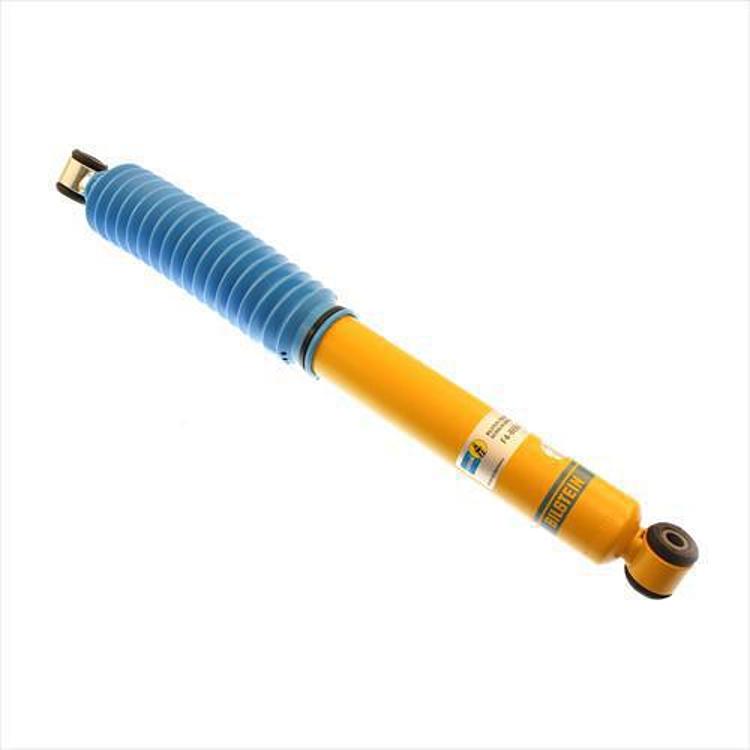

Bilstein 46mm Monotube Shock Absorber – 24-185202

Bilstein

Shop Ford Expedition Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 46mm monotube heavy duty shock absorber, part number 24-185202, rear position
  • Lift height rating of 0 to 1 in. lift, yellow finish
  • Old part number BILF4-BE5-2573-H1
  • Fitment list includes 1997–2002 Ford Expedition and 1998–2002 Lincoln Navigator

Description

Overview

The Bilstein 24-185202 is a rear 46mm monotube shock absorber from the 4600 Series, rated for 0 to 1 in. of lift and finished in yellow with a heavy duty build. It fits the 1997–2002 Ford Expedition in Eddie Bauer and XLT trims and the 1998–2002 Lincoln Navigator in Base trim. The fitment section below spells out the full coverage.

In a monotube design, one tube holds the damping oil and a pressurized gas section, separated by a free piston. Heat from the oil moves outward through the shock body, and a dividing piston lets the oil expand as it warms. That combination reduces foaming and thinning of the oil as temperatures climb.

The tube is seamless and formed by extrusion, which gives tight peak-to-valley tolerance and consistent wall thickness. Compression and rebound damping can be set independently at the piston head. The digressive piston design is built for durability and long service life, and the 46mm body size is the main dimension of the unit.

Key features

  • Heavy duty 46mm monotube gas-charged construction
  • Dividing piston allows oil expansion as heat builds
  • Seamless extruded tube with tight wall thickness control
  • Independently adjustable compression and rebound damping
  • Digressive piston design credited with durability
  • Yellow finish

Rear shock setup

A rear shock on a full-size SUV controls rebound when the axle rises and falls over ruts and ledges. A heavy duty body and a dividing piston help the damping hold up when the shock works hard on repeated trail sections or when the vehicle carries extra cargo. Lift changes the geometry, so a rear rating covering a range of lift should be checked against how the vehicle sits.

Rear shocks often wear alongside bushings and bump stops, and a sagging or bouncy rear end can point to worn units rather than springs. Check for fluid streaks down the body, dents in the tube and cracked boots. Replacing both sides keeps the ride even from left to right.

  • Look for fluid on the outer tube
  • Check bump stops for cracking
  • Swap both units on an axle together

Specifications

Brand Bilstein
Part number 24-185202
Old part number BILF4-BE5-2573-H1
UPC 651860616339
Shock series 4600 Series
Type Monotube, gas charged
Size 46mm
Position Rear
Lift height rating 0 to 1 in. lift
Finish Yellow
Fitment type Direct fit

Vehicle fitment

It fits the 1997–2002 Ford Expedition in Eddie Bauer and XLT trims and the 1998–2002 Lincoln Navigator in Base trim, and these are the only vehicles covered for this rear shock. Other Expedition and Navigator years fall outside this coverage, and Ford F-150 and other models are not included.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear 46mm monotube shock absorber.

SKU: BIL24-185202 Category:

Specification

Shipping weight 4.45 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford Expedition1997–2002Eddie Bauer, XLT
Lincoln Navigator1998–2002Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-185202 fit a 1997 Ford Expedition?

Yes. It fits the 1997–2002 Ford Expedition in Eddie Bauer and XLT trims. Confirm your year, model and trim before ordering, since other years fall outside this coverage.

Does the 24-185202 fit a Lincoln Navigator?

Yes, for the 1998–2002 Lincoln Navigator in Base trim. Other Navigator years and trims are not covered, so confirm your year, model and trim before ordering.

What is the old part number for this shock?

The former part number was BILF4-BE5-2573-H1. Use 24-185202 when ordering this Bilstein 46mm monotube shock absorber, since that is the current number.

What lift height is this 46mm shock rated for?

The specifications give a rating of 0 to 1 in. lift. Because that is a general range, check fitment and lift requirements for your specific vehicle before choosing this shock.

Should rear shocks be replaced in pairs?

Yes, in most cases. Replacing both rear shocks on the same axle keeps damping even from side to side and avoids a pulling or uneven feel on rough roads. Check the other side for leaks or split boots before deciding.
