Overview

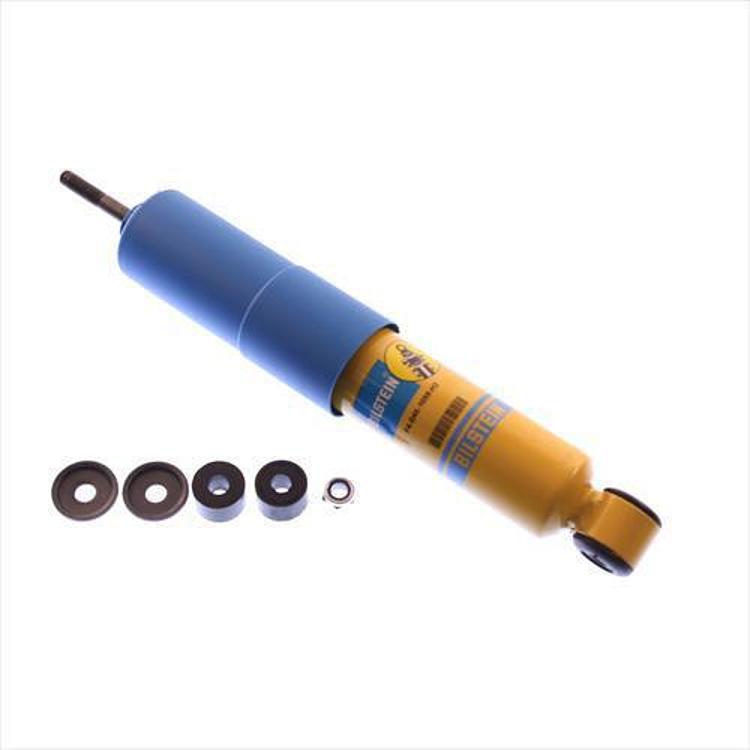

The Bilstein 4600 Series 24-187824 is a front heavy-duty monotube gas-charged shock absorber with a 2 in body diameter and a yellow finish. It has 0 in. of lift or drop, so it is not a lift part. Confirm fit for your vehicle’s year, model and trim before choosing it.
The gas-charged monotube design moves heat from the oil out through the outer surface of the shock body, so damping holds steady as temperatures climb. A dividing piston lets the oil expand as it warms, which prevents foaming and loss of viscosity. The tube is formed by a special extrusion method that gives tight peak-to-valley tolerance and consistent wall thickness. The piston head can be tuned separately for compression and rebound damping.
Key features
- Heavy-duty monotube body built around a single tube and a dividing piston
- Gas-charged design intended to move heat from the oil out through the shock body
- Piston head tunable for compression and rebound damping
- Extrusion process with tight peak-to-valley tolerance and consistent wall thickness
- Dust boots included
- Yellow finish and 2 in body diameter
- Gas charged, not hydraulic
Dust boots and front shock care
Front shock absorbers do much of the work of controlling the wheel as it moves over bumps and during steering and braking. A monotube body with a dividing piston helps the oil stay stable when the shock heats up, which keeps the front end controlled on long descents or repeated trail sections. Boots protect the shaft and seal from grit and water, so they should be checked alongside the shock body.
When replacing a front shock, look at the springs, bushings and steering components that connect to it. A new shock on worn bushings will not deliver the control it was designed for. Gas-charged bodies are pressurized, so keep heat and cutting tools away from the shock during removal.
- Inspect the boot for tears after trail use
- Clean the shaft before installation to protect the seal
- Replace worn mounting bushings at the same time
- Check alignment after front end work
Specifications
| Brand | Bilstein |
|---|---|
| Product line | Bilstein 4600 Series |
| Part number | 24-187824 |
| UPC | 651860449173 |
| Position | Front |
| Type | Monotube |
| Charge | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Lift/Drop | 0 in. |
| Fitment | Direct fit |
Vehicle fitment
This shock has no vehicle years, makes or models attached, so confirm fit before ordering. It is designed as a direct-fit front shock, and your vehicle’s year, make, model and trim determine whether it matches.
Compare the shock with the front shock on your vehicle for length and mounting style before installing. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Dust boots are included. Confirm the mounting hardware and brackets you need before starting the installation.
Not included: Check the package for mounting hardware before starting the installation.
