Overview

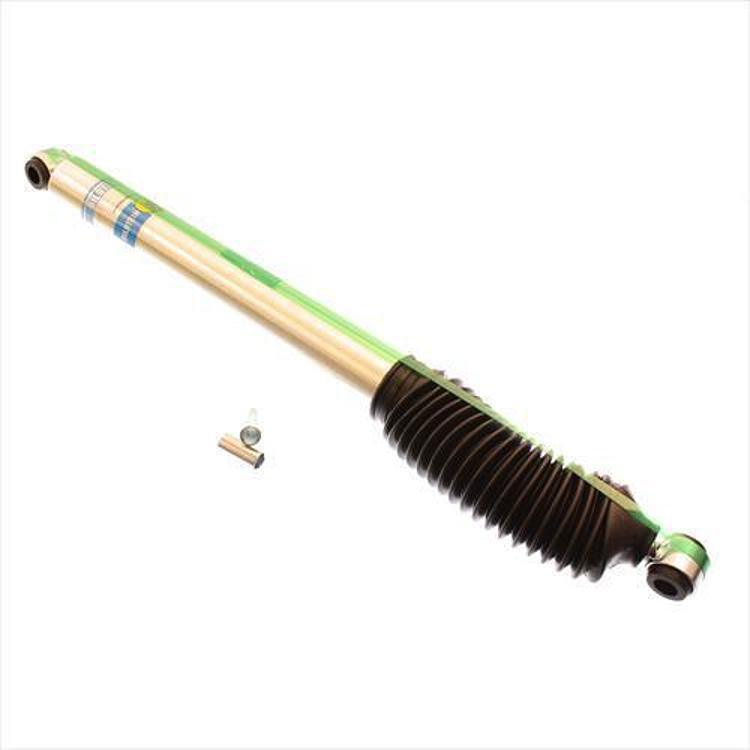

The Bilstein 5125 Series shock absorber, part number 33-185569, is a gas-charged monotube shock for the rear of lifted trucks and custom applications, with 5/8 inch eye mounts at both ends. Bilstein rates it for a 5 to 6 inch lift (w/5 – 6 in. Lift) and gives the body as 46mm, smooth and non-coilover.
The 5125 Series is built for larger tires. It uses self-adjusting deflecting disc valving, a high-flow piston and separate rebound and compression tuning. Travel length is 11.79 inches, between a 17.91 inch collapsed length and a 29.7 inch extended length. The design is also available by travel length for custom applications.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Available by travel length for custom applications
- Boot included
Choosing shock length
Shock length matters as much as damping on a lifted truck. A shock that is too short will bottom out on the bump stop, while one that is too long can hit the frame or limit axle travel. Measure the mount-to-mount distance at ride height and again with the suspension fully drooped before deciding. Compare those figures with the collapsed and extended lengths of the new unit.
The rest of the suspension sets how a rear shock works. Leaf or coil springs, bump stops and control arms all affect how much travel the shock sees. When a larger tire or lift changes the geometry, the shock angle can change too, which shifts its load onto the bushings. Worn bushings, a sagging spring or a bent mount often show up alongside shock wear, so inspect them together.
- Measure mount-to-mount distance at ride height
- Check eye bushings for cracks and play
- Inspect bump stops before fitting a longer shock
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-185569 |
| UPC | 651860453736 |
| Shock series | 5125 Series |
| Position | Rear |
| Collapsed length | 17.91 in |
| Extended length | 29.7 in |
| Travel length | 11.79 in |
| Compression | 700 |
| Rebound | 2550 |
| Lower mount | 5/8 inch eye |
| Upper mount | 5/8 inch eye |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Gas charged | Yes |
| Boot included | Yes |
| Mounting parts | 1/2 inch sleeves |
| Lift height rating | w/5 – 6 in. Lift |
Vehicle fitment
No specific year, make or model is tied to this shock, so fit is not confirmed here. The 5 to 6 inch lift rating matches the suspension height it suits. Confirm fit for your year, model and trim before you order.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Both ends use 5/8 inch eyes, and 1/2 inch mounting sleeves are included. Compare the 17.91 inch collapsed and 29.7 inch extended lengths with the shock you are replacing. Shocks are under spring load, so support the axle and tire securely while you work.
What’s included
The shock absorber with its boot and 1/2 inch mounting sleeves.
