Overview

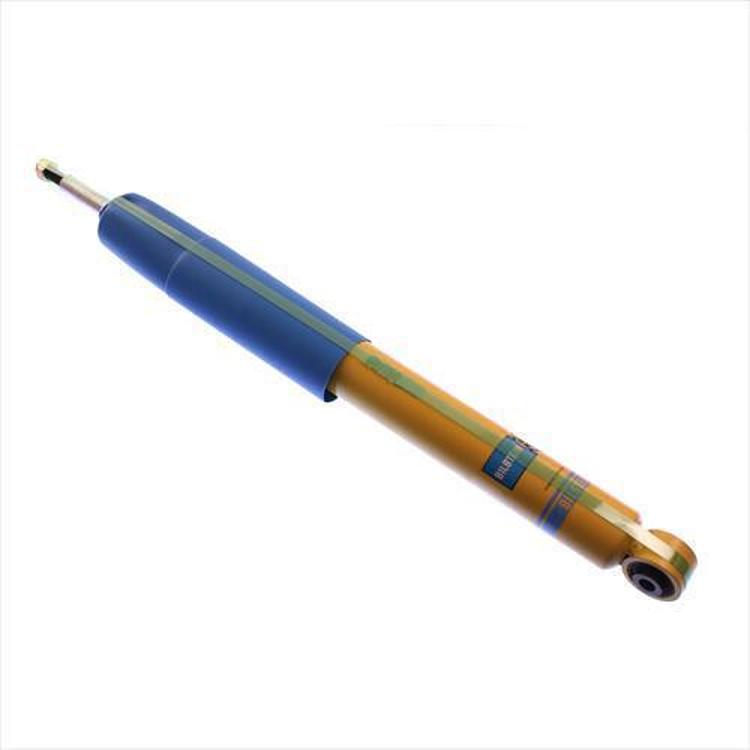

The Bilstein 4600 Series Shock Absorber, part number 24-186247, is a rear gas charged monotube shock absorber with a 2 in body diameter, a yellow finish, no reservoir and boots included. It fits 2007–2018 Toyota Tundra models in the 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro trims.
The monotube gas charged design moves heat from the oil to the outer surface of the shock body, which helps it dissipate heat efficiently. The dividing piston lets the oil expand as it heats, which helps prevent aeration (foaming) and viscosity loss so the shock keeps full damping as temperatures climb.
The tube is made by a special extrusion method for tight peak-to-valley tolerance and consistent wall thickness. The piston head tunes compression and rebound independently, and the digressive design uses fewer parts than standard twin tube and road sensing shocks. The lift/drop is 0 in., so no lift is built into this shock.
Compare the rear position and 2 in body diameter with the Tundra trims named above before ordering, since fit is trim-specific.
Key features
- Monotube gas charged construction that transfers oil heat to the outer shock body
- Dividing piston that lets oil expand as temperatures rise, limiting foaming and thinning
- Special extrusion method for a tight peak-to-valley tolerance and even wall thickness
- Seamless tube that Bilstein says improves strength and heat dissipation
- Independently tuned compression and rebound damping through the piston head
- Digressive piston layout that Bilstein says uses fewer components than standard twin tube and road sensing shocks
- Boots included with the shock
On the trail
Rear shocks on a full-size pickup carry the bed load and work hardest over washboard roads and when the rear axle lands from a drop. A gas-charged monotube design helps the damping stay even when the shock heats up during a long climb, which is useful when towing or running loose surfaces. Keep the rear spring and bump stop in mind, because a shock can only control the motion it has room to use.
Trail riding puts side loads on the upper and lower mounts, so check the hardware every few outings. Watch for seeps of oil along the shaft, a rattle from the boot, or a rear end that keeps moving after a bump. Replacing both rear shocks together keeps the truck level and the ride consistent.
- Check boot seals after dusty trips
- Inspect bushings for cracks or play
- Keep the bump stops in good condition
- Tighten mounting bolts after rough runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186247 |
| UPC | 651860592770 |
| Series | 4600 Series |
| Position | Rear |
| Fitment type | Direct Fit |
| Internal design | Monotube |
| Charge | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Lift/drop | 0 in. |
| Reservoir | No |
| Boots included | Yes |
Vehicle fitment
The manufacturer fitment list names the 2007–2018 Toyota Tundra in these trims: 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro. Other Toyota trucks and Tundra model years outside 2007–2018 are not on that list.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Bilstein 4600 Series rear gas charged monotube shock absorber with boots.
Not included: The shock has no reservoir, so no remote reservoir is part of this item.
