Overview

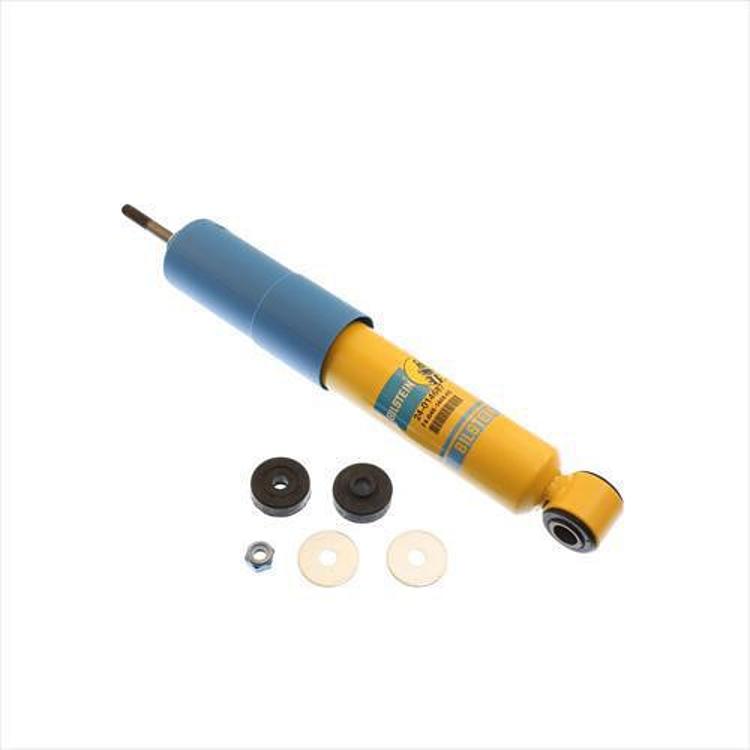

The Bilstein 4600 Series front shock absorber, part number 24-014687, is a gas charged monotube unit for the front of the 1990–1995 Toyota 4Runner (SR5). It is a direct fit part with a 2 in body diameter, a yellow finish, boots included and no external reservoir.
A monotube shock uses one pressure tube, with gas and oil kept apart by a piston, rather than the two concentric tubes of a twin tube design. The dividing piston lets the oil expand as heat builds, which limits foaming and helps damping stay steady as temperatures rise. Match the damping character to your own driving needs.
Key features
- Gas charged monotube body with a dividing piston
- Seamless tube made by a special extrusion method, described with a tight peak-to-valley tolerance and consistent wall thickness.
- Piston head lets compression and rebound damping be tuned separately, which Bilstein says supports ride comfort.
- Built with fewer parts than most twin tube and road sensing designs, per the manufacturer.
- Digressive piston design that Bilstein links to long service life.
- Boots included and a yellow finish.
Front shock maintenance
Front shocks control suspension movement under braking and steering, so their condition affects how the vehicle tracks on the road. A monotube body with a dividing piston keeps the oil from foaming during long drives, which helps the damping stay even. Inspect the boots and body for tears, dents or oil residue, since a damaged boot lets grit reach the shaft.
When a front shock is replaced, check the upper mount, the lower bolt and any bushings for cracks or play. Front shocks sit in a loaded suspension, so support the vehicle properly and work only on stands. After replacement, check alignment if the steering feels off or the tires wear unevenly.
- Check boots for tears before fitting
- Inspect upper and lower mounts for wear
- Look for oil residue on the body
- Support the vehicle on stands during the swap
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-014687 |
| UPC | 651860652146 |
| Series | 4600 Series |
| Position | Front |
| Body diameter | 2 in |
| Body type | Monotube |
| Gas charged | Yes |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift / drop | 0 in |
| Fitment type | Direct fit |
Vehicle fitment
The fitment covers the 1990–1995 Toyota 4Runner (SR5) only. Confirm your vehicle’s year, model and trim before ordering.
Front shocks mount in the front suspension, so confirm that the position matches the front of your vehicle.
Other 4Runner generations and models fall outside this fitment. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included with one front shock absorber. Mounting hardware is not part of the package, so check your installation needs before starting.
