Overview

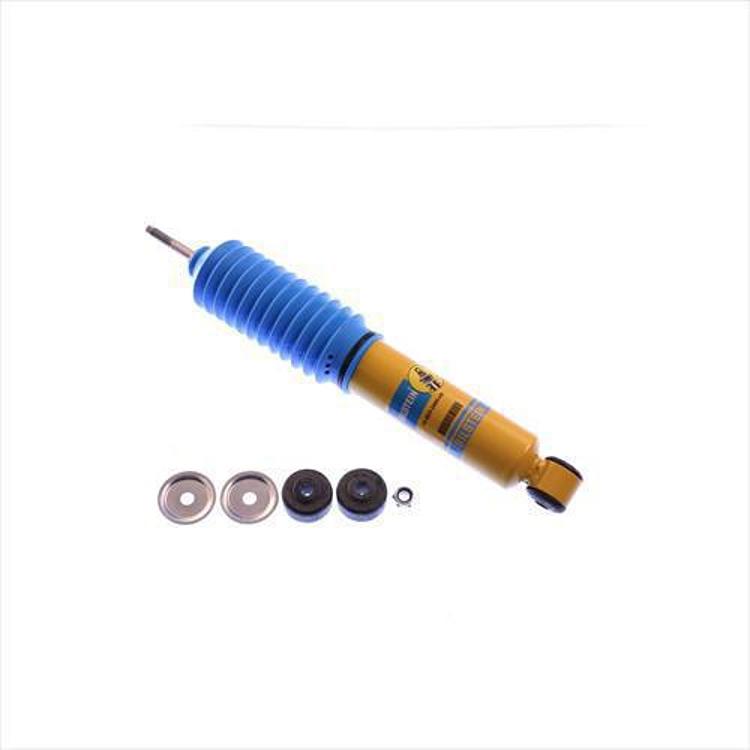

The Bilstein 4600 Series front shock absorber, part number 24-185134, is a gas-charged monotube unit with a 2 in. body diameter. It is a direct fit for Ford F-150 trucks from 1997 to 2003, the 2004 F-150 Heritage, and Ford F-250 trucks from 1997 to 1999, with trims shown below.
Monotube construction routes heat from the damping oil into the outer shock body, which is where the heat leaves the system. The dividing piston lets the oil swell as it heats up, so the fluid does not foam or lose its body. Many front-axle owners want damping that stays steady on hot days, and this design is built around that goal.
Key features
- Gas-charged monotube body carries heat from the oil to the outside of the tube.
- Dividing piston allows the oil to grow as it warms, reducing foaming and thinning.
- Extrusion process produces a tube with very tight peak-to-valley tolerance.
- Piston head tunes compression and rebound damping separately.
- Fewer internal parts than conventional twin tube and road sensing designs.
- Yellow finish, 2 in. body diameter, and protective boots included.
Front axle maintenance
The front shocks on a truck work hard during braking and when the steering is loaded over rough ground. Over time the damping can fade, and the front end may dive under braking or bounce after a dip. Replacing a worn unit restores control, but the mounts and bushings around it need the same attention.
Monotube designs keep the damping oil and gas in one tube, so the body should stay free of dents and oil seepage. Keep the protective boots in good shape, since grit on the shaft can damage the seals over time. Check the front tires for cupping, which can be a sign that the shock is no longer controlling the wheel.
- Check the front shock mounts for cracks
- Look for oil seepage at the body
- Replace front shocks as a pair
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185134 |
| UPC | 651860608471 |
| Shock series | 4600 Series |
| Position | Front |
| Type | Monotube |
| Hydraulic / gas charged | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Lift height | 0 in. lift/drop |
| Fitment type | Direct Fit |
Vehicle fitment
It fits the 1997–2003 Ford F-150 in Base, Lariat, XL and XLT trims, the 2004 Ford F-150 Heritage in XL and XLT trims, and the 1997–1999 Ford F-250 in Base, Lariat, XL and XLT trims.
The F-250 entry ends in 1999, and the 2004 F-150 entry covers only the Heritage XL and XLT trims. Other Ford models and years not named in the list are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This unit is the front-position part of the 4600 Series, so the rear shock is a separate part number. Check the position on your current shock before ordering, and keep the gas-charged body away from heat and punctures.
What’s included
One shock absorber with protective boots included.
