Artec Ultimate Dana 60 High Steer Arms – HS6020

Artec Industries

Shop Artec Industries High Steer Arms on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pair of CNC machined high steer arms for Dana 60 axles (HS6020)
  • Springless knuckle design with set screw torque adjustment
  • 1018 cold rolled steel, 1.25-inch thick, clear zinc plated
  • Studs, nuts and knuckle bolt kit not included

Description

Overview

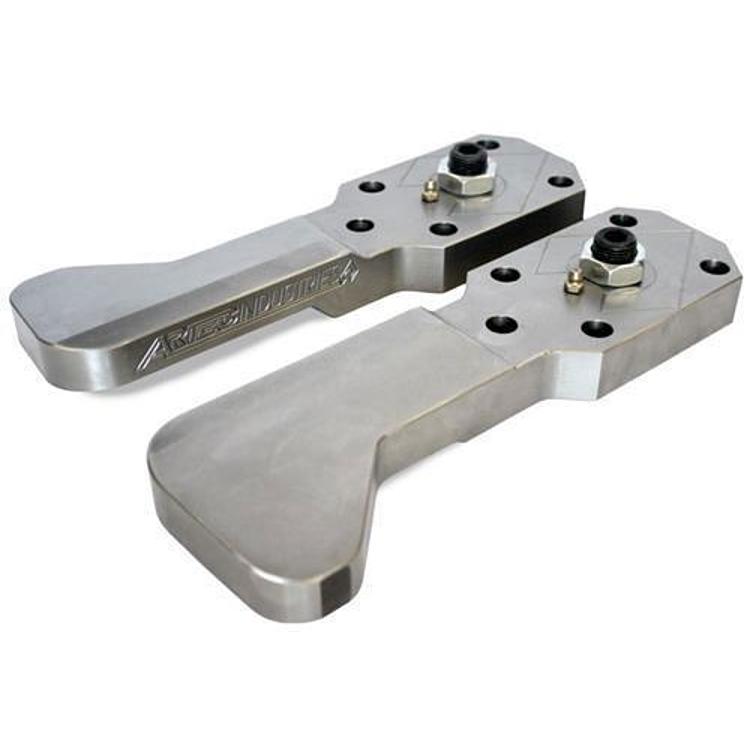

The Artec Ultimate Dana 60 High Steer Arms, model HS6020, are CNC machined steel high steer arms for Dana 60 axles, supplied in pairs. Artec designs them for owners who are just starting out with crossover steering as well as those going full hydro.

The arms are CNC machined steel for Dana 60 axles and are sold in pairs. The springless knuckle uses a set screw to set the torque that holds the knuckle assembled, which reduces slop seen in axles under moderate off-road use. The machined black section lets you set the tie rod location, and the 9 degree angle offsets knuckle kingpin inclination.

The arms let you choose how the steering links attach and where they sit. The design increases knuckle and steering strength, and it works with the optional Artec D60 Knuckle Bolt Kit, model HS6080.

Key features

  • Springless knuckle design, with a set screw that adjusts the torque holding the knuckle together
  • Machined black section allows customized tie rod location
  • 9 degree angle compensates for knuckle kingpin inclination
  • CNC machined from 1.25-inch thick 1018 cold rolled steel
  • Clear zinc plated finish
  • Grease zerk included
  • Designed to work with the Artec D60 Knuckle Bolt Kit, available separately

Crossover or full hydro steering

High steer arms move the steering links above the knuckle, which changes how the tie rod and drag link work together. Builders who start with crossover steering often add hydraulic assist later, so arms that accept both layouts make that upgrade easier to plan.

Before you pick an arm, measure your current tie rod length and the space between the axle and the frame. Wheel offset and tire size also affect how much room the steering links need through full lock, so check clearance before the first drive.

  • Check tie rod length against the new arm layout
  • Measure full-lock clearance with the tires you run
  • Plan for a knuckle hardware check after install
  • Replace worn bushings when the steering loosens

Specifications

Brand Artec Industries
Model HS6020
Axle Dana 60
Material 1018 cold rolled steel, 1.25-inch thick
Finish Clear zinc plated, machined black section
Kingpin design Springless, set screw adjustable
Angle 9 degree
Quantity Pair
UPC 816791021267

Vehicle fitment

These arms are built for Dana 60 axles. Confirm axle type and wheel clearance before fitting.

Confirm fit for your axle type and your vehicle’s year, model and trim before ordering.

Installation notes

The springless conversion hardware is included for each arm: a 3/4-inch set screw, jam nut, grease zerk, .250-inch thick load washer and upper kingpin bushing. Studs and nuts must be sourced separately. The set screw adjusts the torque needed to hold the knuckle together.

Wheel clearance is specific to these arms. Artec confirmed them with 17-inch wheels at 4.75-inch backspacing, and they will not work with factory backspaced H1 wheels. Wheels with extremely large backspacing should not be used. The bulge on the side of each arm measures 1.25-inch from the spindle mounting surface, so check the gap between arm and wheel before driving.

What’s included

The pair includes the springless conversion hardware for each arm, listed above.

Not included: studs and nuts, the knuckle, and the Artec D60 Knuckle Bolt Kit, which is available separately.

SKU: A/IHS6020 Category:

Specification

Shipping weight 18.00 lbs
Package dimensions 12.00 × 9.00 × 6.00 in
brands

Questions & Answers

Do the Artec Ultimate Dana 60 high steer arms fit my truck?

These arms are built for Dana 60 axles. Confirm your axle type and wheel clearance before fitting, since a Universal Fit label does not replace that check.

Do the arms come with studs and nuts?

The studs and nuts are not included and must be sourced separately. The knuckle and the Artec D60 Knuckle Bolt Kit are also not included.

What wheel size and backspacing have been confirmed?

The arms are confirmed for 17-inch wheels with 4.75-inch backspacing. Wheels with extremely large backspacing should not be used, and factory backspaced H1 wheels will not work.

Does the springless design still need factory kingpin springs?

No. Rather than the factory kingpin springs, the knuckle is held together with a set screw that adjusts the torque, and the conversion hardware for each arm is included.

How often should high steer arm hardware be checked?

Check it at every service and after trail trips with heavy articulation. Look for play at the tie rod ends, loose set screws and grease leaks, and re-lubricate the grease zerk regularly.

Does a steering stabilizer still matter with high steer arms?

Yes. A stabilizer damps steering input on rough ground and works alongside the arms rather than replacing them. Inspect its mounts with the rest of the steering linkage.
