Artec Industries Full Bellypan Skid Plate – JL3350

Artec Industries

Shop Jeep Wrangler JL Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2019 Jeep Wrangler (JL) Unlimited four-door (manufacturer fitment list)
  • 3/16 inch bare steel skids with zinc plated steel brackets
  • 172 lbs total; 3/4 inch more ground clearance than factory skids
  • Bare steel: finish it to prevent rust; OEM gas tank skid removal required

Description

Overview

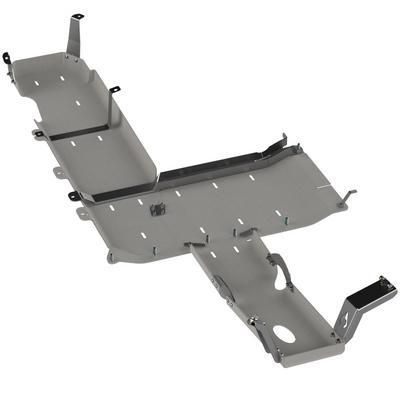

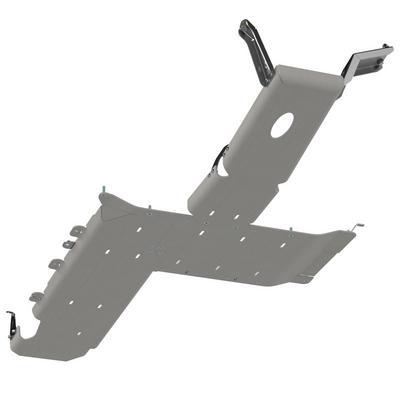

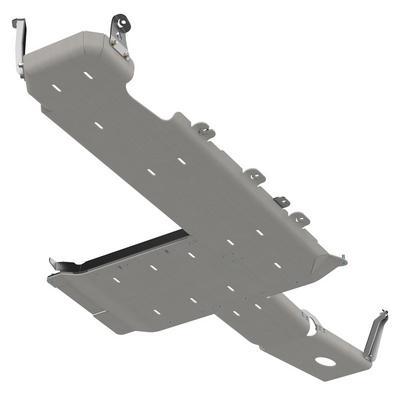

The JL3350 is a full bellypan skid plate in 3/16-inch bare steel for the 2019 Jeep Wrangler (JL) Unlimited four-door.

The kit was designed from CAD files for a fit that works alongside factory components, giving the JLU full protection underneath. The skids are 3/16-inch bare steel with 3/16-inch zinc plated steel brackets, CNC cut and formed.

A belly pan covers much of the underside, so this kit is substantial. The total weight is 172 lbs, which is 96 lbs more than the factory skids, so it suits a JL that is used hard rather than one kept light. The steel is bare and needs a protective coating to prevent rust. The gas tank skid must come off during installation, and doing that with a nearly empty tank is the easiest approach. The kit is designed for 2018-and-newer JLU models.

Key features

  • Full engine and transfer case belly pan protection
  • Designed using CAD files directly from the manufacturer
  • 3/16 inch thick bare steel skids
  • 3/16 inch zinc plated steel brackets
  • CNC cut and formed
  • Increases ground clearance by 3/4 inch over the factory skids.
  • No cutting or drilling required

Before you install a bellypan

A full bellypan changes how the Wrangler handles the trail, so it helps to plan the job before you start. The kit adds considerable weight low on the vehicle, which can change steering feel and braking distances on uneven surfaces. Factory skids are lighter, so the extra mass is a trade for coverage rather than a free upgrade.

Bare steel needs a finish on day one. Remove surface rust, degrease the plates, and apply a coating such as paint or a rust-inhibiting primer before the first install. Recheck the coating after rock strikes, because chips can start rust that spreads under the plate. Plan the gas tank skid removal carefully, since fuel system work is the step most worth planning.

  • Plan the gas tank skid removal for a near-empty tank
  • Coat all bare steel surfaces before installation
  • Inspect the coating after each rough trail trip
  • Keep the basic tools needed for the job on hand

Specifications

Brand Artec Industries
Part number JL3350
Product type Full bellypan skid plate (engine and transfer case skid)
Skid material 3/16 inch bare steel
Bracket material 3/16 inch zinc plated steel
Finish Bare steel (will rust if not finished)
Total weight (per Artec) 172 lbs
Extra weight over factory skids (per Artec) 96 lbs more
Ground clearance gain (per Artec) 3/4 inch over factory skids
Installation No cutting or drilling required
Fitment type Direct fit

Vehicle fitment

Fits the 2019 Jeep Wrangler (JL) Unlimited four-door. Other years and two-door Wranglers are outside this fit.

The stored fitment list shows the 2019 Wrangler JL Unlimited four-door only (Unlimited Rubicon, Sahara, Sport and Sport S). Artec’s text says 2018 plus, but other years and the two-door Wrangler are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The original equipment gas tank skid must be removed, and the easiest time to do it is when the tank is near empty. The part is bare steel and will rust unless finished, and some minor surface rust may be present on arrival. Plan the removal with general mechanics skills and basic tools.

SKU: A/IJL3350 Categories: ,

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeep does the Artec JL3350 bellypan fit?

The JL3350 fits the 2019 Jeep Wrangler (JL) Unlimited four-door in Rubicon, Sahara, Sport and Sport S trims. It is designed for 2018-and-newer JLU models.

How heavy is the Artec JL3350 bellypan?

The kit weighs 172 lbs total, which is 96 lbs more than the factory skids. It raises ground clearance by 3/4 inch over the factory skids.

Does the JL3350 come painted?

No. The skid plates are bare steel and will rust unless finished, and some small surface rust may be present on arrival. Coat the steel before use.

Do I have to remove the factory gas tank skid?

Yes. Artec says removing the OEM gas tank skid is required, and recommends doing it when the tank is near empty. The instructions give ideas for removing it.

Does a bellypan affect approach or breakover angles?

It can. The lowest point under the vehicle is the kit's edges and corners, so approach and breakover behavior depends on where the plate ends. Check the front and rear edges on steep climbs.
