Artec JK Under Armor Belly Pan Kit (Natural Aluminum) – JK1020

Artec Industries

$2,107.60In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec JK Under Armor belly pan kit, JK1020, natural aluminum
  • Fits 2007–2016 Jeep Wrangler (JK) two-door trims
  • 1/4-inch 6061 aluminum skid plate with 3/16-inch zinc plated steel brackets
  • Modular, with all bolts countersunk under the skid

Description

Overview

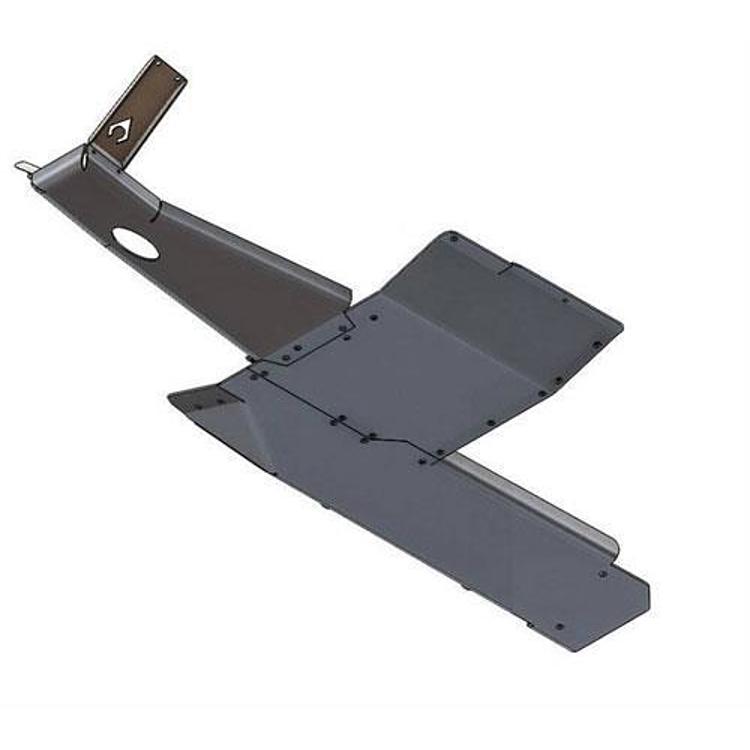

The Artec JK1020 is a natural aluminum belly pan skid plate kit, the JK Under Armor, for two-door 2007–2016 Jeep Wrangler (JK) models. It is designed from factory CAD files, so the fit follows the factory components. It protects the oil pan, transmission pan, gas tank, front exhaust and transfer case.

The skid plate is 1/4-inch 6061 aluminum and the brackets are 3/16-inch zinc plated steel. The parts are cut by CNC laser and formed on custom rolled dies for strength and a smooth underside. The kit is for two-door trims, so Unlimited four-door models are not covered.

Key features

  • 1/4-inch 6061 aluminum skid plate
  • 3/16-inch zinc plated steel brackets
  • All bolts under the skid plate countersunk
  • Nuts pressed into steel brackets for one-tool removal
  • Modular design, with one section removable for service
  • Clearanced near the rear drive yoke shaft
  • Works best with Artec heavy duty crossmembers.

Trail use and clearance

A belly pan skid plate protects the underside from rocks, stumps and ledges, especially at the oil pan, transmission and transfer case. Aluminum resists many hits but can still dent, so inspect after rough trail runs. Dents that press toward the oil pan or transfer case deserve attention, since a damaged pan can leak and a bent bracket can rub on moving parts.

Clearance is part of any belly pan choice. Check the space between the plate and the drive shaft, exhaust and steering linkage before the first trip, and recheck after tire or suspension changes. Bolts can loosen from vibration and flex, so tighten the fasteners after the first few outings and look for wear where the brackets meet the frame.

  • Inspect for dents after rocky trails
  • Recheck clearance after suspension changes
  • Retighten fasteners after the first few runs

Specifications

Brand Artec Industries
Part number JK1020
UPC 816791021489
Type Undercarriage skid
Finish Natural aluminum
Skid plate material 1/4-inch 6061 aluminum
Bracket material 3/16-inch zinc plated steel
Body style Two-door
Installation Bolts in place, no cutting or drilling required
Removal One section can be removed for service without taking the whole pan

Vehicle fitment

It fits the 2007–2016 Jeep Wrangler (JK) two-door in 70th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

The list does not include the Unlimited four-door JK models, the JL or the 2004–2006 LJ. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

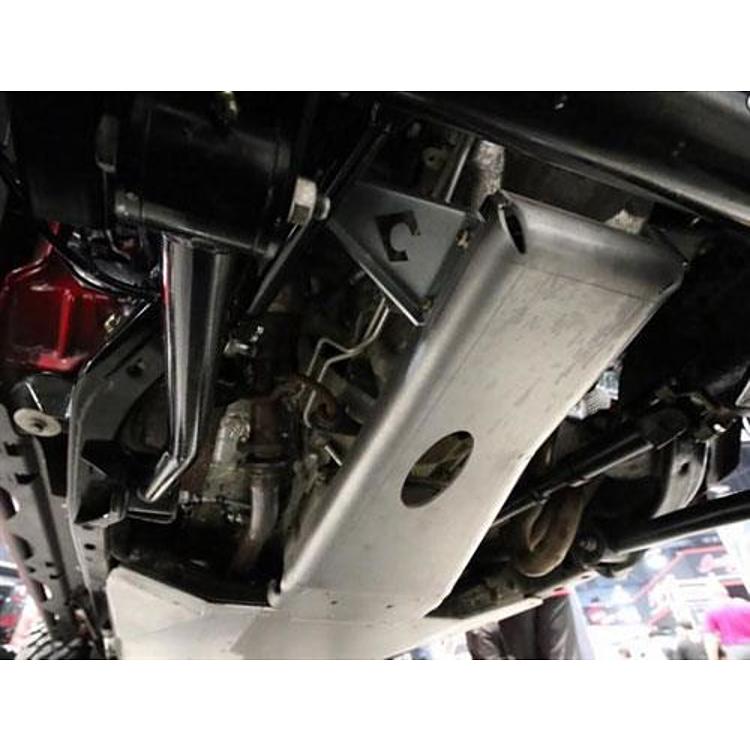

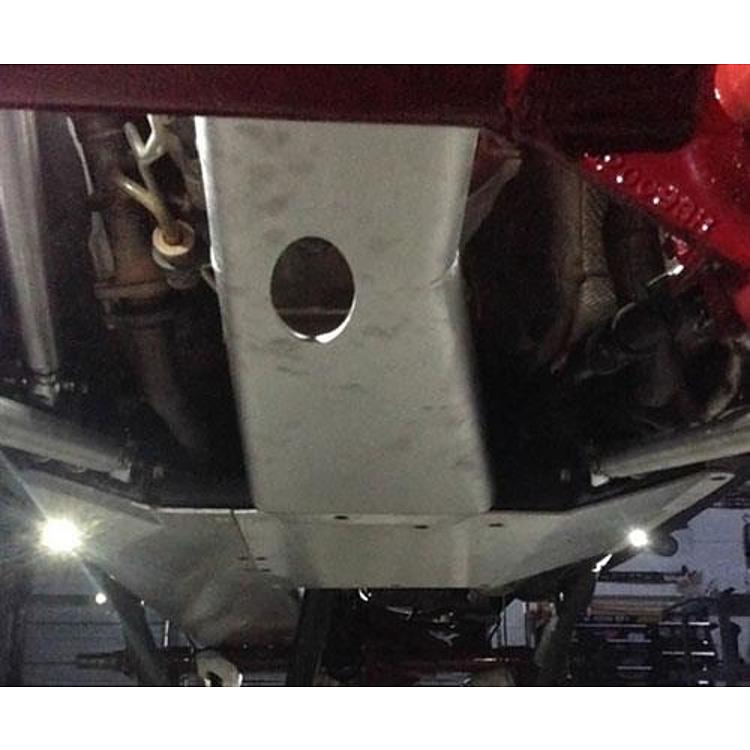

It is a bolt-in kit, though fitting it takes general mechanical skills. Some holes that use factory crossmember hardware are not countersunk. The clearance near the rear drive yoke shaft is built in to prevent rubbing. Using Artec HD crossmembers gives a smoother underside.

What’s included

The kit includes the belly pan skid plate sections and their steel brackets. One section can be removed for service without taking the whole pan. Check the fasteners against your installation before starting.

SKU: A/IJK1020 Category:

Specification

Shipping weight 90.00 lbs
Package dimensions 62.00 × 32.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Artec JK1020 fit a 2012 Jeep Wrangler JK Sahara?

Yes. The Sahara trim is covered in the 2007–2016 JK range, which includes 2012 models. Confirm the body style is two-door, because the kit is made for two-door trims.

Does the JK1020 need the Artec heavy duty crossmember?

Not required, but it works best with Artec heavy duty crossmembers. The long arm HD crossmember with link mounts needs a loop delete when used with this kit.

Does the JK1020 need the gas tank removed?

No. The kit bolts in place, and removing the gas tank is not needed. A small amount of trimming may be needed on the factory gas tank skid plate.

How often should a belly pan be checked?

Inspect after rocky or off-camber trail runs. Look for dents, cracked brackets, loose fasteners and rubbing near the drive shaft. Tighten hardware after the first few trail outings, since rough ground can loosen bolts over time.
