Overview

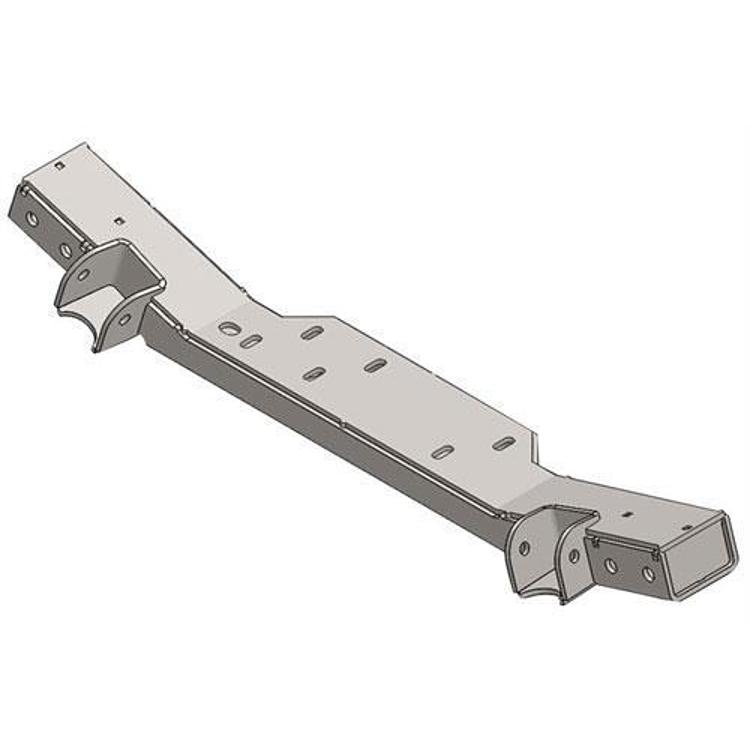

The Artec JK2004 is a heavy-duty crossmember with link mounts in bare steel, for the 2007–2016 Jeep Wrangler (JK), two-door and Unlimited four-door. It is designed to offer more underbody protection than the factory sheet metal.
The crossmember is made from 1/4-inch thick steel, CNC cut and formed from factory CAD files. It is pre-welded and fits 2.625-inch wide joints or bushings with 9/16-inch through holes. It is built for high abuse use and is designed to fit the factory components.
Key features
- 1/4-inch thick steel for high abuse situations
- Pre-welded for quicker installation
- Link mounts
- Nuts pressed into steel brackets for one-tool removal
- Fits 2.625-inch wide joints or bushings
- Designed to work with the Artec JK Under Armor bellypan
- Bare steel with no coating listed
Crossmember and skid plate pairing
A crossmember carries the load between the frame rails and supports the skid plate that protects the drivetrain underneath. A heavy-duty steel version handles rock strikes and off-road loads that the factory sheet metal cannot. Matching the crossmember to the skid plate and the rest of the underbody keeps the protection consistent across the whole system.
Crossmember mounts and bushings wear over time, especially on a vehicle that sees hard trail use. Checking the joints and fasteners after each season of off-road driving helps catch looseness early. Steel that is left bare can rust at welds, so inspect those spots during service and touch up any bare areas as needed.
- Inspect bushings and link mounts for wear at each service
- Check welds and bare steel for corrosion
- Plan exhaust clearance before installing
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | JK2004 |
| UPC | 816791021540 |
| Type | Undercarriage crossmember |
| Material thickness | 1/4-inch steel |
| Finish | Bare steel |
| Joint fit | 2.625-inch wide joints or bushings |
| Through holes | 9/16-inch |
| Nut size | M12 changed to 3/8-inch |
| Quantity | One crossmember |
Vehicle fitment
It fits the 2007–2016 Jeep Wrangler (JK) in 70th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, and in Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S and Unlimited X trims.
The list does not include the 2017 and later JL or the 1997–2006 TJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation requires general mechanics skills, and the exhaust must be modified. Plan for new 3/8-inch bolts and washers before starting, because the crossmember does not come with skid plate hardware. Being pre-welded keeps the install quick and easy.
What’s included
The crossmember is pre-welded bare steel. New skid plate hardware comes with the bellypan kit, not with this crossmember.
