Overview

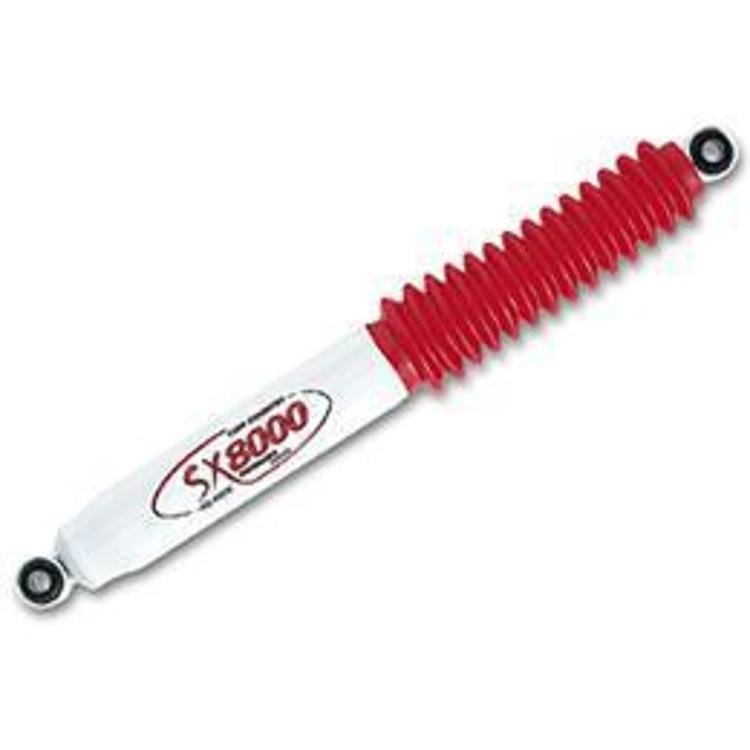

The Tuff Country 61302 is an SX8000 shock absorber with a twin-tube, nitrogen gas charged body. It is set up for a 3 in. lift, and its fit runs from 1988 through 2014 across several Dodge Ram, Ford, Jeep and Toyota trucks. Confirm the position of part number 61302, rear or front, before ordering.
Polyurethane bushings and a heavy-duty 5/8 inch piston rod are used. The nitrogen gas pressure is meant to reduce fade and speed up shock response. Covered trucks include the Dodge Ram 1500 from 1994 to 2001, the Ram 2500 and 3500 from 1994 to 2010, the Ford F-150, Super Duty F-250 and F-350 models, the Jeep Wrangler YJ, and the Toyota Tacoma and Tundra.
Key features
- Twin-tube, nitrogen gas charged design
- Polyurethane bushings
- Heavy-duty 5/8 inch piston rod
- Quicker shock response
- Rear position in the specifications
- Lift note of 3 in. Lift
Matching shocks to axle position
Front and rear shocks do different jobs, so the position of a shock matters as much as its length. A rear shock controls axle motion under load and works with the leaf springs or coils to keep the tires planted. A front shock has to handle steering angles and braking forces, so its mounts and bushings experience a different stress pattern.
Before buying, confirm which position the shock is meant for and compare it with the old unit’s eye-to-eye length and stud placement. Old shocks often show the wear pattern of their position: rear units tend to have worn lower mounts, while front units show more wear at the upper bushing and stud.
- Compare old and new eye-to-eye length
- Match the shock to its axle position
- Inspect mounts for wear before fitting
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 61302 |
| UPC | 10698815613026 |
| Series | SX8000 |
| Position | Rear (specifications field) |
| Position note | One product detail reads front shock |
| Design | Twin-tube, nitrogen gas charged |
| Piston rod | 5/8 inch, heavy duty |
| Bushings | Polyurethane |
| Fitment type | Direct fit |
| Lift height note | w/3 in. Lift |
Vehicle fitment
Coverage runs from 1988 to 2014. Dodge fit includes the Ram 1500 from 1994 to 2001, the Ram 2500 and 3500 from 1994 to 2010, and the Ram 2500 and 3500 from 2011 to 2013 and 2011 to 2012. Ford fit includes the F-150 from 1997 to 2003 with the 2004 Heritage edition, and the F-250 and F-350 Super Duty from 2005 to 2014. Jeep fit is the Wrangler YJ from 1988 to 1995. Toyota fit includes the Tacoma from 2005 to 2014 and the Tundra from 2007 to 2014.
The list does not include the Jeep Wrangler JK, Wrangler TJ or LJ, or the 2004 to 2014 Ford F-150 apart from the Heritage edition. The specifications say rear while one product detail says front shock, so confirm the position before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lift setup is 3 in., so match that to your rear suspension height before installing. Confirm the position of part number 61302 first, since front and rear units fit different mounts.
What’s included
One SX8000 shock absorber, sold individually.
Not included: Check mounting hardware against your installation before starting.
