Overview

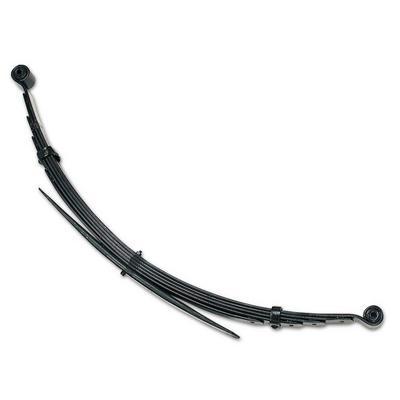

The Tuff Country 6 inch lift leaf spring (part number T/C19670) is a single rear leaf spring for Chevrolet and GMC trucks. It is rated for a 5 to 6.99 inch lift and covers trucks from 1969 to 1991.
The fitment covers the 1969–1986 Chevrolet K10 and K20 pickups and Suburbans, the 1975–1986 Chevrolet K5 Blazer, the 1969–1974 and 1979–1986 GMC K15, K25, K1500 and K2500 models, the 1970–1991 GMC Jimmy, and the 1986 GMC C2500 Suburban. The springs are tapered, snub rolled, Teflon padded and pre-set, with polyurethane bushings included.
Key features
- 6 inch lift leaf spring, rated for 5 to 6.99 inches
- Single rear spring
- Tapered design
- Snub rolled
- Teflon padded
- Pre-set
- Polyurethane bushings included
Rear axle and shackle checks
A rear leaf spring at a 6 inch lift carries more of the axle’s weight and the arch changes noticeably, so the spring hangers, shackles and U-bolts see more stress. Before fitting, check every bushing and bolt for wear, and replace cracked or bent parts. Rear shocks and brake lines are usually checked at the same time, since the axle sits in a different position under the new height.
Driveshaft angle becomes an issue with a larger rear lift, so inspect the U-joints and slip yoke after installation. Vibration at highway speed often points to a driveline angle problem. Re-torque U-bolts after the first few drives and check them again during routine service. A rear spring that sags, shows cracked leaves, or loses its arch should be replaced.
- Inspect hangers and shackles for wear
- Check U-joints and slip yoke after install
- Re-torque U-bolts after the first drives
- Look at brake lines for stretch
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | T/C19670 |
| Position | Rear |
| Quantity | Single spring |
| Bushings | Polyurethane included |
| Lift height range | 5 to 6.99 in |
| Construction | Tapered, snub rolled, Teflon padded, pre-set |
| Fitment | Direct fit |
Vehicle fitment
It fits 1969–1991 Chevrolet and GMC trucks, including the K10, K20, K15, K25, K1500 and K2500 pickups and Suburbans, the Blazer, and the Jimmy, across the trims covered.
The list does not include Ford trucks or any Chevrolet or GMC model after 1991. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This spring is rated for a 5 to 6.99 inch lift at the rear, so check the lift height before ordering. A second spring is needed for the other side of the rear axle.
What’s included
A single rear leaf spring with polyurethane bushings. Not included: a second spring for the other side of the axle.
