Overview

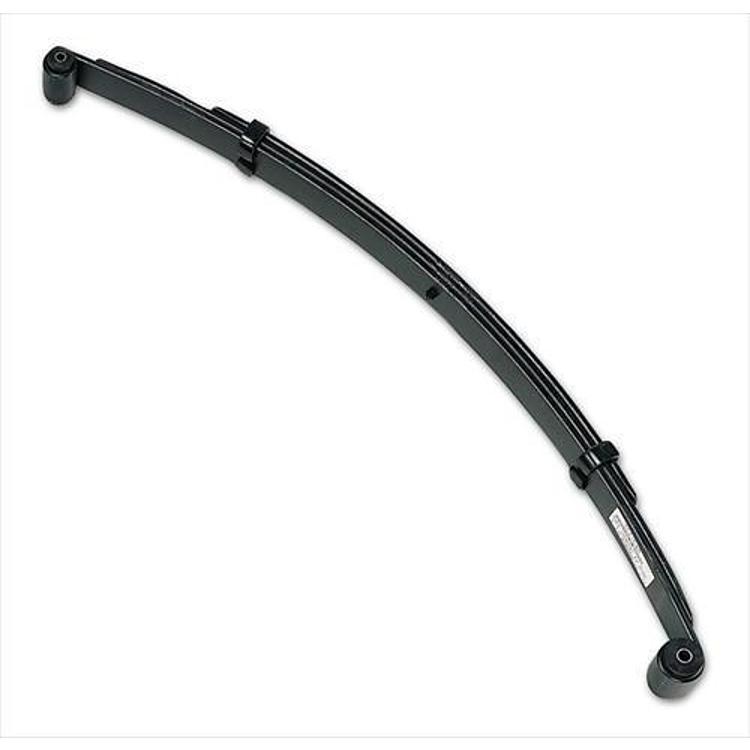

The Tuff Country 18670 is a 6 inch lift front leaf spring for Chevrolet and GMC trucks from 1973 to 1991, including Blazer, Jimmy and K-series models. It is sold as each, and two are required per vehicle.
The lift height range is 5 to 6.99 inches for this front spring. It is tapered, snub rolled, Teflon padded and pre-set, with polyurethane bushings included.
Key features
- 6 inch lift front leaf spring
- Tapered, snub rolled and Teflon padded construction
- Pre-set spring design
- Polyurethane bushings included
- Sold as each, two required per vehicle
Planning a 6 inch lift
A 6 inch front lift is a large change for the axle, the steering and the driveline. The control arm angles, track bar and steering links all work at a new height, so each should be checked. Going from a stock height to this lift often means updating more than one component.
Shock absorbers should be long enough to cover the full suspension travel at this height, and a worn shock is a poor match for a larger lift. Brake lines and ABS wiring may need to be checked for length. Plan to re-torque the fasteners after the first few drives.
- Check the track bar and steering links
- Inspect brake line and ABS wire length
- Confirm driveshaft angles after the install
- Replace worn ball joints during the install
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 18670 |
| UPC | 70000474815 |
| Position | Front |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Spring quantity | Single spring |
| Bushings | Polyurethane bushings included |
| Required per vehicle | 2 |
Vehicle fitment
It fits 1973–1974 and 1987–1991 Chevrolet Blazer, 1973–1986 Chevrolet K10, K20 and K5 Blazer, 1986 GMC C2500 Suburban, 1973–1991 GMC Jimmy, and 1973–1986 GMC K15, K25, K1500 and K2500 models with Suburban bodies, in the trims named for each.
The list does not include Chevrolet V10 or V20 Suburban models or any year after 1991. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6 inch lift has a larger effect on front ride height and steering geometry than shorter springs, so plan for a full front alignment and a driveline angle check after the swap.
What’s included
Front leaf spring with polyurethane bushings, sold as each.
Not included: The second front spring needed for a pair.
