Overview

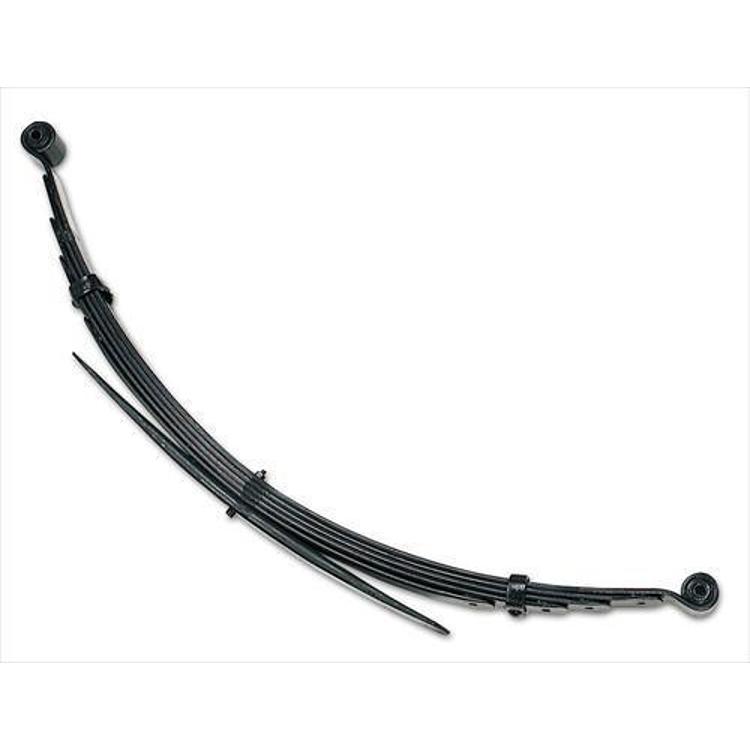

The Tuff Country 19671 is a rear leaf spring for a 6 inch lift, measuring 56 inches long with polyurethane bushings included. It fits Chevrolet and GMC trucks and SUVs from 1969 to 1991, including Blazer, K10, K20, K1500 and K2500 models and the 1988 Chevrolet V20 Suburban.
The listed lift height range is 5 to 6.99 inches, which places this spring in the heavier-lift group of the Tuff Country line. The springs are tapered, snub rolled and pre-set, and the part is sold each with two required.
Key features
- 6 inch lift rear leaf spring, 56 inch length
- Tapered and snub rolled leaves
- Teflon padded
- Pre-set spring design
- Polyurethane bushings included
- Lift height range of 5 to 6.99 inches
- Direct fit for the vehicles in the fitment section
Choosing a lift height
Rear leaf springs set the rear ride height, so the lift they provide affects almost everything else at the back of the truck. A taller spring changes the angle of the driveshaft, which is why many owners also check pinion angle after a lift and consider a driveshaft with a slip yoke or a shorter length. Shock absorbers and brake lines usually need to be checked against the new height, since the extended suspension can stretch both.
Bump stops and shackles are often replaced along with the springs on older trucks. Worn shackles and bushings allow the axle to move unevenly, and an aging spring pack that has taken years of load may not return to its original height. Inspect the leaves for cracks and listen for creaking when driving over uneven pavement, since either can signal that the springs are fatigued.
- Check pinion angle after installing a lift
- Inspect shock length for the new ride height
- Replace worn shackles and bump stops together
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 19671 |
| UPC | 70000519781 |
| Position | Rear |
| Spring quantity | Single spring, sold each (2 required) |
| Spring length | 56 inches |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Bushings | Polyurethane, included |
Vehicle fitment
The manufacturer list covers 1969 through 1991 Chevrolet Blazer, K10, K20 and Suburban models, GMC Jimmy, K15, K25, K1500, K2500 and Suburban models, and the 1988 Chevrolet V20 Suburban with Scottsdale and Silverado trims.
Years after 1991 are not included in this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear leaf spring with polyurethane bushings per unit. Two are required.
