Overview

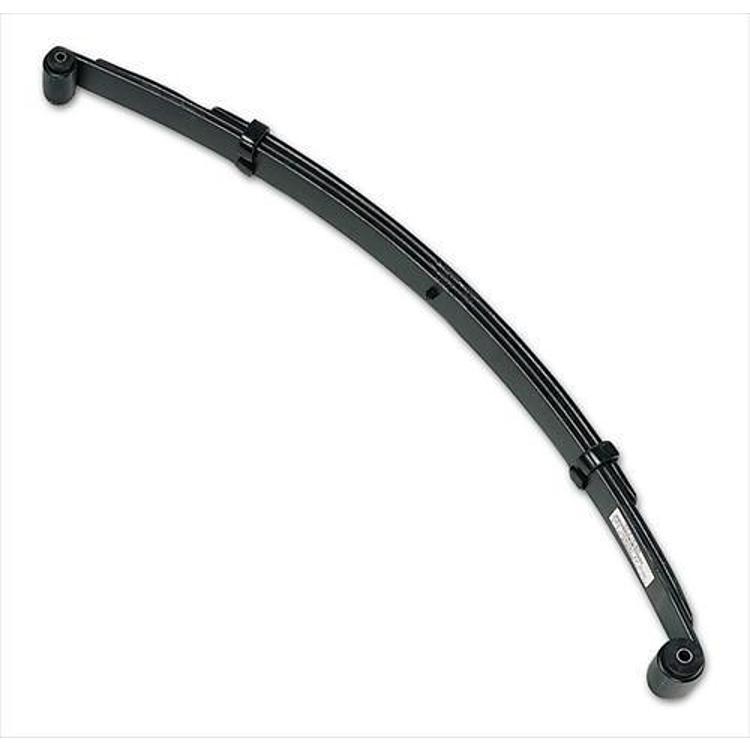

The Tuff Country 18470 is a 4 inch lift front leaf spring for 1973–1991 Chevrolet and GMC trucks, covering Blazer, Jimmy and K-series models. Two springs are required per vehicle, one for each front side, and polyurethane bushings are included.
The spring carries the EZ-Ride label and is pre-set and Teflon padded. Its lift height range is 0 to 4.99 inches.
Key features
- 4 inch lift front leaf spring
- EZ-Ride design label
- Pre-set, Teflon padded and snub rolled construction
- Polyurethane bushings included
- Two required per vehicle
Before you buy
A 4 inch front lift raises the axle and changes the angle of the control arms and steering links. The geometry changes most at the outer ends of the links, so worn tie rod ends and ball joints should be checked before the install. Replacing them while the front is apart is much simpler than doing it later.
Because the spring sits under the axle, the shock absorbers are a common upgrade at this height. Longer shocks keep the damping in its working range, and fresh shackle bushings reduce play. Keep a torque wrench handy and re-check the fasteners after the first few drives, and keep spare hardware on hand.
- Check the front brake lines for length
- Inspect the steering stabilizer and drag link
- Plan a full alignment after installation
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 18470 |
| UPC | 700044992308 |
| Position | Front |
| Lift | 4 inch |
| Lift height range | 0 to 4.99 inches |
| Design | EZ-Ride |
| Bushings | Polyurethane bushings included |
Vehicle fitment
It fits 1973 and 1987–1991 Chevrolet Blazer, 1973–1986 Chevrolet K10, K20 and K5 Blazer, 1986 GMC C2500 Suburban, 1975–1991 GMC Jimmy, and 1973–1986 GMC K15, K25, K1500 and K2500 models with Suburban bodies, in the trims named for each.
Chevrolet V10 and V20 Suburban models and years after 1991 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Four inch front springs change ride height and steering geometry, so the front alignment and driveline angles should be checked once the lift is complete.
What’s included
Leaf spring with polyurethane bushings. Two are required per vehicle.
Not included: The second front spring needed for the other side.
