Overview

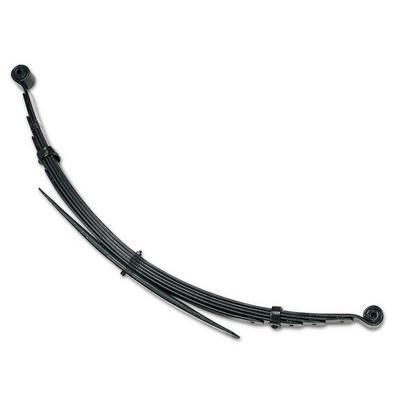

The Tuff Country 5 inch lift leaf spring (part number T/C19590) is a single rear leaf spring for Chevrolet and GMC trucks. Its lift height range is 5 to 6.99 inches. It fits the 1988–1998 Chevrolet Blazer, the 1988–1998 Chevrolet K1500 and K2500, the 1988–1991 and 1995–1998 GMC Jimmy, the 1988–1998 GMC K1500 and the 1988–2000 GMC K2500.
Tuff Country says its leaf springs are known for durability and ride quality. The springs are tapered, snub rolled, Teflon padded and pre-set, and each spring comes with polyurethane bushings.
Key features
- 5 inch lift leaf spring
- Single rear spring
- Tapered design
- Snub rolled
- Teflon padded
- Pre-set
- Polyurethane bushings included
Rear lift and load
A rear spring at this lift height changes the way the truck carries cargo and passengers, and the rear axle sits at a different angle than it did stock. Look at the rear tires for uneven wear after installation, and check that the pinion angle still works with the driveshaft. Rear lift also raises the center of gravity, so the way the truck handles on pavement changes as well.
Shackles, spring hangers and the spring eye bushings take the most movement, so inspect them at the same time as the new spring. Bump stops need a check too, since the new ride height affects how far the axle can travel before the stop contacts. Taking the time to set the rear spring evenly, with the truck loaded as it normally is, helps keep the ride consistent.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | T/C19590 |
| Position | Rear |
| Quantity | Single spring |
| Bushings | Polyurethane included |
| Lift height range | 5 to 6.99 in |
| Construction | Tapered, snub rolled, Teflon padded, pre-set |
| Fitment | Direct fit |
Vehicle fitment
It fits the 1988–1998 Chevrolet Blazer in the Base, Cheyenne, LS, LT, Scottsdale, Silverado and Silverado Sport trims, the 1988–1998 Chevrolet K1500 and 1988–1998 Chevrolet K2500 in their trims, the 1988–1991 and 1995–1998 GMC Jimmy, the 1988–1998 GMC K1500 and the 1988–2000 GMC K2500.
The list does not include the 1987 and earlier trucks, the 1999 and later Chevrolet or GMC models, or any Ford. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This spring is a rear part with a 5 to 6.99 inch lift range, so check the lift on your truck before ordering. A second spring is needed for the other side of the rear axle.
What’s included
A single rear leaf spring with polyurethane bushings. Not included: a second spring for the other side of the axle.
