Overview

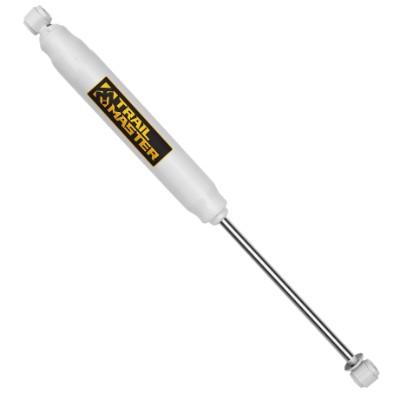

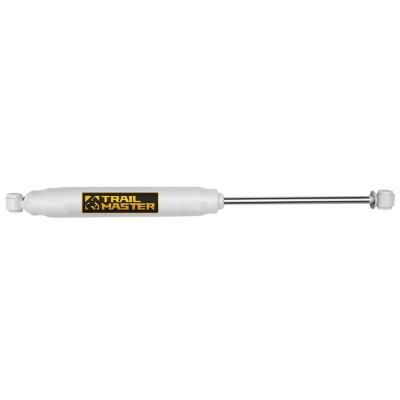

The Trail Master nitrogen gas twin tube shock absorber (part number TM73235002) is a rear shock for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ) Unlimited. It is designed for a 4 inch suspension lift, which places it at the higher end of the TJ and LJ lift range.
The shock is nitrogen stabilized and uses 10-stage velocity sensitive valving. The piston rod is 5/8 inch and chrome hardened, and an optional shock boot is available as a separate part.
This rear shock fits the LJ Unlimited and Unlimited Rubicon and the TJ trims in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X. The 4 inch lift range is the sizing point, so confirm your lift before ordering. A lower lift calls for the shorter-lift Trail Master version.
Key features
- Rear position for TJ and LJ Wranglers
- Twin tube nitrogen stabilized design
- 10-stage velocity sensitive valving
- 5/8 inch chrome hardened piston rod
- Designed for a 4 inch lift
- Nitrogen gas charge
Lift height and rear shock sizing
Lift height is the main factor when sizing a rear shock for a TJ or LJ. A shock designed for a 4 inch lift extends and compresses through a range that matches the rear suspension at that height, so it works best when the lift is correct. A mismatched shock length can limit travel, cause bottoming or leave the rear end feeling loose.
Before buying, measure the rear suspension height on the Jeep and compare it with the lift the shock is designed for. Taller bumpers, heavier loads and larger tires all add stress to rear damping, so check the rod, seals and mounts whenever they change. Replacing rear shocks as a pair keeps both sides balanced over rough ground.
- Measure rear height before buying
- Consider load and bumper weight
- Check mounts when tires are upsized
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM73235002 |
| Shock series | Nitrogen gas twin tube |
| Location | Rear |
| Shock type | Twin tube, nitrogen stabilized |
| Valving | 10-stage velocity sensitive |
| Piston rod | 5/8 inch chrome hardened |
| Lift range | 4 in |
| Shock boot | Optional, separate part |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2004–2006 Jeep Wrangler (LJ) in the Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
The list does not include the front position, the YJ or JK Wrangler, or any Cherokee. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shock is designed for a 4 inch lift, so it is not sized for a lower lift height. Check the lift on your TJ or LJ before ordering, since lift height is the main sizing factor for this rear shock.
What’s included
One rear nitrogen stabilized twin tube shock. Not included: the optional shock boot.
