Trail Master 4.0 Inch Lift Kit with NCG Shocks – TM3440-20013

Trail Master

Shop Trail Master Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 4-inch coil spring lift kit with NGS shocks, model TM3440-20013
  • Front and rear coil springs, lower control arms and sway bar end links
  • Max tire size 33×12.50

Description

Overview

The Trail Master 4.0-inch Lift Kit with NGS Shocks, model TM3440-20013, is a coil spring kit with a short arm suspension. It lifts the vehicle 4 inches, is in the 3 to 4.99 inch range and has a maximum tire size of 33×12.50.

Front and rear coil springs make up the lift in this 4-inch kit, and the lower control arms are included to locate the front suspension at the new height. The sway bar end links are part of the same package, so the sway bar keeps its connection to the suspension.

The suspension type is short arm, in the 3 to 4.99 inch lift range. NGS shocks are included, and the maximum tire size is 33×12.50, so check that figure against your wheel choice.

The kit carries a lifetime warranty and is designed for straightforward installation. Because it changes the front geometry, set the alignment after the install.

The lift is 4.0 inches and the suspension is short arm. The kit includes front and rear coil springs and lower control arms, so the front suspension is rebuilt around the new springs.

Key features

  • 4.0-inch lift

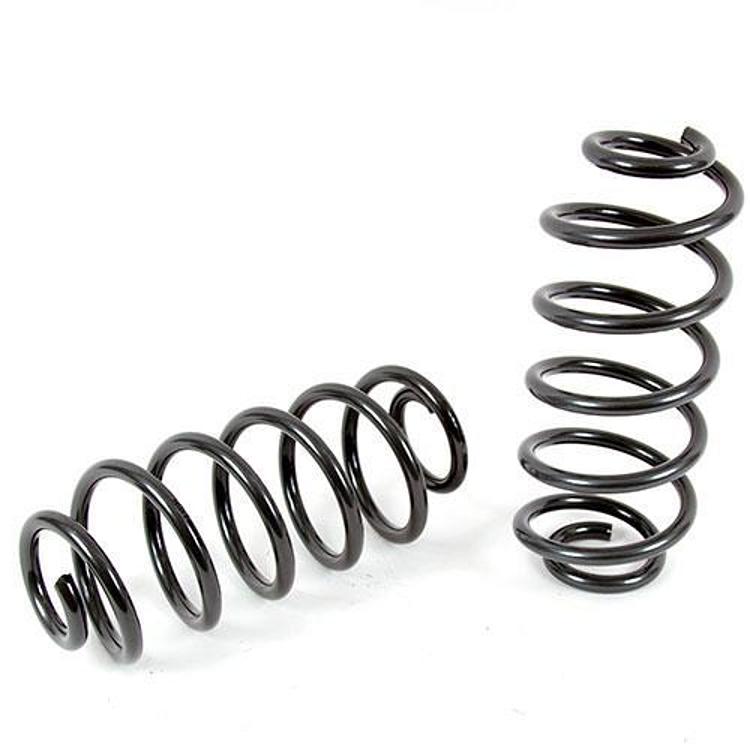

  • Front and rear coil springs

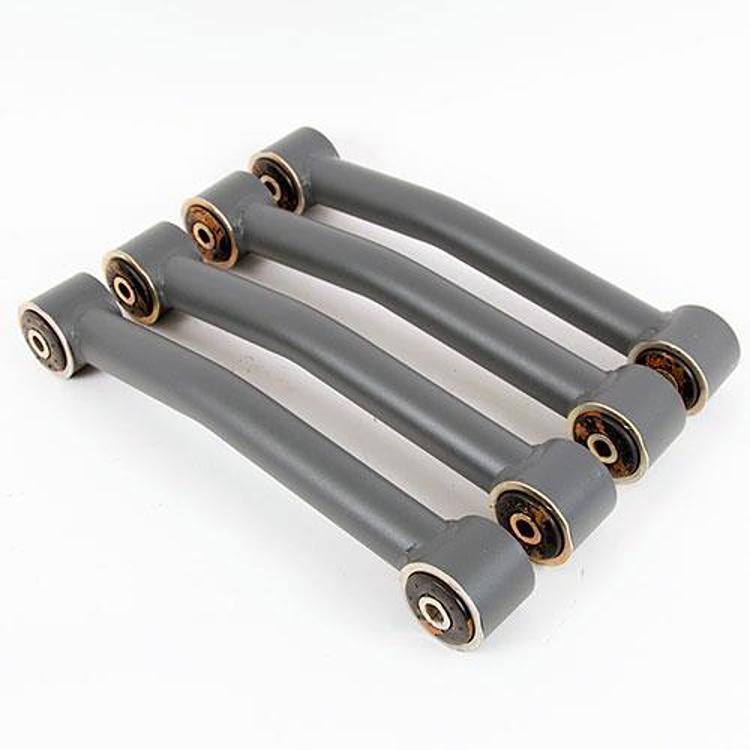

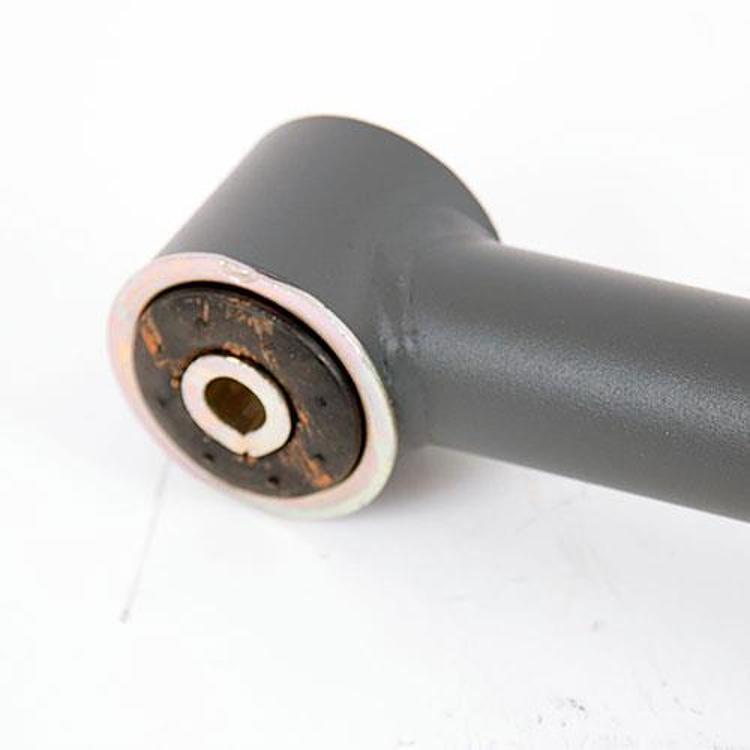

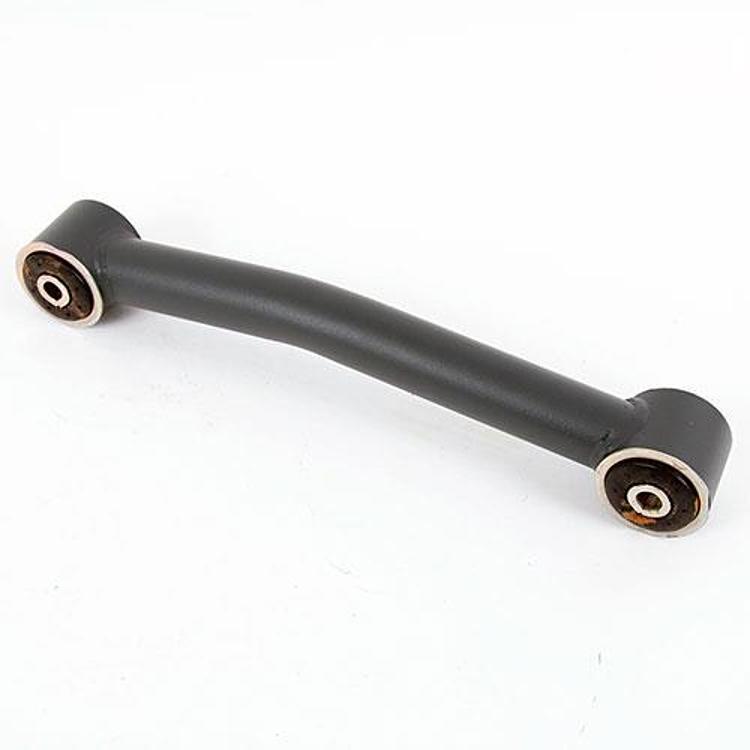

  • Lower control arms

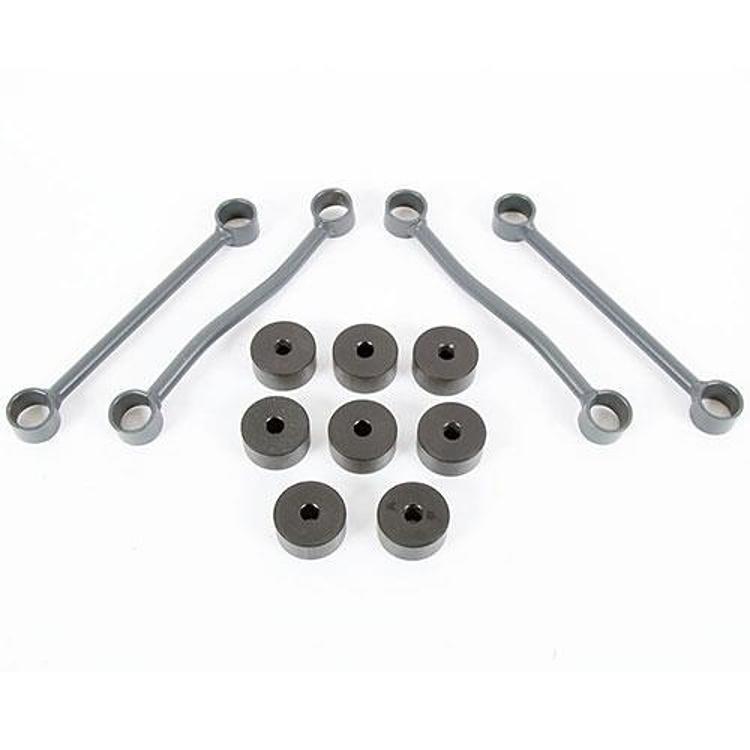

  • Sway bar end links
  • NGS shocks included
  • Designed for straightforward installation

Choosing a 4-inch coil spring lift

A coil spring lift raises the body by replacing the stock springs, so the ride height and spring rate both change. Short arm designs use shorter control arms to set the new geometry, which affects caster and camber and is why the front end needs an alignment afterward. Before buying, compare the lift against your planned tire size, because a taller lift changes how much room a tire has at full turn and in the wheel well.

Once installed, look at the brake lines, the sway bar links and the shock length, since all of them move with the new height. Recheck fasteners on the control arm mounts after the first few drives, and inspect the springs for cracks or sagging at each service. Worn ball joints and bushings tend to show up sooner on a lifted truck, so replace them when they show play rather than waiting for a noise.

  • Set the alignment after the lift is installed
  • Check brake lines for stretch at full droop
  • Inspect spring seats and control arm bushings at each oil change

Specifications

Brand Trail Master
Part number TM3440-20013
UPC 614901082418
Lift height 4 inches
Lift height range 3 to 4.99 inches
Suspension type Short arm
Rear lift method Coil springs
Shocks NGS, included
Maximum tire size 33×12.50

Vehicle fitment

No vehicle is named for this kit and no fitment list is available. Check Trail Master specifications for the model and year before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

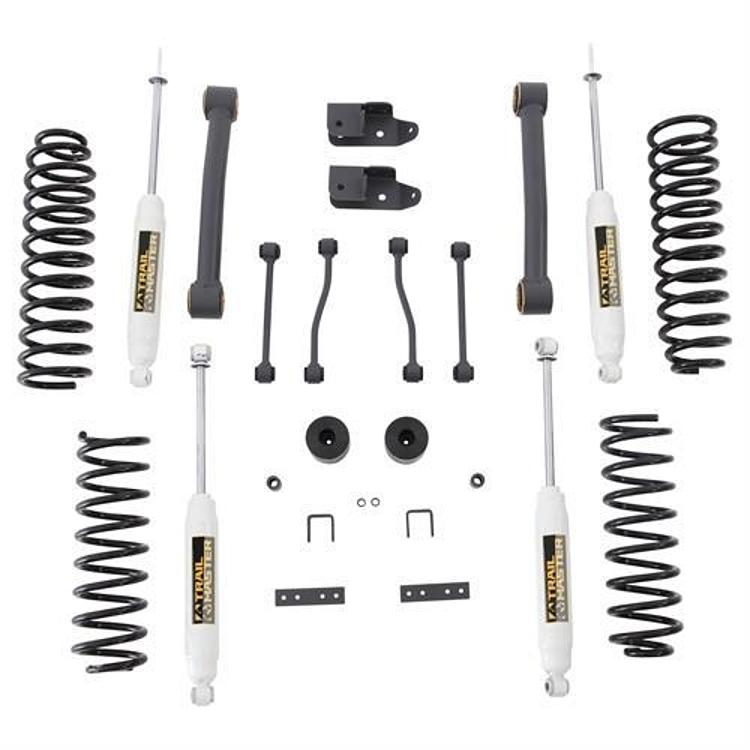

Front and rear coil springs, lower control arms, sway bar end links and NGS shocks.

SKU: T/MTM3440-20013 Category:

Specification

Shipping weight 112.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the TM3440-20013 include shocks?

Yes. NGS shocks are included with the coil spring kit, and they come in the package along with the springs and control arms.

How large a tire does the TM3440-20013 take?

The maximum tire size is 33x12.50. Check your wheel size and offset against that figure before choosing tires for the lifted height.

Does the TM3440-20013 include lower control arms?

Yes. The kit includes front and rear coil springs, lower control arms and sway bar end links. The short arm suspension is part of the kit.

How can you tell a coil spring lift is wearing out?

Look for a truck that sits lower on one side, uneven tire wear, or a clunk over bumps. Sagging springs lose height over time, and worn control arm bushings allow the wheels to shift. Inspect both at each service interval and replace parts that show damage.
