Overview
The Trail Master TM3820-40013 is a 2.0-inch leveling kit for the 1993 to 1998 Jeep Grand Cherokee (ZJ). It uses the factory springs, so the lift comes from the kit’s bump stop extensions and valved CGS shocks rather than from new springs. The kit is listed to allow clearance for a 30×9.5 tire.
The bump stop extensions limit how far the suspension can compress, which keeps the lifted vehicle from bottoming out. The installation is simple, and a lifetime warranty covers the kit. Coil spring spacers and polyurethane pieces make up the lift hardware. A track bar drop is not included.
Key features
- 2.0-inch lift that uses the factory springs
- Bump stop extensions to prevent over compression
- Specific valved CGS shocks included
- Allows clearance of a 30×9.5 tire
- Simple installation.
- Lifetime warranty
Using factory springs
A leveling kit that uses the factory springs starts from the existing spring height, so the result depends on how the springs sit now. Bump stop extensions limit how far the suspension can compress, which matters once the body sits higher. Valved shocks control damping at the new height, so the ride is set by the shock as much as by the lift.
Before work starts, look over the factory springs for sag, cracks and corrosion, because a tired spring will limit the lift. Check the axle and track bar mounts for wear, and inspect the brake lines and steering linkage for clearance. Replace shocks in pairs on the same axle so both sides ride the same.
- Inspect factory springs for sag or cracks
- Check brake lines for clearance at full droop
- Replace shocks in pairs on each axle
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM3820-40013 |
| UPC | 614901083590 |
| Lift height | 2.0 inches |
| Front lift method | Coil spring spacers |
| Rear lift method | Coil spring spacers |
| Shocks | Valved CGS shocks included |
| Bump stops | Extensions included |
| Track bar drop | Not included |
| Spacer material | Polyurethane |
| Finish | Black |
| Tire clearance | 30×9.5 tire |
Vehicle fitment
It fits the 1993 to 1998 Jeep Grand Cherokee (ZJ), including the 5.9 Limited, Base, Laredo, Limited, Orvis, SE and TSi trims.
The list covers the ZJ Grand Cherokee only, so the Cherokee XJ, the Wrangler and the WJ or WK Grand Cherokee models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bump stop extensions are part of the install and must be fitted with the valved CGS shocks. Because the kit uses the factory springs, the existing spring height sets the starting point, and the alignment should be checked when the job is finished.

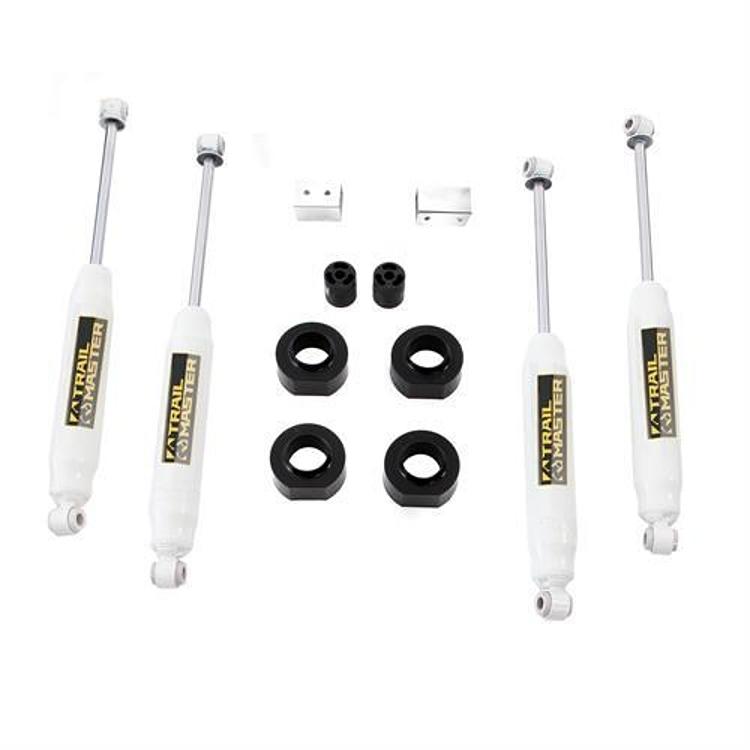

What’s included
Bump stop extensions, specific valved CGS shocks, and the polyurethane coil spring spacers.
Not included: a track bar drop.
