Trail Master 1.75 Inch Leveling Lift Kit – TM3317-40010

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 1.75-inch lift with front and rear coil spring spacers
  • Shock relocation brackets included
  • Polyurethane spacers in black
  • Fits 2007-2018 Jeep Wrangler JK Unlimited
  • Lifetime warranty

Description

Overview

The Trail Master TM3317-40010 is a 1.75-inch leveling lift that uses coil spring spacers at both the front and the rear. It includes shock relocation brackets, and the polyurethane spacers are black. It fits the 2007 to 2018 Jeep Wrangler JK, including the Unlimited, Rubicon and Sahara trims.

The front and rear lift both come from coil spring spacers, so this is a two-end lift rather than a front-only leveling kit. The track bar drop is not included, and the kit has no bump stops. A lifetime warranty covers the kit.

Key features

  • 1.75-inch lift at the front and rear
  • Front and rear coil spring spacers
  • Shock relocation brackets
  • Polyurethane spacers in black
  • Fits the Wrangler JK
  • Lifetime warranty

Shock relocation and travel

Raising both ends with coil spring spacers keeps the body level, but the shocks must still reach through their full range. The brackets that come with the kit move the shock mounts so the shocks keep their travel after the lift. Check the mounts for clearance against the frame and brake lines once everything is in place.

Because there are no bump stops with this kit, the suspension can bottom out harder on rough trail. Inspect the shock bodies and mounts for wear after the first outings. A two-end lift also changes driveline angles, so U-joints and the driveshaft are worth a look during the install.

  • Shock mount clearance checked at full travel
  • Driveline angles and U-joints inspected
  • Track bar length confirmed after the change

Specifications

Brand Trail Master
Part number TM3317-40010
UPC 614901081947
Lift height 1.75 inches
Front lift method Coil spring spacers
Rear lift method Coil spring spacers
Shock relocation brackets Included
Bump stops None
Track bar drop Not included
Spacer material Polyurethane
Finish Black

Vehicle fitment

It fits the 2007 to 2018 Jeep Wrangler (JK), including the Unlimited, Rubicon, Sahara and Sport trims and their anniversary editions.

The list covers only the JK, so Wrangler JL and TJ models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spring spacers raise the vehicle at the springs, and the shock relocation brackets move the shock mounts so the shocks keep their travel after the lift. A 1.75-inch lift changes alignment, so have it checked afterward.

The rear coil spring spacers raise the rear to match the front, so the kit works as a front and rear set.

What’s included

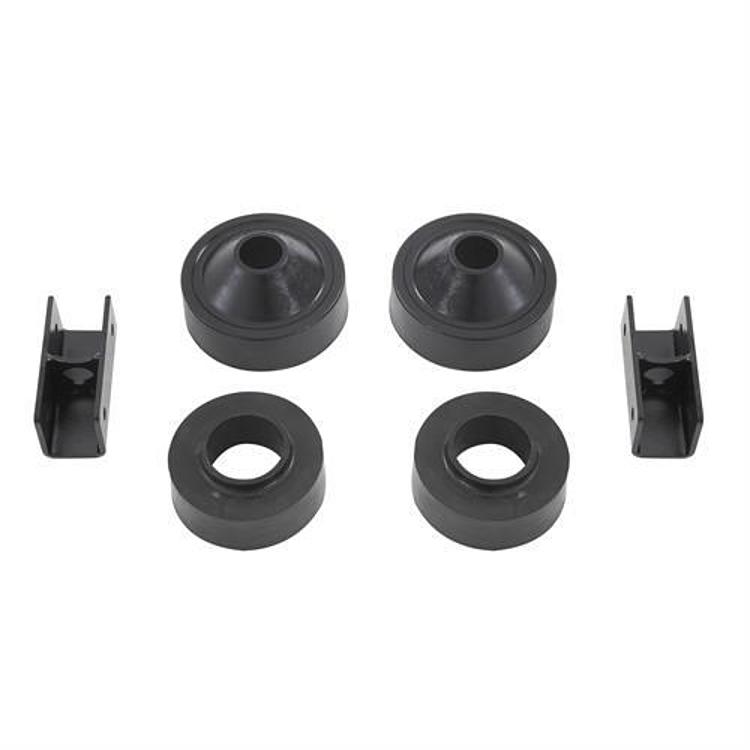

Front and rear coil spring spacers, shock relocation brackets, and polyurethane spacers in black.

Not included: a track bar drop.

SKU: T/MTM3317-40010 Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 8.00 × 6.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM3317-40010 fit a 2012 Jeep Wrangler JK?

Yes. It fits the 2007 to 2018 Wrangler JK, so a 2012 JK falls within that range. Confirm your vehicle's year, model and trim before ordering.

Does this kit lift the front and rear?

Yes. Both the front and the rear use coil spring spacers, and the kit lifts 1.75 inches. The rear is raised as well as the front.

Are shocks included with this kit?

The kit includes shock relocation brackets but no shocks are listed with it. Plan separate shocks that suit a 1.75-inch lift if your current ones are not long enough.

Does a two-end lift affect driveline angles?

Yes, it can. Raising the front and rear together keeps the relationship between the axles closer to the original, but the angles still change and should be checked. Inspect U-joints and the driveshaft after the install and again after the first few hard trips.
