Overview
The Rough Country 2.5″ – 3″ Leveling Lift Kit (part number R/C87001) is a front leveling kit for the 2007–2021 Toyota Tundra. It uses upper strut extensions and adjustable shim plates so the front can be set between 2.5 and 3 inches of lift, leveling it with the rear.
The adjustable shims let the owner set the front angle. Fewer shims leave a slight nose-down rake, which suits owners who pull trailers or haul loads that would otherwise raise the nose.
Key features
- Upper strut extensions for the front
- Adjustable shim plates for fine tuning the front lift
- Each shim adds about three-eighths of an inch of lift
- 1.5-inch rear lift blocks with U-bolts
- Allows tires up to 33 inches
- Bolt-on installation with no strut disassembly or compressor required
- Lifetime Replacement Warranty on components
Setting ride height
Front and rear lift are set separately on any leveling job, and the goal is a truck that sits level and handles normally. Raising the rear with blocks changes the driveline angle, and a front lift changes the upper control arm angle, so both ends should be checked after the height is chosen. Set the shims with the truck loaded the way it normally drives.
Adjustable shims give room to tune the stance, but changing ride height changes how the truck steers and brakes. Inspect the shocks, upper control arm bushings and tie rod ends before installing the kit, since older bushings wear faster under a higher ride. Check that the brake lines and the wiring have room to move at the new height.
Tire choice follows the lift. Larger tires need clearance at full steering lock and over the fender edges, so test turns after the install. Keep the stock tire and wheel specifications on hand when choosing a size.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C87001 |
| Front lift | 2.5 to 3 inches |
| Rear lift | 1.5-inch lift blocks with U-bolts |
| Shim plates | Two sets of 0.25-inch shims |
| Optional lifted struts | Non-adjustable, 3 inches of front lift |
| Maximum tire size | 33 inches |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits the 2007–2021 Toyota Tundra in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail models.
The kit does not fit Pro Series or XSP-X models. The 2000–2006 Tundra is not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the strut extensions and the rear blocks both change height, check the rear driveline angles after installation, and set the front alignment after the shims are chosen.
The strut extension setup needs no strut disassembly and no strut compressor, so the front installation is bolt-on work. The shim plates set the front height without cutting or modifying the struts.
The kit can be removed to return the truck to stock. Owners who want the full 3-inch front lift can use the optional lifted struts, which are non-adjustable and are separate from the adjustable setup.

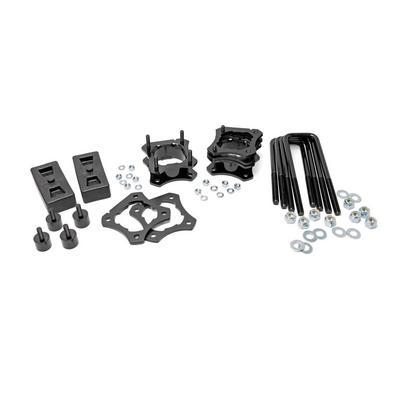

What’s included
Front upper strut extensions, two sets of shim plates, 1.5-inch rear lift blocks, U-bolts and hardware.
