Mountain Off Road Enterprises Tube End Inserts – TE12R

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mountain Off Road Enterprises TE12R tube end insert for custom tie rods, track bars, radius arms and link bars
  • 3/4 Inches – 16 right hand thread
  • Welds to steel tubing with a minimum tube ID of 7/8 Inches
  • Jam nut not included
  • Universal fit, with no vehicle named.

Description

Overview

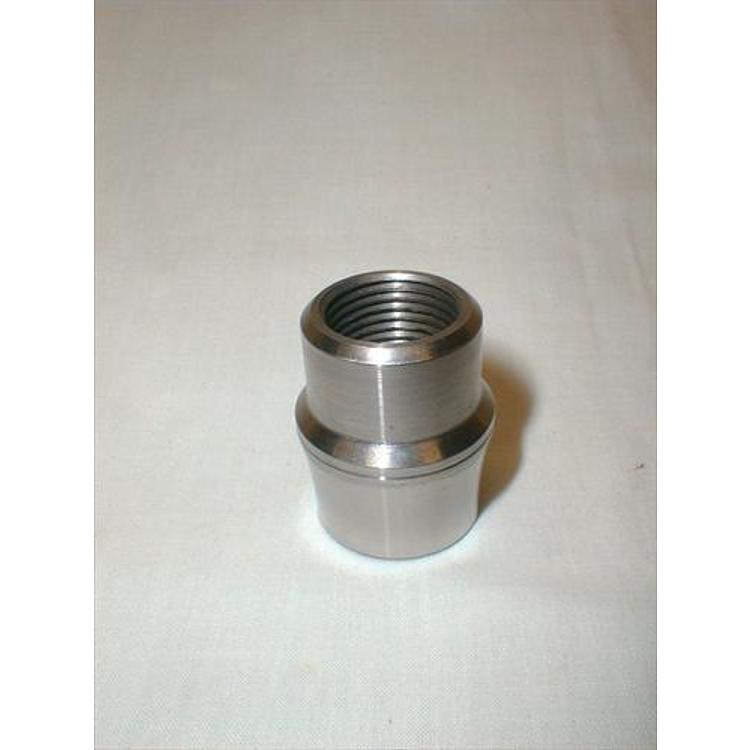

The Mountain Off Road Enterprises TE12R is a tube end insert, a threaded fitting that welds to steel tubing so you can build custom tie rods, track bars, radius arms or link bars without a lathe. It has 3/4 Inches – 16 right hand threads and needs steel tubing with a minimum tube ID of 7/8 Inches.

Mountain Off Road Enterprises says its tube ends cover the most popular sizes for builders making their own suspension links. The TE12R is not vehicle-specific; the manufacturer labels it Universal Fit, so match the thread and tube size to your project.

Key features

  • Threaded end for custom tie rod, track bar and link projects
  • Welds to steel tubing with a minimum tube ID of 7/8 Inches
  • Right hand thread, 3/4 Inches – 16
  • Made for fabricators who want threaded ends without a lathe
  • No jam nut included

Building the link safely

Tube end inserts turn a straight length of steel tubing into a link with a threaded end. Before cutting tubing, decide the finished length, the joint type and the jam nut position, because the threaded end needs to sit square in the tube. Clamp the insert in a jig so the thread axis lines up with the tube, and tack it in several places before running a full bead.

After welding, let the joint cool and check that the threads run clean with a mating jam nut or gauge. Weld distortion can close the threads slightly, so chase them with a tap if needed. Inspect the weld for cracks and undercut each time you service the link, since a cracked insert can let a rod end pull free under load. Store spare inserts in a dry place so the threads do not rust before use.

Specifications

Brand Mountain Off Road Enterprises
Part number TE12R
UPC 70000503388
Thread size 3/4 Inches – 16
Thread direction Right hand
Minimum tube ID 7/8 Inches
Jam nut included No
Fitment Universal Fit

Vehicle fitment

No vehicle fitment applies to this insert because it is a fabrication part for custom builds. Fit depends on the thread size and tubing ID, not on make, model or year.

Check that your tubing has at least a 7/8 Inches inside diameter and that the 3/4 Inches – 16 right hand thread suits your rod end before welding. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The TE12R is welded in, not bolted on. Weld it to steel tubing whose inside diameter is at least 7/8 Inches, and weld in a space with proper eye and fire protection.

What’s included

The tube end insert, part number TE12R.

Not included: Jam nut.

SKU: MRETE12R Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 5.00 × 5.00 × 5.00 in
brands

Questions & Answers

Is the Mountain Off Road Enterprises TE12R vehicle-specific?

No. It is universal fit, and no make, model or year applies to it. It is a tube end insert for building custom tie rods, track bars, radius arms and link bars, so check tube size and thread before buying.

What thread and tube size does the TE12R use?

It has a 3/4 Inches - 16 right hand thread and welds to steel tubing with a minimum tube ID of 7/8 Inches. Jam nuts are not supplied with the TE12R, so a matching jam nut is needed separately if your build uses one.

Does the TE12R bolt on or need welding?

It needs welding. The insert is made to weld to steel tubing, so it is a fabrication part rather than a bolt-on replacement. Use tubing with an inside diameter of at least 7/8 Inches.

How do I check a welded tube end for alignment?

Sight down the threaded end and compare it to the tube centerline before the weld cools. A jig that holds both pieces still during welding usually gives the most reliable result, and a mating jam nut confirms the thread is square.
