Trail Gear Rock Slider Kit (Bare Steel) – 120002-1-KIT

Trail Gear

Shop Trail Gear Rock Sliders And Guards on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear 120002-1-KIT: 67 in. long bare steel rock slider kit, sold as a pair
  • 1 3/4 in. OD x .120 wall 1035 DOM tubing
  • Six loose mounting legs, three per side
  • Welding required; unpainted and lightly oiled
  • Toyota rocker panel guard; confirm year, model and trim before ordering.

Description

Overview

The Trail Gear 120002-1-KIT is a 67 in. bare steel rock slider kit for Toyota rocker panel protection. Each slider is a tubular guard that takes rock strikes on the lower body, keeping the sheet metal beside the cab intact on rough trails. It is sold as a pair and needs welding for installation.

The sliders are built from 1 3/4 in. OD by .120 wall 1035 DOM tubing. Trail Gear says DOM steel resists splitting better than the cheaper HREW tubing some rivals use, and that the sliders can carry the full weight of the truck. A high-lift jack can be positioned anywhere along the slider to reposition the rig or lift it for repairs.

Key features

  • Tubular guard with tubular standoff
  • 1035 DOM tubing rather than HREW
  • Six loose mounting legs, three per side
  • Legs pre-notched on one side for trimming on the other
  • 11 1/4 in. legs allow the slider to be used as a step
  • Unpainted, lightly oiled bare steel

Choosing mounts and legs

Rock sliders absorb strikes that would otherwise reach the cab-side sheet metal, so their job is mostly protective. The tubing takes the scrapes, and the steel legs carry the load when the truck leans onto a rock. Choosing the right leg position matters, because a slider set too high misses the rock and one set too low can catch brush.

Using a jack on a slider puts load into the welds and mounts, so place the jack on a flat, solid section and keep the lift controlled. Trim only the unnotched leg side when the fit needs it, and grind cut edges smooth before painting to avoid snagging clothes or gloves.

  • Look for cracked welds after hard trail days
  • Check leg bolts and clamps before each trip
  • Keep a welder and spare grinding discs on hand

Specifications

Brand Trail Gear
Part number 120002-1-KIT
UPC 70000621342
Length 67 in.
Tubing 1 3/4 in. OD x .120 wall 1035 DOM
Finish Unpainted bare steel, lightly oiled
Mounting legs Six, three per side, 11 1/4 in. long
Installation type Welding required
Sold as Pair

Vehicle fitment

The kit is built for Toyota rocker panels. The 58 in. version uses the same six-leg layout, while the 78 in. version uses eight.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Plan on welding the mounts, since the legs are supplied loose and are not attached at the factory. Position the legs for your frame before making any welds, and trim the unnotched side only as needed. Eye protection and welding gloves are necessary while cutting and welding this steel.

What’s included

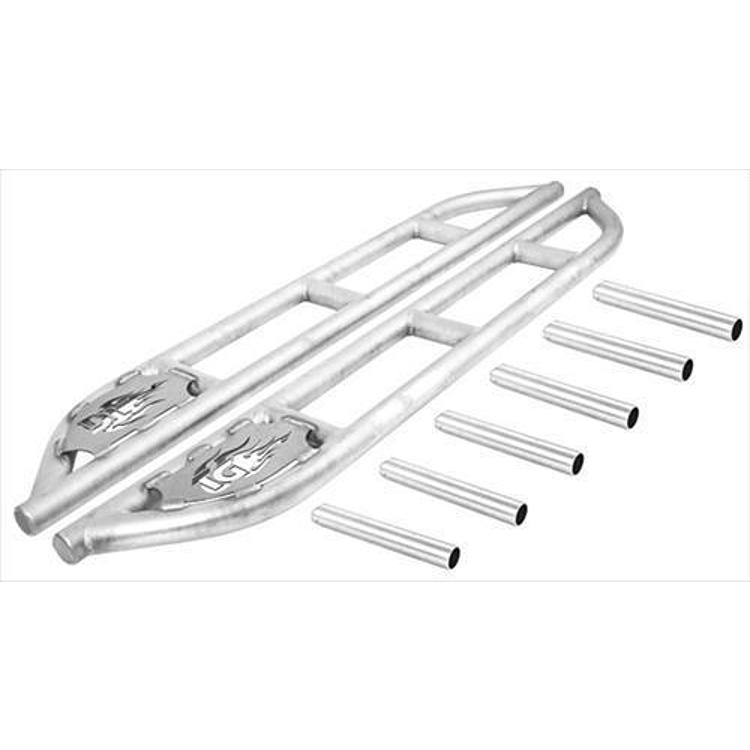

A pair of 67 in. rock sliders with six loose mounting legs, three per side.

Not included: Welding equipment, plus any frame plates or extra hardware needed to attach the sliders.

SKU: TGI120002-1-KIT Category:

Specification

Shipping weight 68.00 lbs
Package dimensions 68.00 × 8.00 × 4.00 in
brands

Questions & Answers

How long is the Trail Gear 120002-1-KIT?

It is 67 in. long. The kit is a pair of bare steel rock sliders made from 1 3/4 in. OD by .120 wall 1035 DOM tubing, and welding is required for installation. It ships unpainted and lightly oiled.

How many mounting legs are supplied with the 67 in. slider?

Six mounting legs, three per side, come with the 67 in. slider. The legs are 11 1/4 in. long, pre-notched on one side, and shipped loose so they can be placed in different positions.

Which vehicles fit this kit?

The kit is built for Toyota rocker panels, so confirm your year, model, trim and exact application before ordering, then check that the sliders suit your build.

Can the sliders be used as a step?

Yes. The 11 1/4 in. mounting legs let the sliders stick out far enough to be used as a step. The legs are loose, so set them for your frame before welding.

Can a rock slider be used as a jack point?

Use caution. A slider can carry a high-lift jack, but the load goes into the welds and mounts, so place the jack on a flat, solid section and keep the lift controlled. Inspect welds afterward.
