Overview

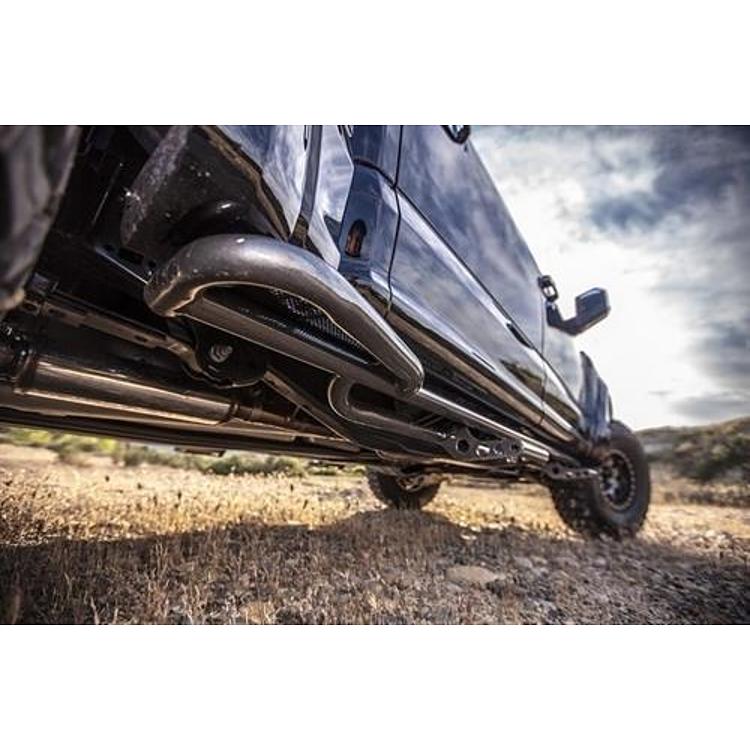

The Nfab F184RKRCCR is a set of textured black RKR rock rails for the 2017–2018 Ford F-150 Raptor SuperCrew. Rails like these mount under the cab doors to shield the body from rocks and trail obstacles. Nfab built this set as a non-modular, dual-bar welded assembly that fits tightly along the body and bolts into the truck’s pre-existing factory mounts.
The main tube is 1.75 inch in diameter, with standard textured black powder coating applied through a 3-stage powder coating process. An RKR Step System with detachable steps for each door is offered separately from these rails.
Key features
- Direct bolt-on installation using factory mounts
- Non-modular, dual-bar welded assembly
- 1.75 inch main tube diameter
- Fits tightly along the body
- Textured black powder coating through a 3-stage process
- 5-year finish warranty and lifetime workmanship warranty
Care and maintenance
Rock rails work by taking contact before the body does, so their most common job is absorbing scrapes from rocks and ledges. Over time the finish picks up small chips and scuffs. These are cosmetic at first, but bare metal can start to rust if left alone, so inspect the finish after each trip.
Inspect the mounting points each time you drive off road. Check the bolts that attach the rails to the factory mounts, and look at the mount surfaces for cracks or elongated holes. Retighten fasteners to the torque in your vehicle’s service information, and replace any worn hardware rather than reusing it.
Clean mud and salt off the rails with water, then dry them. Touch up chips with matching touch-up paint to keep the finish sealed. If a rail is bent or a weld has cracked, stop using the truck on rough ground until it is repaired, since a damaged rail can shift and affect nearby panels.
Specifications
| Brand | Nfab |
|---|---|
| Part number | F184RKRCCR |
| UPC | 843206111107 |
| Cab style | Super crew |
| Main tube diameter | 1.75 inch |
| Construction | Non-modular, dual-bar welded assembly |
| Finish | Textured black powder coating |
| Mounting | Direct bolt-on to pre-existing factory mounts |
| Fitment type | Direct fit |
| Warranty | 5-year finish; lifetime workmanship |
Vehicle fitment
It fits the 2017-2018 Ford F-150 Raptor in the SuperCrew cab.
Standard F-150 models and Extended Cab Raptors are not covered by this set. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rails bolt to the truck’s existing factory mounts. Check the package contents against your installation before starting.
What’s included
Rock rails for the Raptor SuperCrew. Check the package contents for hardware before starting the install.
Not included: the detachable steps offered as the RKR Step System, which are described separately.
